Can the SMC ZNC gripper handle delicate parts without marking them?

Yes, the SMC ZNC uses the Bernoulli principle to lift parts with only compressed air, creating no direct contact between the gripper and the workpiece. This eliminates surface marking and is especially effective for thin films, PCBs, and porous materials.

What materials can this vacuum gripper pick up?

The SMC ZNC is designed to handle cloth, films, printed circuit boards, bubble wrap, and other air-permeable or perforated parts safely. It works with materials where conventional contact grippers would cause damage or leave marks.

How much gripping force does the SMC ZNC Vacuum Gripper deliver?

The SMC ZNC delivers a maximum gripping force of 65 N across available diameter options ranging from 20 mm to 80 mm. The specific force depends on the diameter variant selected for your application.

What compressed air setup do I need for this gripper?

The SMC ZNC connects to any standard pneumatic system and requires only clean compressed air to operate. It includes multiple ports for air supply, release air, and pressure sensor connections for easy integration with existing automation setups.

What temperature range can the SMC ZNC operate in?

The SMC ZNC operates reliably in ambient temperatures up to 80 degrees Celsius. It is available in aluminum, resin, or stainless steel body materials to suit different environmental and chemical exposure conditions.

How heavy is this gripper and does it fit existing robotic systems?

The SMC ZNC weighs just 0.193 kg, making it lightweight for easy integration into existing pick-and-place setups and robotic arms. Its compact design works with standard pneumatic systems from SMC and other manufacturers.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockBernoulli Grip

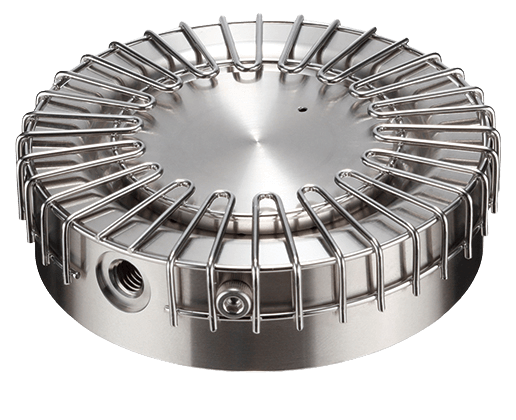

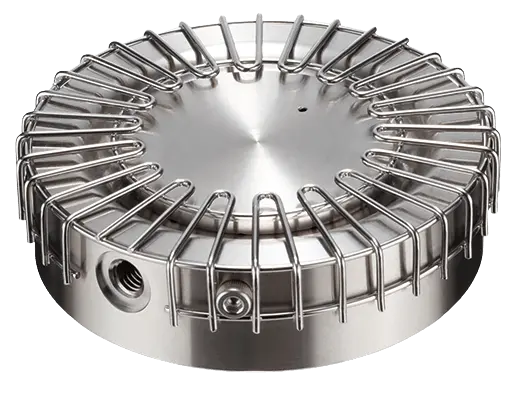

SMC ZNC Vacuum Gripper, Bernoulli, Non-contact, 65 N

Name: SMC ZNC Vacuum Gripper, Bernoulli, Non-contact, 65 N
Brand: SMC
SKU: 3176
Price: 895 USD
Availability: InStock

SMC

$895.00

SMC ZNC series pneumatic Bernoulli gripper delivers 65 N non-contact lifting force for delicate, thin, or porous materials. Prevents surface marking on cloth, films, PCBs, and perforated parts. Available in 20-80 mm diameters with aluminum, resin, or stainless steel bodies.

SMC ZNC Vacuum Gripper Overview:

SMC ZNC Vacuum Gripper is a pneumatic bernoulli-type non contact gripper designed for handling fragile or delicate workpieces in automation and manufacturing environments.

Key Features:

Maximum gripping force: 65 N
Available diameters: 20 mm to 80 mm
Weight: 0.193 kg
Ambient temperature rating: up to 80°C

Bernoulli Non Contact Principle:

Bernoulli vacuum grippers in the SMC ZNC series operate using compressed air. The gripper creates a controlled air flow to generate lifting force without direct contact. This minimizes risk of damage and contamination for thin or sensitive materials.

Material Compatibility:

SMC ZNC Vacuum Gripper is suitable for handling cloth, films, printed circuit boards, bubble wrap, and other air-permeable or perforated parts. Multiple body material options include aluminum, resin, and stainless steel for added compatibility with specific environments and requirements.

Design and Integration:

Multiple ports for air supply, release air, and pressure sensor connections
Optional stoppers or vibration-suppression covers for select variants
Easy integration with standard pneumatic systems from SMC and other manufacturers

Applications:

Ideal for electronics assembly, packaging, pick-and-place, and light-material handling where maintaining surface integrity is critical. Non contact gripping supports automation tasks needing gentle, non-marking lifts.

Comparison with Conventional Grippers:

Compared to traditional contact pneumatic grippers, the SMC ZNC series reduces risk of surface marking and is more effective for thin, porous, or unstable materials. The bernoulli design also mitigates static attraction and allows for smoother handling of fragile components.

Troubleshooting and Usage Tips:

Check air supply cleanliness for stable bernoulli performance
Adjust gap and mounting to reduce vibration on lightweight parts
Choose material variant to suit your ambient conditions and chemical exposure

Authority & Standards:

SMC ZNC Vacuum Gripper is manufactured by SMC, a global automation leader. Consult datasheets or SMC support for any certification or ISO compliance details specific to your application.

Weight0.193 kg

Max Gripping force65 N

Propulsion Method: Pneumatic
Max. ambient temperature: 80 ℃
Payload: 65 N
Diameter: 20 mm to 80 mm
Body Material: Aluminum
Resin
Stainless Steel
Operating temperature: up to 80°C

Lifts delicate parts without contact using Bernoulli principle, eliminates marking
Handles thin films, PCBs, and porous materials safely with air-only lifting
Connects to standard pneumatic systems, requires only clean compressed air
Delivers 65 N gripping force across 20 mm to 80 mm diameter options
Operates reliably up to 80 C ambient temperature
Choose aluminum, resin, or stainless steel body for your environment
Weighs just 0.193 kg, integrates easily into existing pick-and-place setups

: Yes, the SMC ZNC uses the Bernoulli principle to lift parts with only compressed air, creating no direct contact between the gripper and the workpiece. This eliminates surface marking and is especially effective for thin films, PCBs, and porous materials.
: The SMC ZNC is designed to handle cloth, films, printed circuit boards, bubble wrap, and other air-permeable or perforated parts safely. It works with materials where conventional contact grippers would cause damage or leave marks.
: The SMC ZNC delivers a maximum gripping force of 65 N across available diameter options ranging from 20 mm to 80 mm. The specific force depends on the diameter variant selected for your application.
: The SMC ZNC connects to any standard pneumatic system and requires only clean compressed air to operate. It includes multiple ports for air supply, release air, and pressure sensor connections for easy integration with existing automation setups.
: The SMC ZNC operates reliably in ambient temperatures up to 80 degrees Celsius. It is available in aluminum, resin, or stainless steel body materials to suit different environmental and chemical exposure conditions.
: The SMC ZNC weighs just 0.193 kg, making it lightweight for easy integration into existing pick-and-place setups and robotic arms. Its compact design works with standard pneumatic systems from SMC and other manufacturers.

Non-contact vacuum gripper versus mechanical contact grippers:

The SMC ZNC uses Bernoulli air-flow lifting instead of finger contact, eliminating surface marking and damage. Choose this when your parts are too delicate, thin, or porous for conventional pneumatic or magnetic grippers.

For thin films, PCBs, and bubble wrap that would crease or dent under finger pressure, the Bernoulli principle lifts with air alone and leaves no marks.
On porous or air-permeable materials where vacuum cups cannot seal, non-contact air flow succeeds where suction grippers fail.
In electronics assembly and light packaging lines running delicate components, the 65 N force handles typical pick-and-place speeds without harming product.
For cells tighter on footprint, the 0.193 kg lightweight mount frees payload and space compared to heavier parallel-jaw or magnetic alternatives.
On production lines already fitted with compressed-air systems, no new power source or control interface is needed, only clean air.
