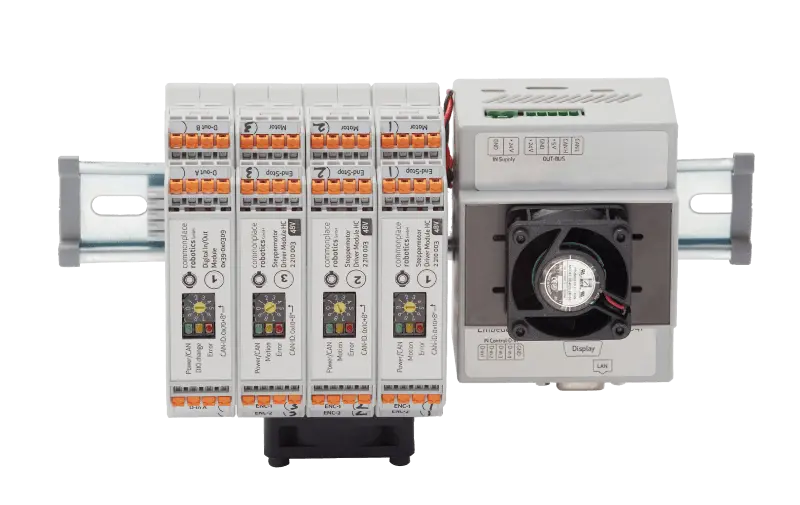

Commonplace Robotics DIN-Rail Robot Controller

Product Overview:

Commonplace Robotics DIN-Rail Robot Controller is an industrial robot controller designed for modular control of stepper motors and digital inputs and outputs in gantry and robotic automation, CNC machine setups, and precision motion applications.

Key Benefits:

• Modular DIN-rail design enables quick mounting, easy servicing, and expansion for flexible production environments.
• Microstepping support: 1/256 resolution delivers smoother motor movement for high-precision tasks.
• Efficient integration: Supports CPRog software for Windows 7/10, offering a 3D user interface for robot programming, simulation, and real-world control.
• Open development: Provides source code and ROS compatibility for custom solutions and robotics research.

Headline Specifications:

• Dimensions: 600x200x125 mm
• Power Requirement: 24V DC
• Microstepping: 1/256
• Software Compatibility: CPRog (Windows 7/10)

Main Features:

• Controller modularity with DIN-rail interface simplifies assembly and future upgrades in industrial settings.
• Integrated bus system connects DIN-rail modules for distributed stepper motor and input/output control.
• USB-to-CAN adapter links Windows PCs to controller modules for reliable communication.
• CPRog software delivers advanced programming options with joint moves, linear interpolation, digital output, loops, and conditional logic.
• Optional integration of computer vision via plugin modules.

Use Cases and Applications:

• Ideal for gantry robots and precise machine tending operations.
• Suited for palletising, pick-and-place, and CNC stepper-driven machinery in manufacturing, laboratory automation, and material handling.
• Available as a versatile stepper motor controller for modular robotics and custom control projects.

Comparative Context:

Compared to fixed-enclosure CNC controllers and traditional industrial robot controllers, the DIN-rail modular format of Commonplace Robotics DIN-Rail Robot Controller provides easier scalability, reduced downtime, and a compact footprint for crowded shop floors. The system is CPRog compatible for Windows-based programming, positioning it as a programmable controller solution for both standard and custom automation requirements.

Assembly & Shipping Notice:

The Commonplace Robotics DIN-Rail Robot Controller ships without cables or assembly. Buyers should ensure all accessories and installation steps are planned accordingly.
