What is a robotic tool changer?

A robotic tool changer is a device that allows quick exchange of tools or end effectors on a robot arm or stationary fixture. The SCHUNK CMS 050 is a manual tool changer that enables frequent tool swaps without requiring automatic actuators, making it cost-effective for high-mix production cells.

Can the SCHUNK CMS 050 be mounted on a robot or a stationary fixture?

The CMS 050 mounts on robots or stationary fixtures without modification. Its lightweight design at 0.27 kg minimizes arm load penalty when robot-mounted.

What payload does the SCHUNK CMS 050 support?

The CMS 050 supports an 11 kg payload capacity and handles 900 N axial force rated for Fz direction.

Does the SCHUNK CMS 050 work with pneumatic and hydraulic lines?

Yes, the CMS 050 routes up to 6 fluid feed-throughs that support both pneumatic and hydraulic line connections during tool changes.

Is piston stroke monitoring included with the SCHUNK CMS 050?

Piston stroke monitoring is available as an optional upgrade and is not included as standard.

Why choose a manual tool changer over an automatic one?

Manual tool changers like the CMS 050 offer lower cost and complexity than automatic systems while reducing setup time, making them suitable for applications where frequent automatic exchanges are not necessary.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockManual Tool Changer

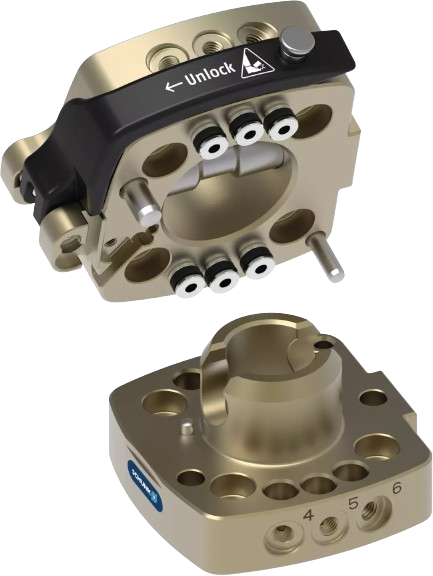

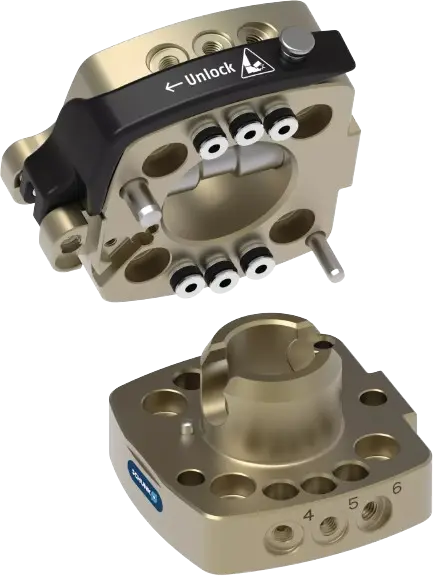

SCHUNK CMS 050 Manual Tool Changer, 11 kg

Name: SCHUNK CMS 050 Manual Tool Changer, 11 kg
Brand: SCHUNK
SKU: 3293
Price: 1995 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$1,995.00

SCHUNK CMS 050 manual tool changer for robot and stationary mounting, 11 kg payload, 900 N axial force, supports 6 fluid feed-throughs, 0.27 kg.

The SCHUNK CMS 050 manual tool changer is an industrial robotics accessory for robot-mounted and stationary setups, engineered for flexible tool exchange in assembly and manufacturing environments.

Specifications:

Payload capacity: 11 kg
Changer weight: 0.27 kg
Axial force (Fz): 900 N
Interface: Supports up to 6 fluid feed-throughs for pneumatic or hydraulic line routing

Applications:

Ideal for industrial robotics tasks requiring frequent manual tool changes
Suitable for robot-mounted tool changer installations in high-mix production cells
Used in assembly operations and manufacturing where cost or complexity of automatic systems is not warranted

Optional Features:

Piston stroke monitoring option available for enhanced operational oversight

Variants and Part Numbers:

Part number 1545289: CMS 050 variant for standard robotic mounting
Part number 1545310: CMS 050 variant with alternate interface or options

Comparative Advantages vs Automatic Changers:

Lower complexity and installation cost compared to pneumatic tool changers or fully automatic systems
Reduces maintenance requirements in environments where frequent tool swaps are manual

Attribute Overview:

Manual operation allows for quick tool changes without actuators
Installation is straightforward in both stationary and robotic mounting scenarios

Frequently Asked Questions:

What payload does the SCHUNK CMS 050 support? Up to 11 kg.
What is fluid feed-through? Multiple feed-throughs enable reliable pneumatic or hydraulic line connection during tool changes.
Is piston stroke monitoring standard? It is available as an option.

Weight0.27 kg

Payload11 kg

Axial Force: 900 N
Fluid Feed-throughs: 6
Model: CMS 050

Quick manual exchanges, 11 kg payload, compatible with extensive SCHUNK portfolio
Mounts on robots or stationary fixtures without modification
Routes 6 fluid feed-throughs for pneumatic and hydraulic lines
Handles 900 N axial force, Fz rated
Piston stroke monitoring available as optional upgrade
Weighs only 0.27 kg, minimal arm load penalty
Lower cost and complexity than automatic changers, reduces setup time

: A robotic tool changer is a device that allows quick exchange of tools or end effectors on a robot arm or stationary fixture. The SCHUNK CMS 050 is a manual tool changer that enables frequent tool swaps without requiring automatic actuators, making it cost-effective for high-mix production cells.
: The CMS 050 mounts on robots or stationary fixtures without modification. Its lightweight design at 0.27 kg minimizes arm load penalty when robot-mounted.
: The CMS 050 supports an 11 kg payload capacity and handles 900 N axial force rated for Fz direction.
: Yes, the CMS 050 routes up to 6 fluid feed-throughs that support both pneumatic and hydraulic line connections during tool changes.
: Piston stroke monitoring is available as an optional upgrade and is not included as standard.
: Manual tool changers like the CMS 050 offer lower cost and complexity than automatic systems while reducing setup time, making them suitable for applications where frequent automatic exchanges are not necessary.

Manual vs automatic tool changers:

The SCHUNK CMS 050 is a manual tool changer, meaning operators or robots perform the exchange by hand rather than triggering an automated pneumatic or electric swap. Choose this when setup simplicity and lower cost matter more than hands-free changeover speed.

For high-mix cells with infrequent tool swaps, manual operation eliminates the expense and complexity of powered actuation while holding 11 kg payloads securely.
On shared robot arms where payload is tight, the 0.27 kg changer weight preserves capacity for end effectors and workpieces compared to heavier automatic alternatives.
In stationary fixture setups or offline tool staging, manual exchange avoids the need for pneumatic or electric infrastructure and reduces maintenance touchpoints.
Six fluid feed-throughs route pneumatic or hydraulic lines through the changer, so tools remain connected during exchange without manual hose disconnection.
On collaborative or flexible lines where tool changes happen at operator stations rather than on-cycle, manual exchange keeps system cost low without sacrificing the 900 N axial force rating needed for precision tasks.
