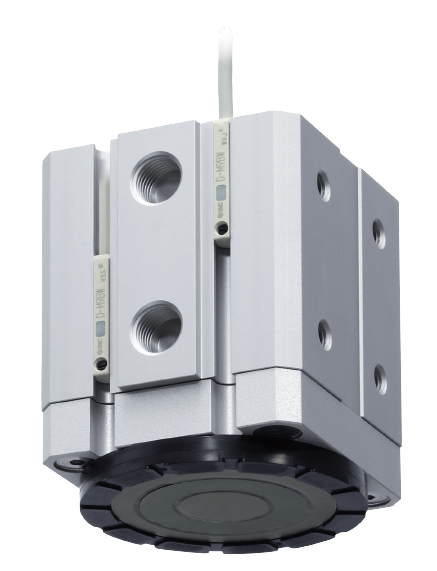

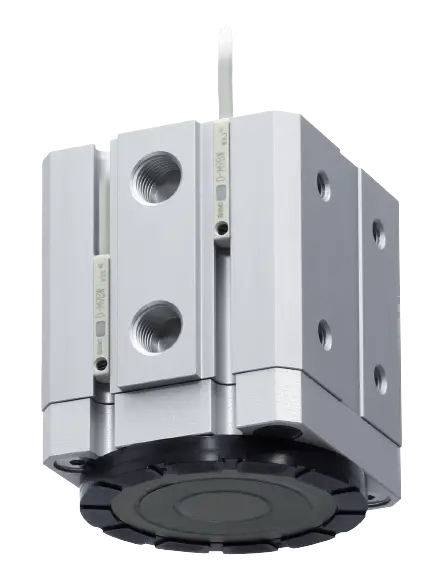

SMC Pneumatic Magnetic Gripper, 50 N

SMC Pneumatic Magnetic Gripper is an industrial robotic end effector engineered for reliably handling ferromagnetic workpieces in automation and assembly applications.

Key Specifications:

• Gripping force: 50 N
• Weight: 0.104 kg
• Operating temperature: Up to 60°C
• Mounting: Compact design for robotic end-of-arm tooling interface

Applications:

• Ferromagnetic part handling in automated workpiece pick-and-place systems
• Sheet metal transfer and assembly where vacuum gripping is ineffective
• Industrial robot gripper solutions for parts with perforations or irregular surfaces
• SMC gripper for material handling on robotics from the SMC product portfolio

Technical Features:

• Pneumatic air supply required for release function
• Magnetic actuation enabled by electrical connection
• Multiple port setup supports sensor integration and blow-off operation

Comparison to Alternative Gripping Methods:

Unlike vacuum grippers, SMC Pneumatic Magnetic Gripper 50 N ensures secure holding of ferromagnetic workpieces that feature surface perforations or irregular geometry. For non-metallic parts or applications requiring non-contact handling, alternatives such as vacuum grippers and pneumatic tools may be more suitable.

Certifications and Industry Compliance:

SMC Pneumatic Magnetic Gripper is engineered to meet international standards for robotic end effectors and offers CE marking where applicable. For detailed certification information, refer to the manufacturer's documentation in the SMC End Effectors & Tooling series.

Frequently Asked Questions:

• What is a pneumatic magnetic gripper? A pneumatic magnetic gripper uses compressed air and electric actuation to securely hold ferromagnetic workpieces during robot-assisted operations.
• How much force does SMC magnetic gripper 50N provide? The device delivers up to 50 N of gripping force for reliable workpiece handling.
• Where should SMC Pneumatic Magnetic Gripper be used? Ideal for robotic systems requiring precise handling of sheet metal and assembly components where traditional vacuum gripping is not possible.
• Is the SMC gripper suitable for end-of-arm tooling? Yes, its compact and lightweight design supports seamless integration onto industrial robot arms and work cell tooling platforms.
