What is the SMC Pneumatic Magnetic Gripper 1000 N used for?

The SMC Pneumatic Magnetic Gripper 1000 N handles ferromagnetic parts in pick-and-place, bin picking, and assembly tasks, particularly where vacuum grippers cannot work on perforated or uneven sheet metal. It grips ferrous materials securely with 1000 N of holding force without mechanical jaw wear.

What robots is this magnetic gripper compatible with?

The gripper is compatible with a variety of industrial robot platforms, including collaborative systems. Multiple port options support sensor integration across different robotic platforms.

How much does the SMC magnetic gripper weigh?

The gripper weighs 1.11 kg, which is lightweight enough to mount easily on collaborative and industrial robots without adding significant payload burden.

What temperature can this gripper operate in?

The SMC Pneumatic Magnetic Gripper 1000 N operates reliably at ambient temperatures up to 60°C.

How much gripping force does this magnetic gripper have?

This gripper delivers 1000 N of magnetic holding force to secure ferrous workpieces reliably during automated handling and assembly operations.

Does this gripper need a vacuum pump?

No. The gripper uses a single pneumatic supply with electrical connection for magnetic actuation and release, so it does not require a vacuum system like suction-based grippers.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock800N Grip

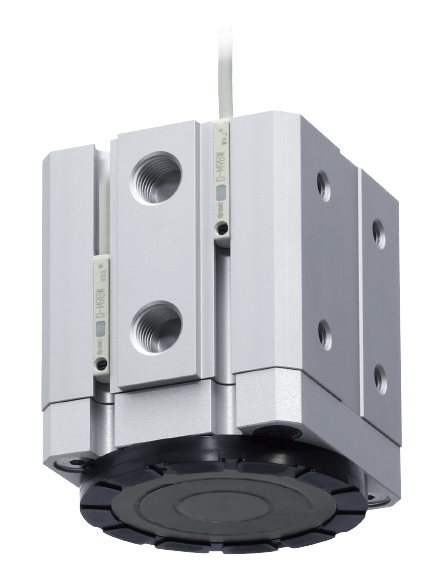

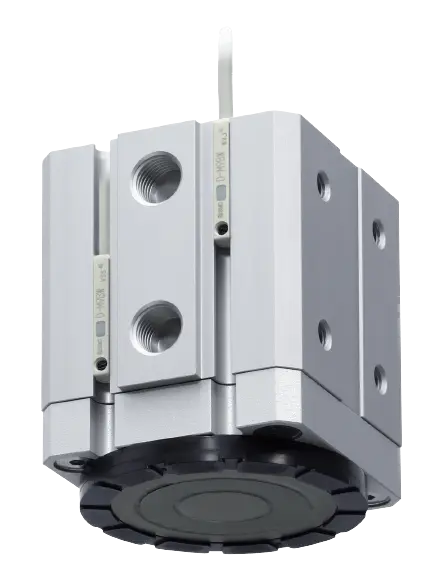

SMC Pneumatic Magnetic Gripper, 1000 N

Name: SMC Pneumatic Magnetic Gripper, 1000 N
Brand: SMC
SKU: 3180
Price: 995 USD
Availability: InStock

SMC

$995.00

SMC pneumatic magnetic gripper delivering 1,000 N grip force for ferromagnetic workpieces. Pneumatic release, electric magnetic actuation, 1.11 kg. Ideal for sheet metal, bin picking, and assembly where vacuum is impractical. Rated to 60°C, compatible with collaborative robots.

SMC Pneumatic Magnetic Gripper, 1000 N is an industrial robot end effector designed for automated handling of ferromagnetic parts in manufacturing and assembly environments.

Key Features:

Delivers up to 1,000 N gripping force for secure retention of metal workpieces
1.11 kg weight supports easy robot mounting
Single pneumatic supply with electrical connection for magnetic actuation
Rated for ambient temperatures up to 60°C

Applications:

Handling perforated or uneven sheet metal
Parts assembly where vacuum grippers are unsuitable
Bin picking in automated lines
Robotic pick-and-place of ferrous materials

SMC Pneumatic Magnetic Gripper, 1000 N is compatible with a variety of industrial robot platforms, including collaborative systems. Integration options include multiple ports for sensor add-ons or blow-off functions. The magnetic gripper is engineered to address applications where standard suction or mechanical gripping fails, enhancing automation reliability and flexibility.

Manufacturer Credentials and Quality:

SMC is a globally recognized manufacturer of pneumatic grippers and automation components. Products are designed to meet industry standards for safety and quality. Refer to SMC documentation for certification details and compliance information when integrating this gripper into ISO-compliant systems.

Frequently Asked Questions:

What temperature range can it operate in? Up to 60°C ambient.
What is the maximum gripping force? 1,000 N.
Which robot platforms are compatible? Integration is supported with various industrial and collaborative robots.

Weight1.11 kg

Max Gripping force000 N / 1

Propulsion Method: Pneumatic
Max. ambient temperature: 60 ℃
Payload: 1000 N
Operating temperature: up to 60°C
Actuation: Pneumatic
Power Requirements: Electrical

Grips ferrous parts securely with 1000 N magnetic holding force
Single pneumatic supply and electrical connection streamline actuation and release
Multiple port options support sensor integration or blow-off functions across robotic platforms
Compact 1.11 kg design mounts easily to collaborative and industrial robots
Handles perforated or uneven sheet metal where vacuum grippers fall short
Operates reliably in ambient temperatures up to 60°C
Pick-and-place ferrous materials from bins without mechanical jaw wear
Magnetic actuation requires electrical connection.

: The SMC Pneumatic Magnetic Gripper 1000 N handles ferromagnetic parts in pick-and-place, bin picking, and assembly tasks, particularly where vacuum grippers cannot work on perforated or uneven sheet metal. It grips ferrous materials securely with 1000 N of holding force without mechanical jaw wear.
: The gripper is compatible with a variety of industrial robot platforms, including collaborative systems. Multiple port options support sensor integration across different robotic platforms.
: The gripper weighs 1.11 kg, which is lightweight enough to mount easily on collaborative and industrial robots without adding significant payload burden.
: The SMC Pneumatic Magnetic Gripper 1000 N operates reliably at ambient temperatures up to 60°C.
: This gripper delivers 1000 N of magnetic holding force to secure ferrous workpieces reliably during automated handling and assembly operations.
: No. The gripper uses a single pneumatic supply with electrical connection for magnetic actuation and release, so it does not require a vacuum system like suction-based grippers.

Magnetic gripper vs vacuum and mechanical grippers:

Choose this magnetic gripper when handling ferrous parts where vacuum or finger grippers are ineffective. It delivers 1000 N holding force without mechanical wear and works on perforated, uneven, or oily sheet metal that would defeat suction.

For perforated or textured ferrous sheet metal, magnetic grip succeeds where vacuum grippers cannot seal.
Bin picking of loose steel parts requires no part orientation, only ferrous material contact.
At 1.11 kg, the compact design fits collaborative and industrial robot wrists with payload headroom for additional tooling.
Single pneumatic supply with electrical actuation simplifies robot cell integration and sensor port options.
Reliable operation to 60°C ambient temperature suits shop-floor and outdoor assembly environments.
No jaw maintenance or mechanical wear reduces downtime compared to finger or parallel grippers on high-cycle ferrous pick-and-place.
