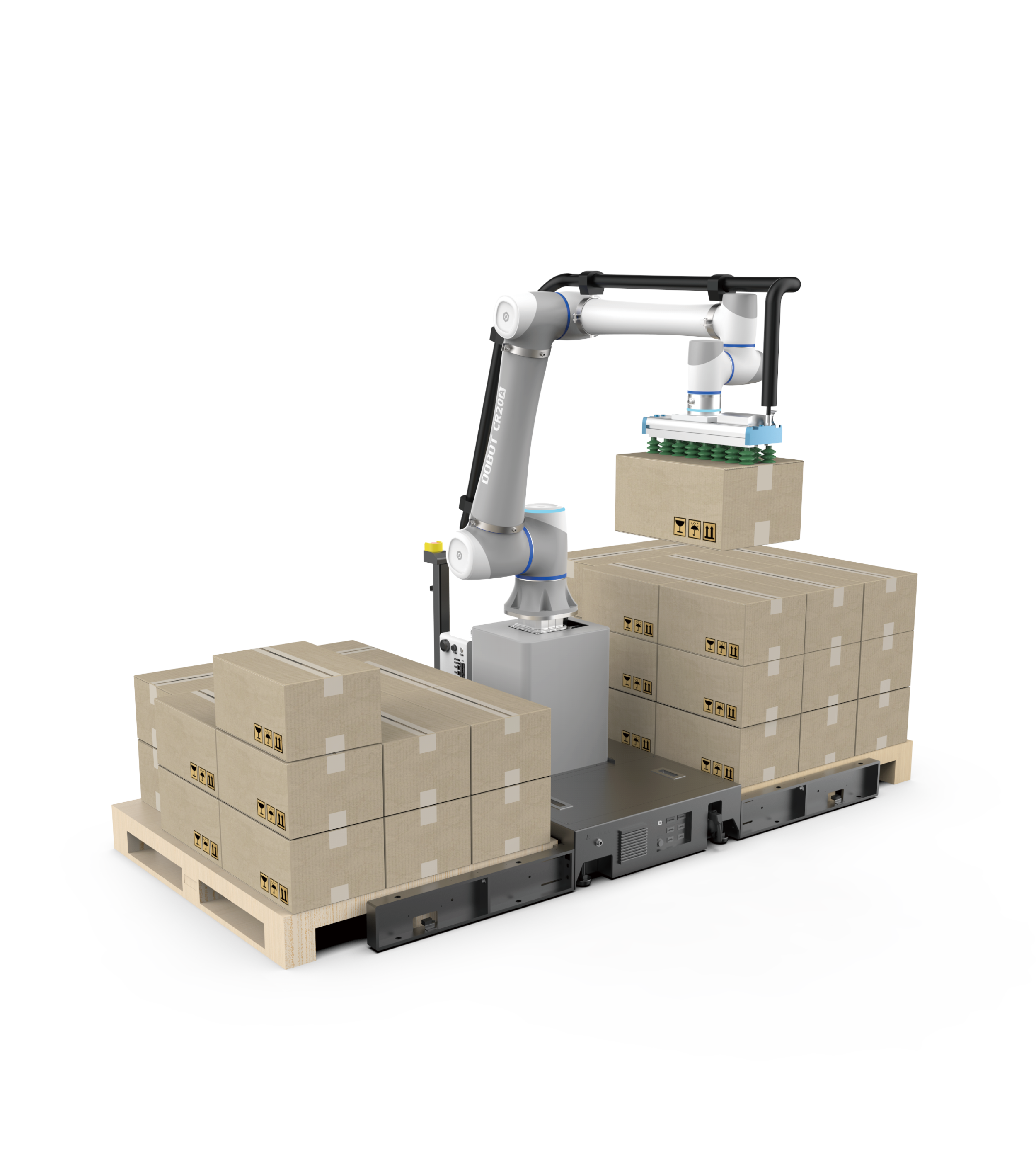

Dobot CR20A Palletizing Robot, 20 kg, 2100 mm

Overview:

Dobot CR20A Palletizing Robot is an industrial automated palletizer designed for high-volume stacking applications in manufacturing and packaging, supporting payloads up to 20 kg and reach of 1,300 mm for sectors such as electronics, healthcare, food, and beverage.

Specifications:

• Payload: 20 kg
• Maximum stacking height: 2,100 mm
• Working radius: 1,300 mm
• Usable footprint: 1,350 mm x 2,220 mm
• Operating speed: 8–13 pieces per minute
• Position repeatability: 0.3 mm

The Dobot CR20A enables efficient palletizing in restricted spaces, with a working radius indicating the arm’s reach for handling products, while the usable footprint reflects the combined area required for robot movement and pallet placement.

Applications:

• Palletizing solutions for end-of-line automation
• Pick-and-place tasks in 3C electronics manufacturing
• Packaging for healthcare, food, and beverage

Adaptable to different production lines, the CR20A supports rapid reconfiguration to suit changing throughput and workflow requirements. For other Dobot palletizing solutions or related accessories, visit our palletizing solutions category or see other Dobot robots.

Performance Metrics:

• Continuous operation supports up to 13 pieces per minute
• Repeatable accuracy within 0.3 mm guarantees precise stacking
• Stacks products to a height of 2,100 mm without exceeding payload capacity

Selection Criteria:

Choose the Dobot CR20A when palletizing tasks require consistent throughput, payloads up to 20 kg, and stacking heights below 2,100 mm. Consider part shape, cycle time, and facility layout before integrating. Ensure compatibility with your required workspace and automated systems. Refer to headline specifications for application suitability. The CR20A is ideal where flexible, modular palletizing solutions increase operational efficiency.
