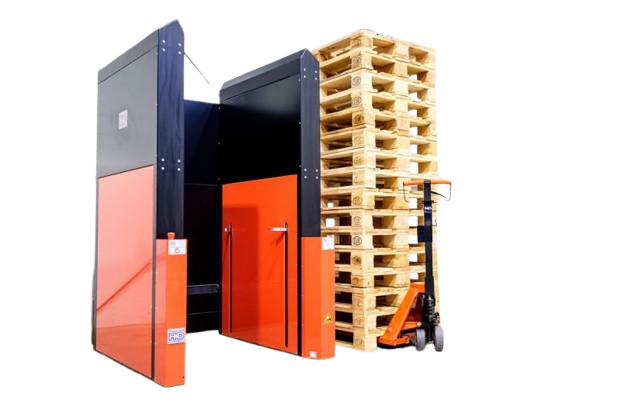

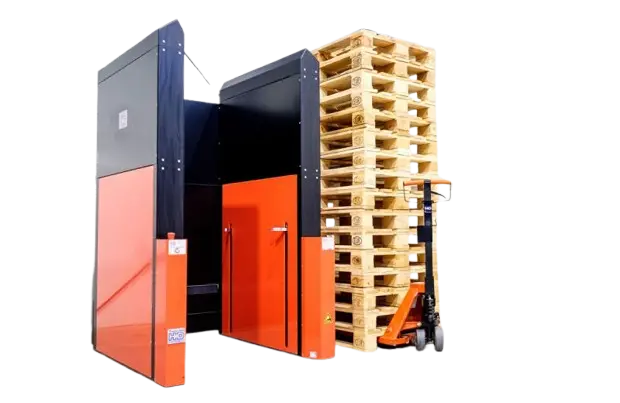

This automatic pallet magazine from Hagenauer-Denk provides mechanical storage and handling for up to 24 pallets measuring up to 1200x800x150 mm in length, width, and height.
The unit supports a payload of 224 kg and weighs 197 kg.
It operates in two modes: destacking mode positions the bottom pallet for removal, while stacking mode accepts and automatically stacks empty pallets.
Loading can be performed using standard forklifts or manual pallet trucks.
The system eliminates manual pallet lifting, reducing the physical demand on operators and minimizing the risk of pallet damage during handling.
By consolidating pallet storage vertically, the magazine reduces the floor space required for pallet staging in manufacturing and warehouse environments.
The automated operation streamlines material flow in facilities where palletized parts or assemblies move through multiple workstations or storage locations.
