What pallet sizes does the Hagenauer-Denk Automatic Pallet Storage Rack fit?

The Hagenauer-Denk Automatic Pallet Storage Rack handles 1200 x 800 x 150 mm Euro pallets. Each pallet can carry a payload of up to 210 kg.

How many pallets can this automatic rack store?

The system stores up to 24 Euro pallets vertically, which reclaims significant floor space compared to horizontal stacking. Pallets are automatically dispensed from the bottom or stacked seamlessly as empty pallets arrive.

Do I need special equipment to load and unload the Hagenauer-Denk rack?

No special equipment is required. The rack works with standard forklifts and pallet trucks for loading and unloading, so it integrates easily with common warehouse equipment.

What are the benefits of an automatic pallet storage system?

An automatic pallet storage system eliminates manual pallet lifting, reduces operator strain and injury risk, minimizes pallet damage, and consolidates storage vertically to free up warehouse floor space. The Hagenauer-Denk unit streamlines workflow in production cells and staging areas.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock24-Pallet Capacity

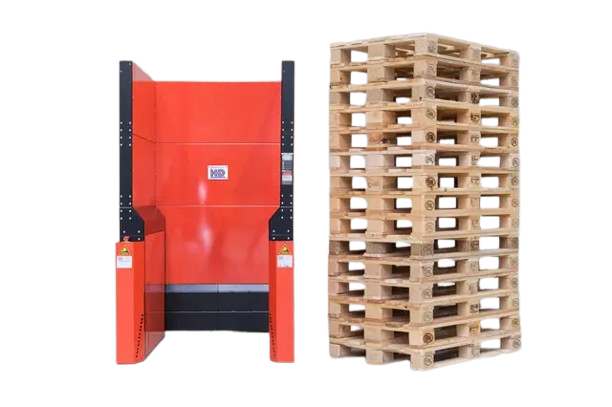

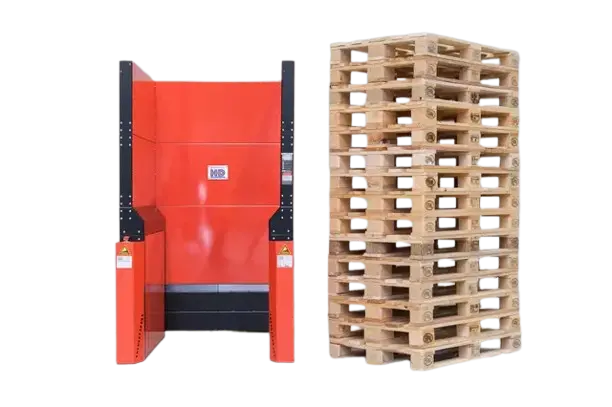

Hagenauer-Denk Automatic Pallet Storage Rack, 24-Pallet

Name: Hagenauer-Denk Automatic Pallet Storage Rack, 24-Pallet
Brand: Hagenauer-Denk
SKU: 3654
Price: 19800 USD
Availability: InStock

Hagenauer + Denk KG

$19,800.00

Hagenauer-Denk automatic pallet magazine stores and dispenses up to 24 pallets (1200x800x150 mm, 210 kg payload). Automated destacking lowers the bottom pallet for pickup; stacking mode loads empty pallets vertically. Forklift or pallet truck compatible. Saves warehouse floor space and reduces manual pallet handling risk in manufacturing and machine shops.

The Hagenauer-Denk Automatic Pallet Storage Rack is a vertical pallet storage system designed for machine shops and manufacturing facilities seeking to automate the handling, dispensing, and storage of up to 24 Euro pallets.

Key Features and Specifications:

Automatic stacker and dispenser for up to 24 pallets
Pallet dimensions supported: 1200 x 800 x 150 mm
Payload: 210 kg per pallet
Unit weight: 520 kg

How the Hagenauer-Denk Automatic Pallet Storage Rack Works:

The system operates as both a pallet dispenser and a vertical pallet magazine. In destacking mode, the bottom pallet is positioned for easy removal, while stacking mode allows the rack to automatically stack incoming empty pallets.

Loading and unloading can be accomplished via forklift or manual pallet truck for seamless integration with common pallet handling equipment.

What Problems Does the Pallet Storage Unit Solve?

Reduces manual lifting and handling of heavy pallets
Minimizes the risk of pallet damage and workplace injuries
Consolidates pallet staging vertically, freeing up warehouse floor space
Streamlines workflow for production cells and staging areas

Applications and Compatibility:

This automated pallet storage rack suits standard Euro pallet storage solutions and is ideal for any facility aiming to optimize automatic pallet loading and pallet storage management. The unit integrates with other material handling equipment such as forklifts, pallet trucks, and transfer systems used for pallet storage and transfer.

Weight520 kg

Payload210 kg

Pallet Dimensions: 1200 mm x 800 mm x 150 mm
Pallet Capacity: 24 pallets
Loading Method: Forklift, Manual Pallet Truck
Operation Modes: Destacking, Stacking

Eliminates manual pallet lifting, reduces operator strain
Stores up to 24 Euro pallets vertically, reclaims floor space
Handles 1200 x 800 x 150 mm pallets, 210 kg payload each
Auto-dispenses from bottom or stacks incoming empties seamlessly
Works with forklifts and pallet trucks, no special equipment needed
Protects pallets and workers, minimizes damage and injury risk

: The Hagenauer-Denk Automatic Pallet Storage Rack handles 1200 x 800 x 150 mm Euro pallets. Each pallet can carry a payload of up to 210 kg.
: The system stores up to 24 Euro pallets vertically, which reclaims significant floor space compared to horizontal stacking. Pallets are automatically dispensed from the bottom or stacked seamlessly as empty pallets arrive.
: No special equipment is required. The rack works with standard forklifts and pallet trucks for loading and unloading, so it integrates easily with common warehouse equipment.
: An automatic pallet storage system eliminates manual pallet lifting, reduces operator strain and injury risk, minimizes pallet damage, and consolidates storage vertically to free up warehouse floor space. The Hagenauer-Denk unit streamlines workflow in production cells and staging areas.
: The unit itself weighs 520 kg and is designed for machine shops and manufacturing facilities seeking to automate pallet handling and storage.

Automatic vertical storage versus manual pallet staging:

The Hagenauer-Denk Automatic Pallet Storage Rack stores up to 24 Euro pallets vertically and auto-dispenses from the bottom, eliminating manual lifting and reclaiming floor space. It contrasts with manual pallet staging areas that consume space horizontally and require repetitive heavy handling.

For production cells with limited floor space, vertical stacking of 24 pallets (at 210 kg each) reclaims the area needed for tooling or assembly work.
On high-throughput lines where pallets cycle frequently, automatic bottom dispensing reduces operator strain and minimizes pallet damage versus hand stacking.
In facilities already using forklifts or pallet trucks, the system integrates without special equipment, using standard handling workflows.
For mixed empty and loaded pallet management, the dual stacking and destacking modes handle incoming empties seamlessly while keeping full pallets accessible.
