Can the AGS Automation 4-SG mount directly to my robot?

The 4-SG mounts via a standard drilling pattern directly to your robot's flange, with a complete base plate included. No adapter plate or special mounting hardware is required.

How does the 4-SG vacuum gripper handle parts of different heights?

Each of the four spring-loaded suction cups provides independent surface compensation, automatically absorbing height variations and reducing part damage during pickup. The spring-loaded arms adapt to uneven surfaces on their own.

What is the weight of the AGS Automation 4-SG gripper?

The 4-SG weighs only 0.66 kg, making it lightweight and easy to integrate without adding significant load to your robot arm.

How do I set up the 4-SG for different part shapes?

The suction cup positions are adjustable, allowing you to quickly reconfigure the gripper for varying part geometries without tools or extensive downtime. Four contact points provide maximum stability across lightweight, flat, and gently curved surfaces.

Does the 4-SG come with pneumatic fittings?

Yes, the 4-SG is supplied complete with all pneumatic fittings, so you can connect it directly to your pneumatic system without purchasing additional components.

What applications is the AGS Automation 4-SG best for?

The 4-SG is engineered for electronics assembly, automotive parts, and medical device manufacturing, handling small components in pick-and-place and machine tending tasks where damage-free handling is critical.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPrecise Handling

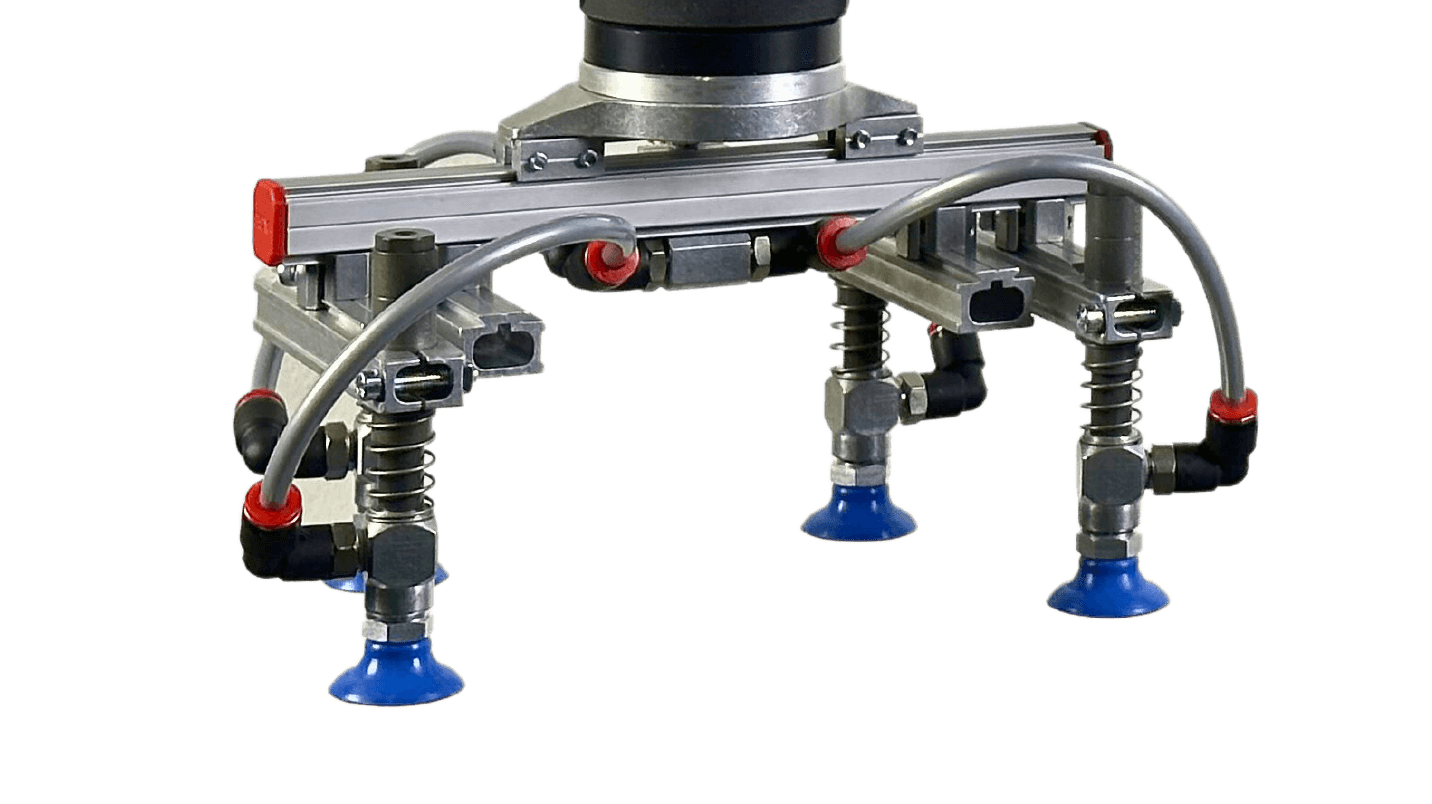

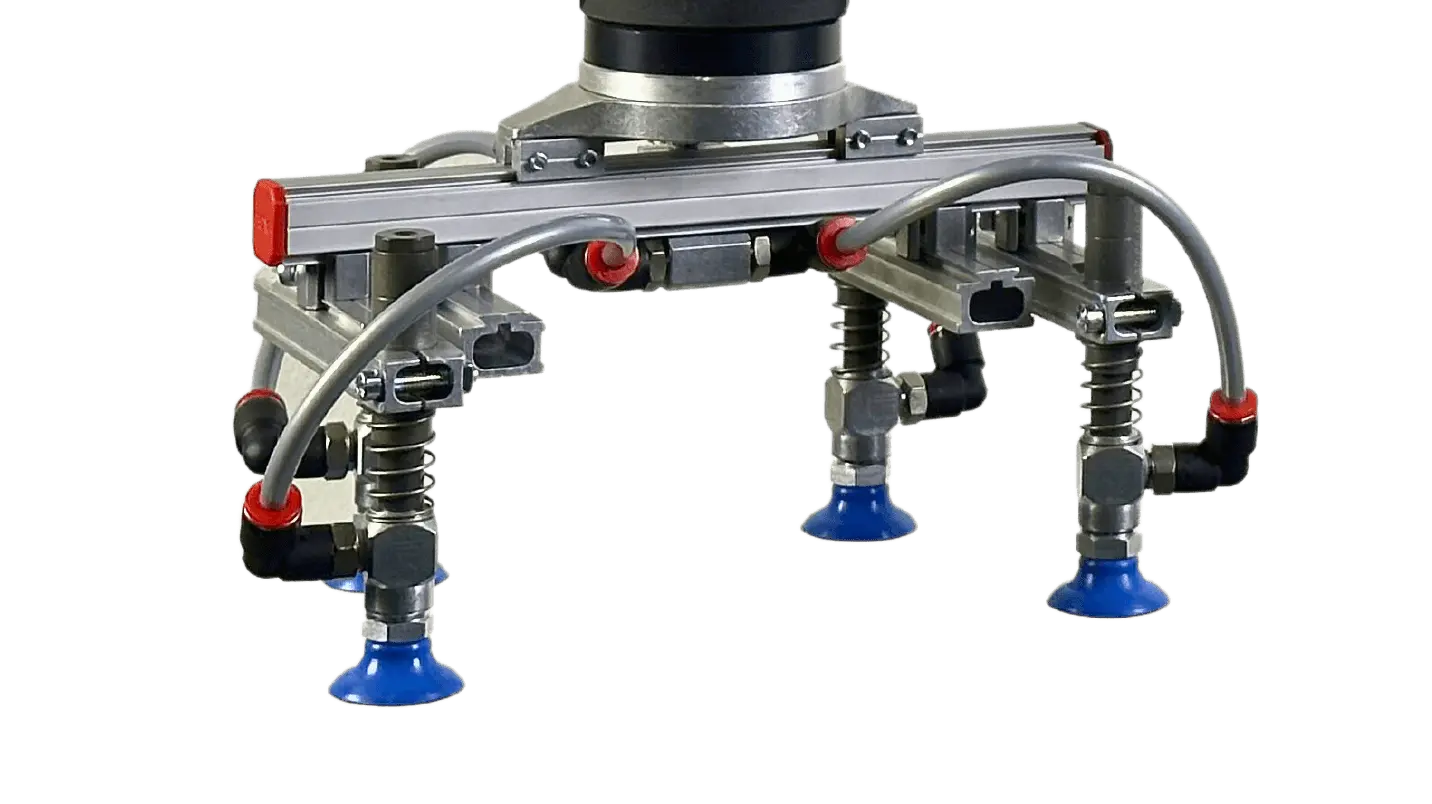

AGS Automation 4-SG Vacuum Gripper, 4 Spring-Loaded Suction Cups

Name: AGS Automation 4-SG Vacuum Gripper, 4 Spring-Loaded Suction Cups
Brand: AGS Automation
SKU: 3251
Price: 749 USD
Availability: InStock

AGS Automation

$749.00

Pneumatic vacuum gripper with four spring-loaded suction cups for small component handling. Includes gripper base plate, prism-profile arms with position adjustment, and pneumatic fittings. Spring suspension compensates for surface variation. Weight 0.66 kg. Robot-mount ready.

Gripper with Suction Cups Spring-Loaded 4-SG | Pneumatic Vacuum Gripper for Industrial Robots:

The AGS Automation 4-SG vacuum gripper is a pneumatic robot end effector with four spring-loaded suction cups, engineered for precise and damage-free handling of small parts and components in electronics assembly, automotive parts, and medical device manufacturing.

Features:

Spring Loaded Gripper System: Each suction cup provides independent surface compensation, absorbing height variations and reducing part damage.
Quick Changeover: Adjustable suction cup positions allow fast set-up for varying part geometries, enabling rapid adaptation to changing production needs.
Secure Handling: Four contact points maximize stability for lightweight, flat, or gently curved surfaces, minimizing drop risk during transfer.
Complete Assembly: Includes base plate for robot mounting and all pneumatic fittings.

Specifications:

Weight: 0.66 kg for easy robot integration.
Suction cups: Four, spring-loaded for flexibility.
Mounting interface: Standard drilling pattern for direct robot flange connection.

For full details, see our vacuum grippers specifications and gripper accessories pages.

Applications:

Pneumatic vacuum gripper robot systems for electronics, automotive, and medical device assembly.
Small parts gripper solutions for machine tending and pick-and-place tasks.
Suction cup gripper systems for delicate part handling, compensating for height and alignment variations.

How It Works:

The spring-loaded arms of the AGS Automation 4-SG adapt to uneven surfaces and part heights, improving pickup success rate and reducing damage risk. Pneumatic suction power ensures secure gripping, making the 4-SG ideal for fast, reliable, and gentle automated handling.

Request specifications, check compatibility with your robot, get a quote, or contact an application engineer for guidance on the AGS Automation 4-SG vacuum gripper system.

Weight0.66 kg

Propulsion MethodPneumatic

Payload: 1.5 kg
Reach: 200 mm
Mounting Interface: Standard drilling pattern
Repeatability: ± 0.1 mm
IP Rating: IP54

Handles small components with 4 spring-loaded suction cups
Spring-loaded arms compensate for surface height variations automatically
Mounts via standard drilling pattern to robot flange directly
Adjustable suction cup positions enable fast setup for varying geometries
Four contact points maximize stability for lightweight and curved surfaces
Supplied complete with pneumatic fittings, weighs only 0.66 kg

: The 4-SG mounts via a standard drilling pattern directly to your robot's flange, with a complete base plate included. No adapter plate or special mounting hardware is required.
: Each of the four spring-loaded suction cups provides independent surface compensation, automatically absorbing height variations and reducing part damage during pickup. The spring-loaded arms adapt to uneven surfaces on their own.
: The 4-SG weighs only 0.66 kg, making it lightweight and easy to integrate without adding significant load to your robot arm.
: The suction cup positions are adjustable, allowing you to quickly reconfigure the gripper for varying part geometries without tools or extensive downtime. Four contact points provide maximum stability across lightweight, flat, and gently curved surfaces.
: Yes, the 4-SG is supplied complete with all pneumatic fittings, so you can connect it directly to your pneumatic system without purchasing additional components.
: The 4-SG is engineered for electronics assembly, automotive parts, and medical device manufacturing, handling small components in pick-and-place and machine tending tasks where damage-free handling is critical.

Vacuum gripper versus mechanical gripper or magnetic pick:

The AGS 4-SG uses spring-loaded suction cups instead of fingers or magnets, making it the choice for delicate, smooth-surfaced, or non-ferrous small parts where clamping force or metal contact would cause damage or marks.

For flat or gently curved surfaces under 5 kg, the four independent spring-loaded cups compensate for height variation automatically, improving pickup success without manual height adjustment.
On parts in electronics, medical devices, or automotive assembly where surface finish matters, vacuum handling eliminates tool marks and pressure dents that mechanical grippers leave.
For quick changeovers across different part geometries, adjustable cup positions let you reconfigure in minutes rather than swapping grippers, freeing more payload for vision or quick-change systems.
At 0.66 kg, the 4-SG preserves robot speed and cycle time on compact, shared work cells where end-effector weight competes with tool payload.
