What is the maximum detection range of the SICK GL2S-P5311?

The GL2S-P5311 detects objects up to 3 m away when used with its included reflector. The minimum switching range is 0.02 m, giving you a detection window from 2 cm to 3 m.

Can I use this sensor in wet or dusty environments?

Yes, the GL2S-P5311 has IP67 protection and resists dust and water immersion, making it suitable for demanding industrial conditions including wash-down zones. Its compact sealed housing protects the optics in harsh environments.

Is the GL2S-P5311 fast enough for counting applications?

The sensor supports an 800 Hz switching frequency, which enables reliable counting and positioning tasks in automated assembly and conveying systems. This fast response time handles high-speed part tracking without missed detections.

What comes in the box with this photoelectric sensor?

The GL2S-P5311 includes a reflector and a 10 m connection cable for quick installation and setup. No additional accessories are required for basic operation.

How small is this sensor and will it fit in tight spaces?

The GL2S-P5311 has a compact form factor measuring 7.7 mm by 21.8 mm by 13.5 mm and weighs only 2 g. Its small size makes it ideal for installations where space is limited.

What light wavelength does the GL2S-P5311 use for detection?

The sensor uses a 640 nm red visible light beam, which provides easy alignment and reliable detection in industrial automation applications. The visible red light makes setup and troubleshooting straightforward.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockLong Range

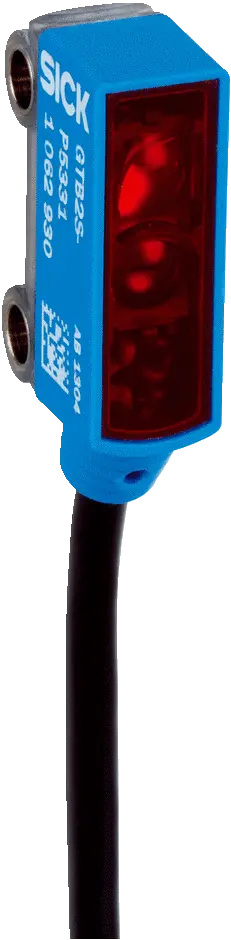

SICK GL2S-P5311 photoelectric sensor, reflective, 3 m range

Name: SICK GL2S-P5311 photoelectric sensor, reflective, 3 m range
Brand: SICK
SKU: 3136
Price: 169 USD
Availability: InStock

SICK

$169.00

SICK GL2S-P5311 reflective photoelectric sensor with 640 nm red light, 3 m detection range with reflector, 800 Hz switching frequency, and IP67 protection for industrial object detection and counting in packaging and assembly.

The SICK GL2S-P5311 is a G2 series retro reflective photoelectric sensor for reliable object detection and proximity sensing in industrial automation, packaging, and material handling systems.

Key Specifications:

Switching range: 0.02 to 3 m (with reflector)
Switching frequency: 800 Hz
Protection class: IP67
Compact size: 7.7 mm x 21.8 mm x 13.5 mm, 2 g

Features:

Red visible light at 640 nm for easy alignment and reliable detection
Includes reflector and 10 m connection cable for quick installation
Resists dust and water immersion for demanding industrial conditions
Supports light barrier modes for counting and positioning tasks

Applications:

Object detection and presence verification in packaging lines
Counting and part tracking in automated assembly and conveying systems
Use in environments requiring increased ingress protection, such as wash-down zones

Why Choose G2 Series vs. Other SICK Models:

The SICK GL2S-P5311 balances detection accuracy, compact form factor, and moderate-speed operation, making it suitable for tight installations and general-purpose industrial applications. Compared to basic proximity sensors, the reflective photo interrupter design improves reliability over longer distances. The G2 series offers consistent switching performance and simple mounting for efficient integration.

Weight0.002 kg

Weight2 g

System of protectionIP67 und IP69K

Wavelength: 640 nm
Switching frequency: 800 Hz
Max. switching distance: 02 - 3 m mm
Sensing Range: 0.02 to 3 m
IP Rating: IP67
Dimensions: 7.7 mm x 21.8 mm x 13.5 mm
Cable Length: 10 m

Detects up to 3 m with reflector, G2 retro-reflective photoelectric sensor
Easy alignment, 640 nm red visible light beam
Dust and water resistant, IP67 protection class
Compact form factor, 7.7 mm x 21.8 mm x 13.5 mm body
Fast switching, 800 Hz frequency for counting and positioning
Quick setup, includes reflector and 10 m connection cable

: The GL2S-P5311 detects objects up to 3 m away when used with its included reflector. The minimum switching range is 0.02 m, giving you a detection window from 2 cm to 3 m.
: Yes, the GL2S-P5311 has IP67 protection and resists dust and water immersion, making it suitable for demanding industrial conditions including wash-down zones. Its compact sealed housing protects the optics in harsh environments.
: The sensor supports an 800 Hz switching frequency, which enables reliable counting and positioning tasks in automated assembly and conveying systems. This fast response time handles high-speed part tracking without missed detections.
: The GL2S-P5311 includes a reflector and a 10 m connection cable for quick installation and setup. No additional accessories are required for basic operation.
: The GL2S-P5311 has a compact form factor measuring 7.7 mm by 21.8 mm by 13.5 mm and weighs only 2 g. Its small size makes it ideal for installations where space is limited.
: The sensor uses a 640 nm red visible light beam, which provides easy alignment and reliable detection in industrial automation applications. The visible red light makes setup and troubleshooting straightforward.

Retro-reflective vs. direct-beam photoelectric sensors:

The SICK GL2S-P5311 is a retro-reflective sensor that bounces light off a reflector to detect objects up to 3 m away. Choose this design over direct-beam sensors when you need longer range in compact spaces, easier alignment with visible red light, or detection without line-of-sight between emitter and receiver.

For packaging lines with gaps or obstacles between sensor and target, the reflector-based design allows detection from the same side of the conveyor.
In wash-down or dusty areas, IP67 protection and the included reflector mean reliable setup without frequent recalibration.
For counting fast-moving parts, the 800 Hz switching frequency captures position changes on high-throughput production lines.
In tight cell layouts, the 7.7 mm body width fits into narrow mounting slots where bulkier sensors cannot.
When quick installation matters, the package includes both reflector and 10 m cable to reduce site preparation time.
