What optics angle does the LED2WORK SPOTLED II come with?

The LED2WORK SPOTLED II with 25° optics delivers focused, flat illumination across medium work areas. If you need narrower or broader coverage, 16° and 40° optics variants are available.

Can this light survive coolant and chips on a CNC machine?

The IP67 sealed housing withstands coolant, chips, and harsh CNC environments, making it suitable for lathes, mills, and other production machinery.

What size metal surface do I need to mount this light?

Direct mounting requires a metallic surface of at least 150 x 150 mm to ensure adequate cooling. You can use an optional joint bracket to mount on smaller or irregular surfaces after installation.

Do I need thermal paste when installing the SPOTLED II?

Thermal paste is recommended for optimal heat dissipation, especially in ambient temperatures above 40°C, to maintain long LED lifetime.

How is the light arranged for even coverage?

Six LED spots are arranged in a full-circle configuration to provide even illumination across the work area for consistent machine vision tasks.

Can I reposition this light after I install it?

An optional joint bracket enables flexible repositioning and realignment after the initial installation on CNC machines and industrial equipment.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockIP67 Rated

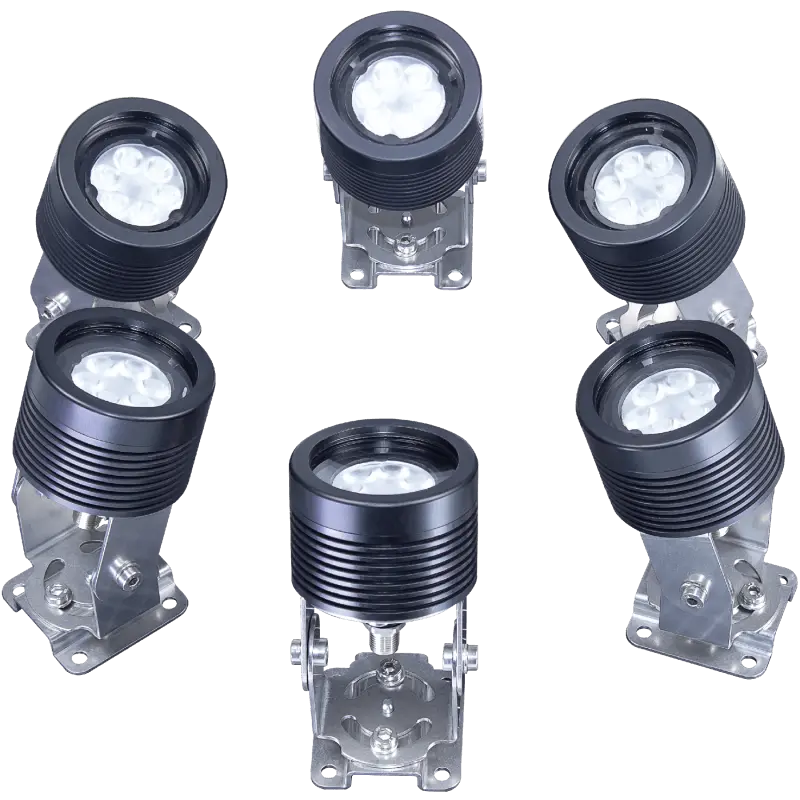

LED2WORK SPOTLED II Machine Vision Lighting, 25° optics, IP67

Name: LED2WORK SPOTLED II Machine Vision Lighting, 25° optics, IP67
Brand: LED2WORK
SKU: 3088
Price: 2595 USD
Availability: InStock

LED2WORK GmbH

$2,595.00

IP67-rated LED machine vision light with 25° optics for focused, flat illumination on CNC machines and manufacturing equipment. Surface-mounted full-circle design with six LED spots, rated for coolant and chip exposure. Requires metal mounting surface of at least 150 x 150 mm for thermal management.

LED2WORK SPOTLED II Machine Vision Lighting is a surface-mounted LED machine light for precision illumination in industrial work cells, CNC machines, and manufacturing equipment.

Key Features:

25° optics for focused, flat illumination ideal for machine vision tasks
Six LED spots arranged in a full-circle configuration
IP67-rated sealed housing protects against coolant, chips, and contaminants
Optional joint bracket for flexible positioning and realignment

Applications:

CNC lighting on lathes, mills, and other production machinery
Industrial machine lights for harsh shop-floor environments
LED illumination for workstations requiring tight, consistent light fields

Compatibility and Related Products:

Designed for mounting on CNC machines, industrial equipment, and automatic production lines
Compatible with mounting on metal surfaces at least 150 x 150 mm when not using the joint bracket, using thermal paste for optimal heat dissipation
For broader or narrower illumination, consider other LED2WORK SPOTLED II variants: 16° optics and 40° optics

Mounting and Thermal Management:

Surface-mounted installation supports robust placement in demanding environments
When bracket is omitted, ensure a metallic mounting surface of at least 150 x 150 mm for adequate cooling under high ambient temperatures (40°C and above)
Thermal paste is recommended to maximize heat transfer and maintain long LED lifetime

System of protectionIP67 und IP69K

Optics: 25°
IP Rating: IP67
Mounting Interface: Metal surface
Mounting area minimum: 150 x 150 mm

25° optics deliver focused, flat illumination across medium work areas
Six LED spots arranged in full-circle configuration for even coverage
IP67 sealed housing withstands coolant, chips, and harsh CNC environments
Optional joint bracket enables flexible repositioning after installation
Rear-mounted heat radiation requires 150 x 150 mm metal surface minimum
Thermal paste recommended for optimal heat dissipation above 40°C ambient
Choose 16° or 40° optics variants for narrower or broader illumination

: The LED2WORK SPOTLED II with 25° optics delivers focused, flat illumination across medium work areas. If you need narrower or broader coverage, 16° and 40° optics variants are available.
: The IP67 sealed housing withstands coolant, chips, and harsh CNC environments, making it suitable for lathes, mills, and other production machinery.
: Direct mounting requires a metallic surface of at least 150 x 150 mm to ensure adequate cooling. You can use an optional joint bracket to mount on smaller or irregular surfaces after installation.
: Thermal paste is recommended for optimal heat dissipation, especially in ambient temperatures above 40°C, to maintain long LED lifetime.
: Six LED spots are arranged in a full-circle configuration to provide even illumination across the work area for consistent machine vision tasks.
: An optional joint bracket enables flexible repositioning and realignment after the initial installation on CNC machines and industrial equipment.

Focused machine vision lighting versus broad ambient work lights:

The SPOTLED II with 25° optics delivers concentrated, flat illumination suited to precision inspection and quality control on CNC machines and production cells. Where general work lights wash broad areas with uneven coverage, this unit concentrates light in a defined field for machine vision tasks and tight tolerances.

For parts under close camera inspection, the 25° beam creates uniform contrast without glare or shadow zones.
In coolant-heavy CNC environments, the IP67 sealed housing and full-circle LED arrangement resist chip spray and fluid damage.
On shared production cells with space constraints, the optional joint bracket allows fine repositioning after mounting without removal.
If your ambient temperature exceeds 40°C or space is tight, verify a 150 x 150 mm bare metal surface is available; thermal paste then protects LED life during continuous operation.
For wider or narrower coverage, switch to the 40° or 16° optics variants without changing the housing.
