What is the stroke adjustment on the FIPA GR03.1010T Spring Leveler?

The GR03.1010T provides a 10 mm stroke for reliable height adjustment to compensate for uneven surfaces in packaging and pick-and-place operations. This stroke range allows the leveler to maintain consistent contact stability on variable stack heights.

How do I mount the GR03.1010T to my end effector?

The GR03.1010T features an M10x1 threaded body that mounts directly to custom end effectors with quick installation. The unit includes an SW 8 wrench flat for secure tightening.

Is the FIPA GR03.1010T Spring Leveler lightweight enough for high-speed applications?

Yes, the GR03.1010T weighs only 0.011 kg and is constructed from anodized aluminum, making it suitable for fast-cycle machinery and automated high-speed operations. The ball-guided sliding structure delivers smooth, repeatable operation even at high speed.

What pneumatic port does the GR03.1010T use?

The GR03.1010T has an integrated M5 pneumatic port that connects to standard actuation and vacuum systems. The overall length is 56 mm.

How does the spring compensator mechanism work on this leveler?

The non-rotating internal spring compensator mechanism in the GR03.1010T automatically maintains alignment and contact stability by adjusting to uneven surfaces. This keeps the end effector properly positioned and leveled during pick-and-place and packaging operations.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockLong Stroke

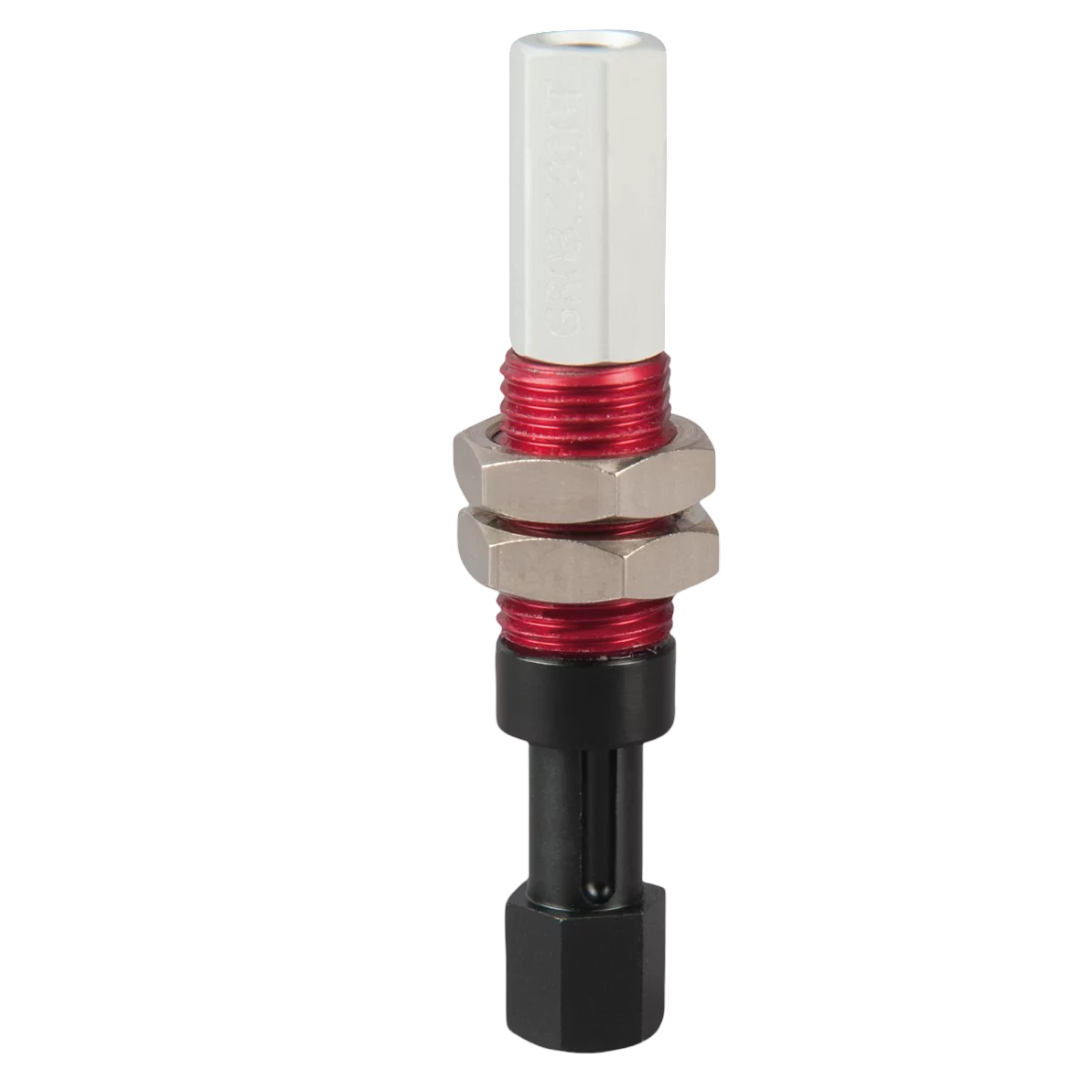

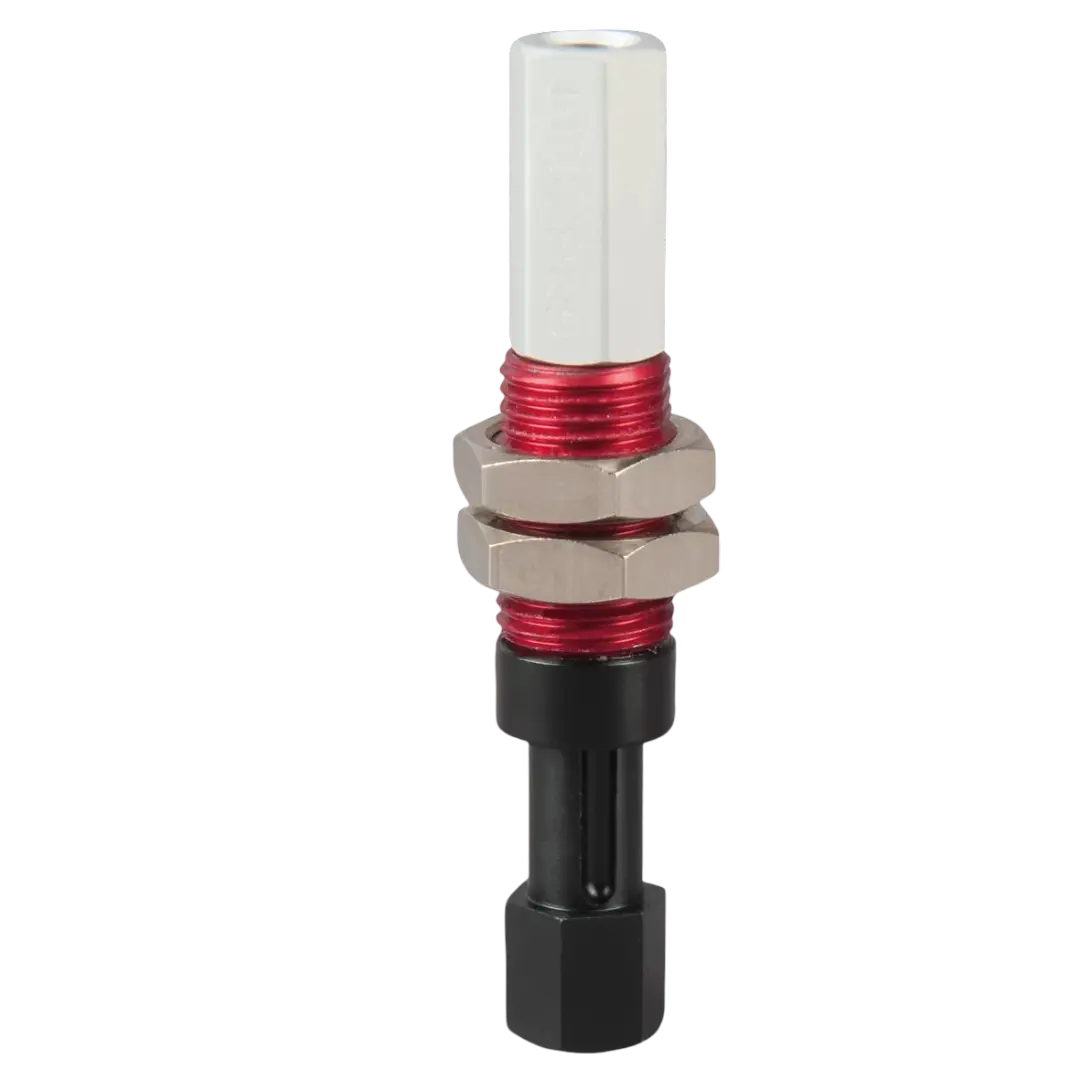

FIPA GR03.1010T Spring Leveler, M10x1, 10 mm stroke

Name: FIPA GR03.1010T Spring Leveler, M10x1, 10 mm stroke
Brand: FIPA
SKU: 3705
Price: 49.99 USD
Availability: InStock

FIPA GmbH

$49.99

Pneumatic spring leveler with M10x1 threaded body and 10 mm non-rotating stroke for height compensation in automated handling and placement operations. Features anodized aluminum construction, ball-guided sliding structure, and M5 pneumatic port for vacuum and pick-and-place applications.

Pneumatic Spring Leveler for Industrial Handling:

The FIPA GR03.1010T is a pneumatic spring leveler engineered for end-of-arm tooling applications in industrial handling, packaging, and pick-and-place operations requiring precise height compensation.

Main Features:

10 mm stroke delivers reliable height adjustment.
0.011 kg weight and anodized aluminum construction suit fast-cycle machinery.
Integrated M5 pneumatic port supports standard actuation and vacuum systems.

The non-rotating internal spring compensator mechanism keeps alignment consistent and contact stable on uneven surfaces, making the GR03.1010T pneumatic leveler ideal for handling products with variable stack heights or surface irregularities.

When to Choose FIPA GR03.1010T Spring Leveler:

Suitable for automated installations where repeatable stroke and precise compensation are critical.
Mounts easily to end effectors in pick-and-place and packaging lines.
Ball-guided sliding structure ensures smooth, repeatable operation, even at high speed.

Weight0.011 kg

Stroke per jaw10 mm

Propulsion MethodPneumatic spring

Payload: 0.011 kg
Stroke: 10 mm
Mounting Interface: M10x1 threaded body
Pneumatic Port: M5
Overall Length: 56 mm
Wrench Size: SW 8

Adjusts 10 mm stroke, M10x1 threaded body, 56 mm length, M5 port, SW 8 wrench
Compensates uneven surfaces in packaging and pick-and-place operations reliably
Lightweight 0.011 kg anodized aluminum suits fast-cycle machinery
Spring compensator mechanism maintains alignment and contact stability consistently
Ball-guided sliding structure delivers smooth, repeatable operation at high speed

: The GR03.1010T provides a 10 mm stroke for reliable height adjustment to compensate for uneven surfaces in packaging and pick-and-place operations. This stroke range allows the leveler to maintain consistent contact stability on variable stack heights.
: The GR03.1010T features an M10x1 threaded body that mounts directly to custom end effectors with quick installation. The unit includes an SW 8 wrench flat for secure tightening.
: Yes, the GR03.1010T weighs only 0.011 kg and is constructed from anodized aluminum, making it suitable for fast-cycle machinery and automated high-speed operations. The ball-guided sliding structure delivers smooth, repeatable operation even at high speed.
: The GR03.1010T has an integrated M5 pneumatic port that connects to standard actuation and vacuum systems. The overall length is 56 mm.
: The non-rotating internal spring compensator mechanism in the GR03.1010T automatically maintains alignment and contact stability by adjusting to uneven surfaces. This keeps the end effector properly positioned and leveled during pick-and-place and packaging operations.

Spring Leveler vs. Fixed-Mount End Effectors:

The FIPA GR03.1010T is a pneumatic spring leveler designed to compensate for height variation where fixed tooling cannot. Unlike rigid end effectors, it provides 10 mm of active stroke adjustment to maintain contact and alignment on uneven or variable-height surfaces.

For parts with inconsistent stack heights or warped surfaces, the spring compensator maintains stable contact without manual adjustment or setup.
In high-speed pick-and-place lines, the ball-guided sliding structure and 0.011 kg weight enable repeatable cycles without cycle-time loss.
On packaging applications where product height varies, the pneumatic leveler absorbs variation automatically, reducing part damage and retry cycles.
When space is tight or payload is critical, the lightweight M10x1 threaded design mounts directly to existing end effectors without adding bulk.
