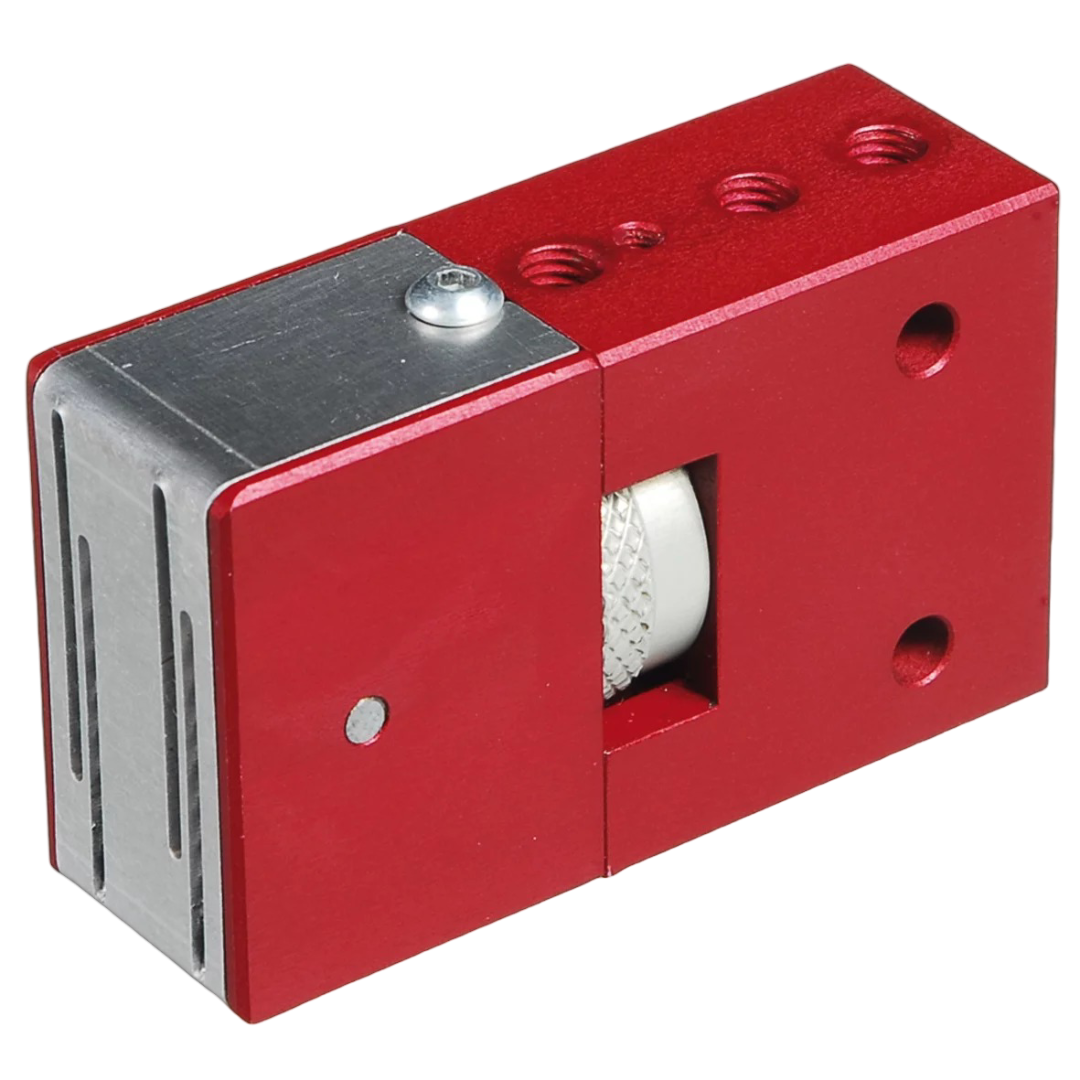

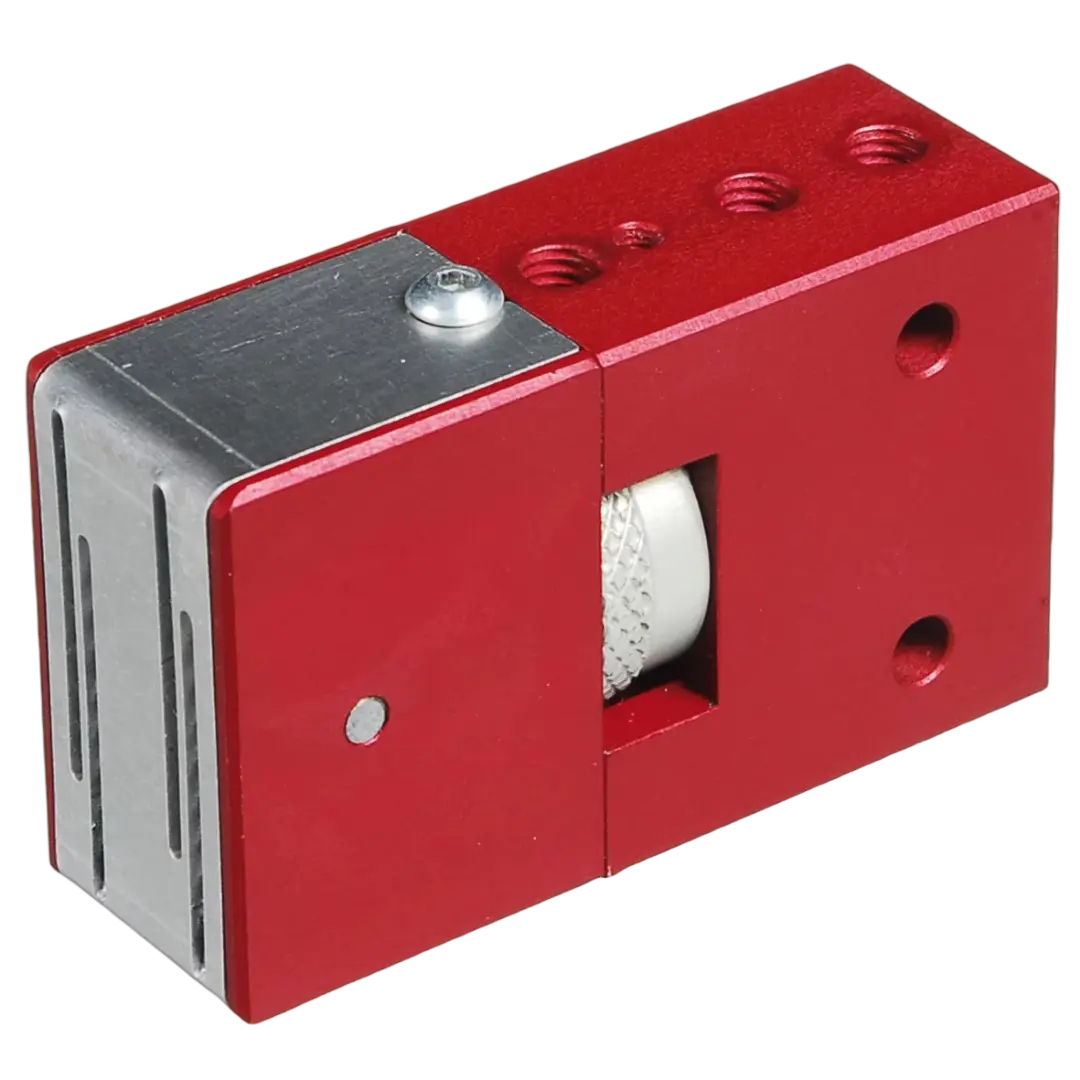

Pneumatic needle gripper FIPA GR04.700-20 is a double acting robot end effector for precise handling of flexible, air permeable materials in automated pick and place, with rapid release and adjustable stroke.
- 32 needles, 0.7 mm diameter each
- Stroke 0 to 2 mm (0 to 0.079 in)
- Weight 0.114 kg (0.251 lb)
- Ambient temperature up to 70°C
Features:
- Double acting needle gripper: Separate compressed air connections for extraction and retraction support short cycle times in high speed pick and place.
- Blow off gripper function: An additional air inlet provides fast blow off for rapid release of air permeable materials.
- Adjustable stroke: A knurled screw sets the 0 to 2 mm stroke to match material thickness.
- Gentle material engagement: 0.7 mm needles and a flat entry angle minimize penetration depth and stabilize thin parts.
- Lightweight build: 0.114 kg reduces load on axes and suits compact industrial automation cells.
- Controls friendly: Pneumatic interface integrates with standard automation controls for coordinated needle movement.
- Serviceability: Compatible mounting brackets and spare needle plates are available for long term maintenance.
Applications:
- Textile handling gripper tasks, including woven, nonwoven, and felt materials
- Foams, felts, and air permeable sheets and laminates
- Pick and place gripper duties in automated manufacturing
- Air permeable materials gripper use where vacuum is ineffective
Technical Specifications:
- Model: FIPA GR04.700-20 pneumatic needle gripper
- Operation: Double acting with separate extend and retract air ports, plus a dedicated blow off air inlet
- Needles: 32 pieces, 0.7 mm diameter
- Stroke: 0 to 2 mm per jaw (0 to 0.079 in), adjustable via knurled screw
- Weight: 0.114 kg (0.251 lb)
- Temperature: Operates in ambient temperatures up to 70°C
