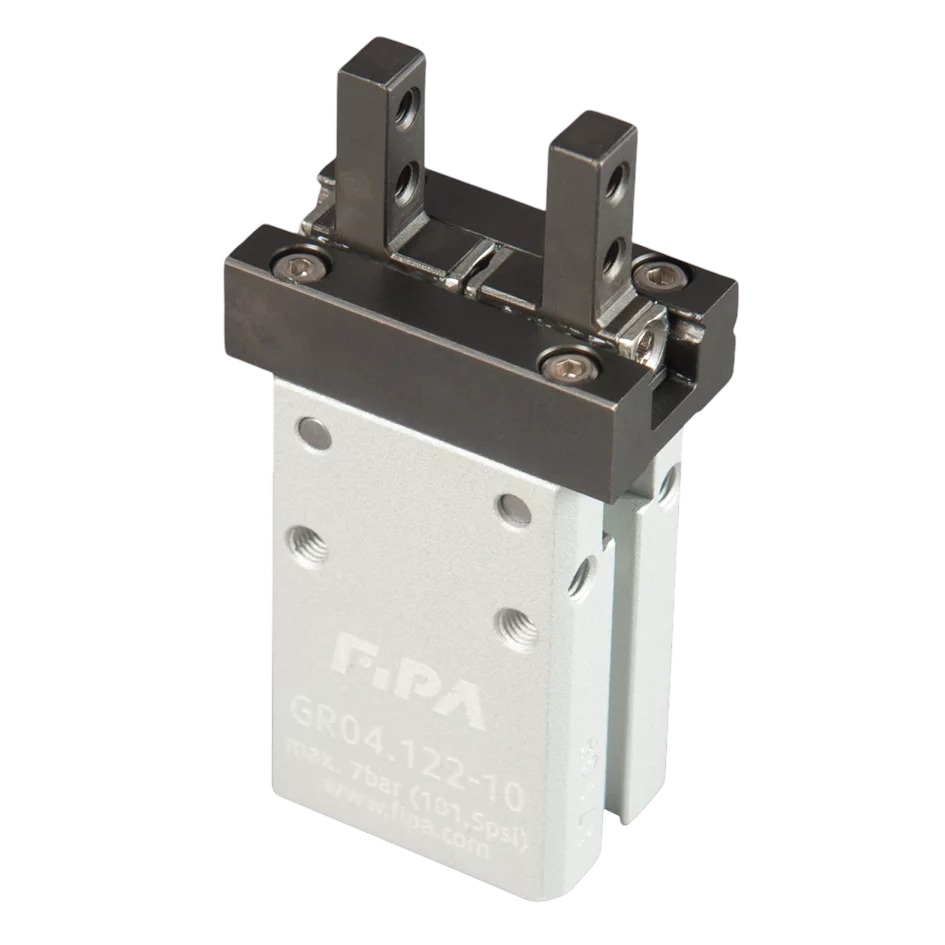

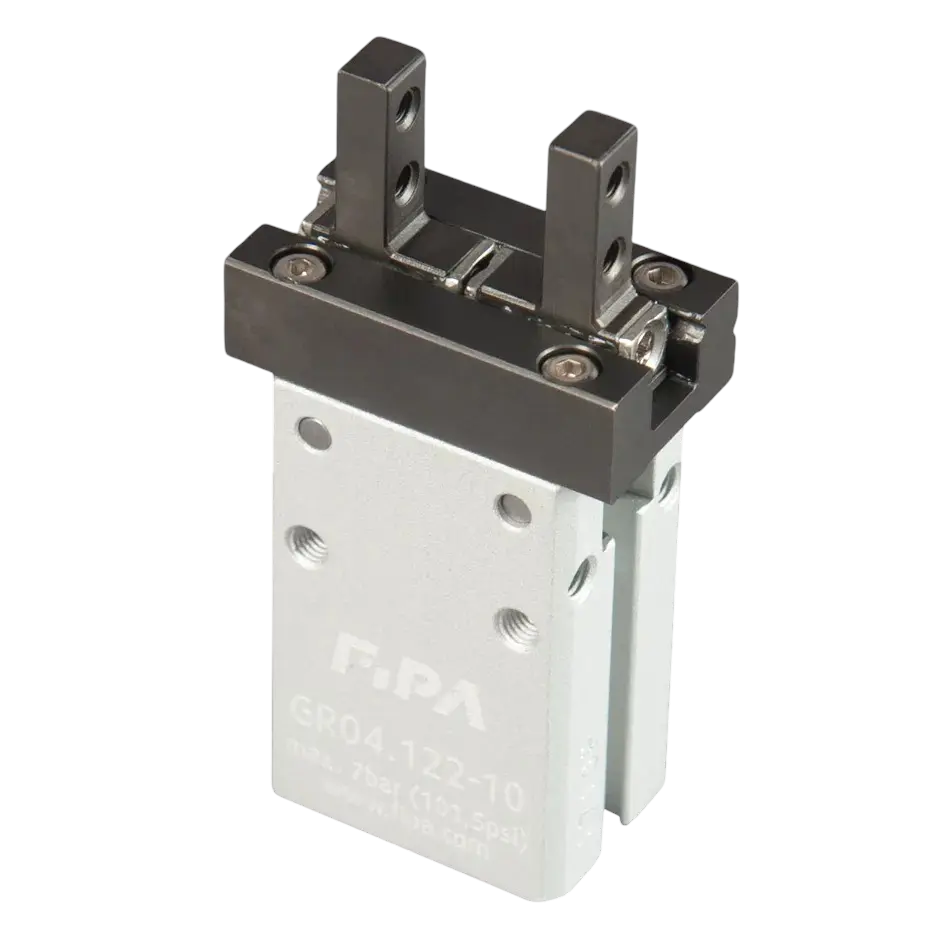

FIPA GR04.122-10 Pneumatic Gripper, 2-finger, 22 N

FIPA GR04.122-10 pneumatic gripper is a compact and lightweight 2-finger parallel gripper engineered for small part handling in industrial automation and electronics assembly environments.

Key Features of FIPA GR04.122-10 Pneumatic Parallel Gripper:

• Gripping force: 22 N
• Piston diameter: 10 mm
• Stroke per jaw: 2 mm
• Weight: 0.06 kg
• Maximum temperature: 60°C

Designed for compatibility with End Effectors and Pneumatic Grippers families, the two finger parallel gripper offers precise linear jaw movement, enabling both internal and external gripping of small components. The parallel gripper’s compact form and limited stroke make it ideal for applications requiring careful handling and accurate placement such as high-density pick-and-place, precision machine tending, and electronics manufacturing.

Advantages vs Larger Pneumatic Grippers:

• Reduced footprint enables deployment in confined spaces
• Lower mass facilitates fast motion and minimizes inertia in robotic arms
• Optimized for delicate small part gripping with controlled, repeatable pressure
• Simple integration with standard end effector interfaces

When to Use This 2 Finger Parallel Gripper:

• Ideal for small parts between 2 mm and 10 mm diameter
• Recommended where workspace is limited and larger grippers are not feasible
• Suitable for repeatable pick-and-place operations where consistent force is critical

The FIPA GR04.122-10 pneumatic parallel gripper is a reliable choice for manufacturers seeking compact automation tooling to handle small components efficiently in environments up to 60°C.
