Can the Fairino FR5 handle precision assembly work?

The Fairino FR5-IP65 achieves 0.02 mm repeatability in a compact 22 kg frame, making it well-suited for high-tolerance assembly tasks like electronics, medical devices, and semiconductor applications. Its 5 kg payload and 922 mm reach fit confined workspaces without bulk.

Is the Fairino FR5-IP65 suitable for wet or dusty environments?

Yes, the Fairino FR5-IP65 carries IP65 sealing that protects against dust and moisture, plus an optional explosion-proof variant for hazardous areas. This allows deployment in harsh manufacturing and processing environments.

What programming languages work with the Fairino FR5?

The Fairino FR5 supports C#, C++, Python, and ROS/ROS2, offering flexibility to integrate into diverse automation workflows from research to production. It also communicates via TCP/IP, Modbus TCP/RTU, with optional Profinet, EtherCAT, and Ethernet/IP protocols.

How do you control and program the Fairino FR5-IP65?

The Fairino FR5-IP65 can be steered via a 10.1 inch teach pendant or a web app running on real-time EtherCAT architecture. Multiple programming languages and industrial protocols make configuration and operation straightforward for diverse automation tasks.

What tasks can a 5 kg cobot perform?

The Fairino FR5 handles pick and place, inspection, gluing, and assembly across its 6-axis platform with 922 mm reach. Its 0.02 mm repeatability and compact design make it ideal for precision work in electronics, medical devices, and semiconductor manufacturing.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock6-Axis Precision

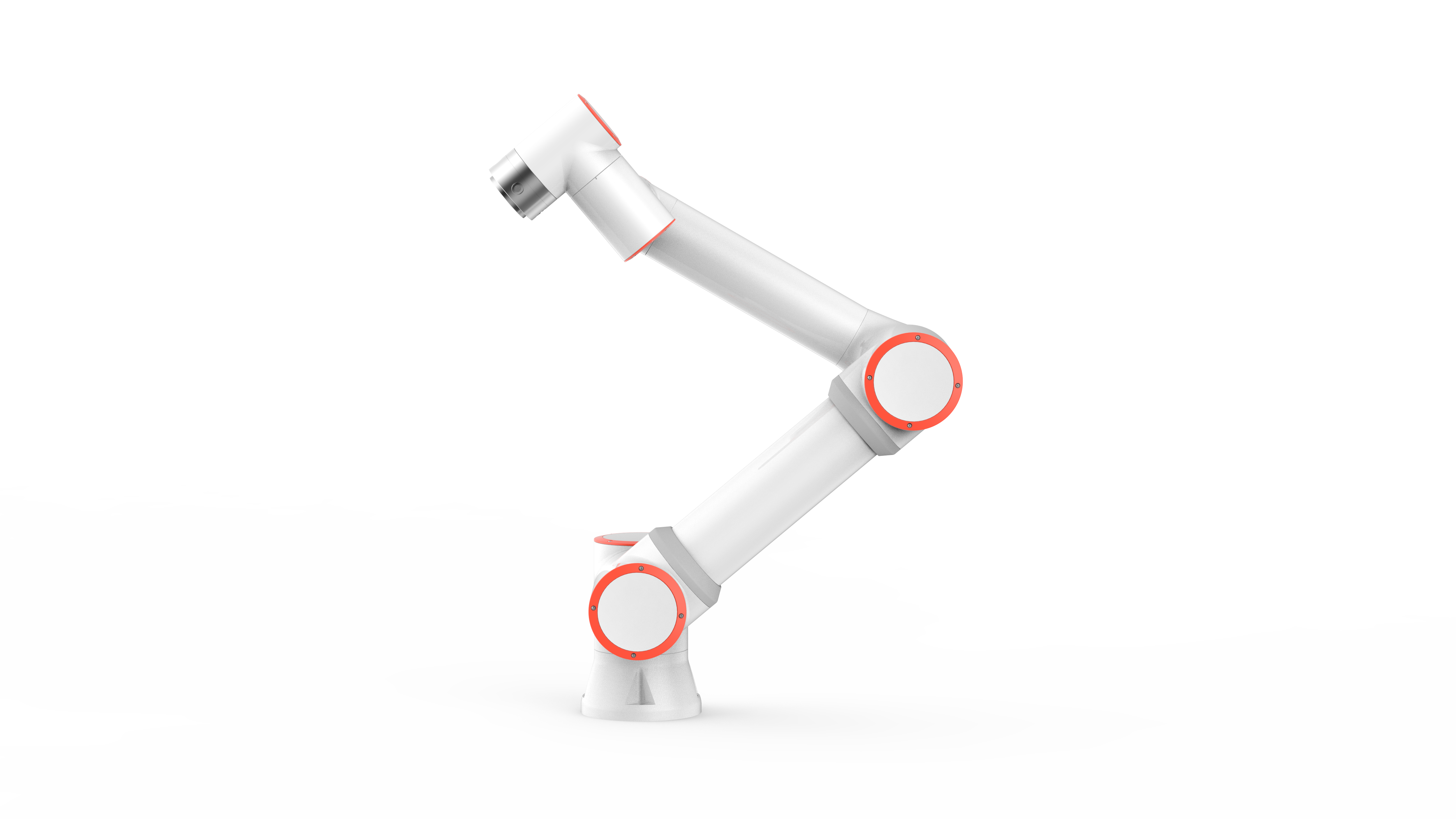

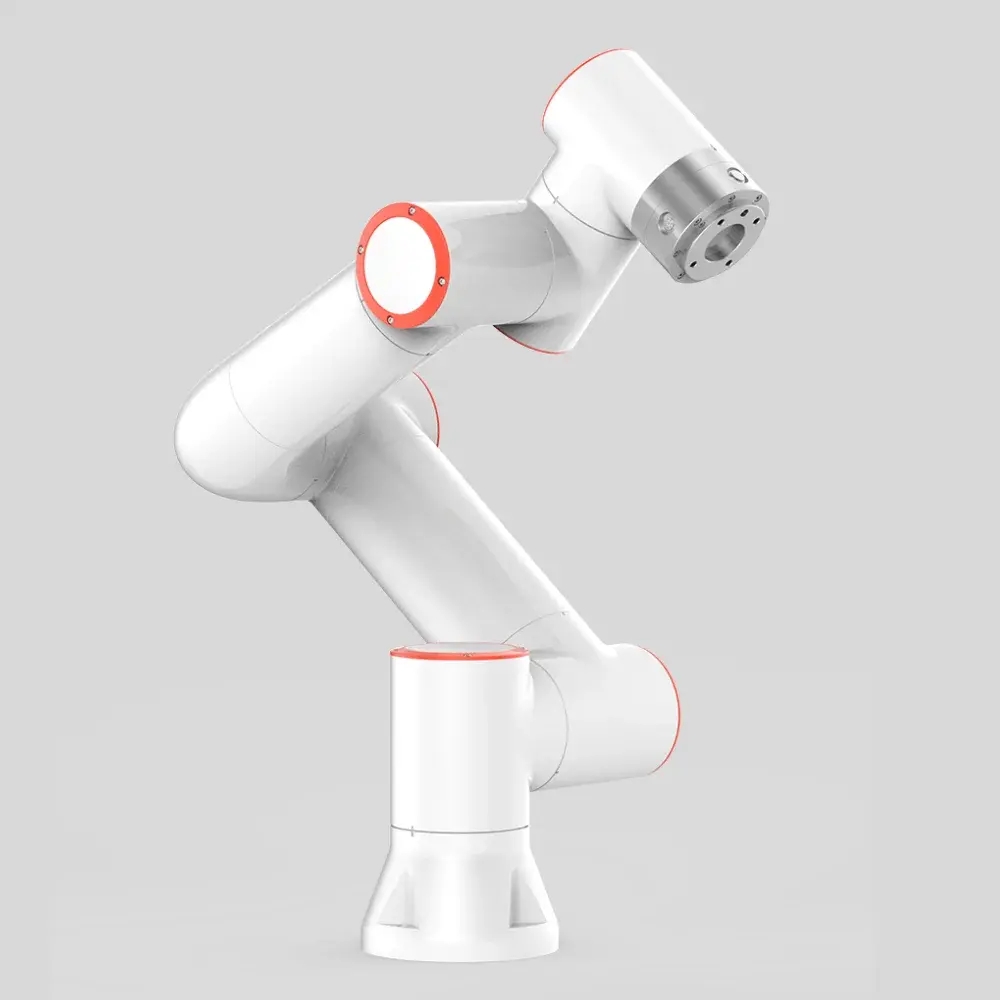

Fairino FR5 Cobot, 5kg, 922mm Reach

Name: Fairino FR5 Cobot, 5kg, 922mm Reach
Brand: Fairino
SKU: 3481
Price: 10500 USD
Availability: InStock

FAIRINO

$10,500.00

Six-axis collaborative robot with 5 kg payload, 922 mm reach, and 0.02 mm repeatability. Weighs 22 kg, offers IP65 protection, and supports multiple protocols and programming languages including Python and ROS. Ideal for pick and place, assembly, inspection, and gluing tasks in compact work cells.

Fairino FR5-IP65 is a 6-axis collaborative robot engineered for precision automation tasks in industrial environments that require a compact, small payload cobot with robust IP65 protection.

Specifications:

Payload capacity: 5 kg
Working radius: 922 mm
Repeatability: 0.02 mm
Weight: 22 kg
Protection rating: IP65
Degrees of freedom: 6

Features:

6DOF precision robotic arm built for industrial automation and collaborative robotics with easy deployment in tight workspaces.
Real-time EtherCAT architecture enables fast and accurate response.

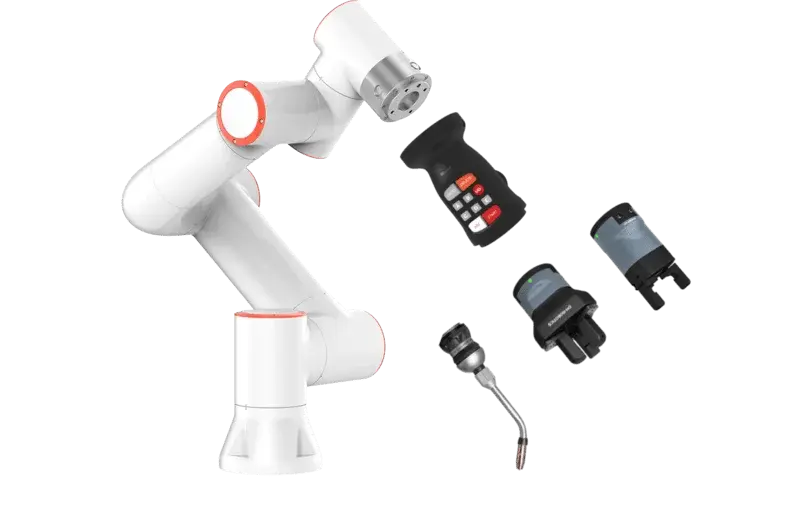

Controls via a 10.1-inch teach pendant or web application interface simplify configuration and operation.
An explosion-proof variant is available for hazardous environment requirements.

Supported Communication Protocols:

TCP/IP
Modbus TCP/RTU
Optional: Profinet, EtherCAT, Ethernet/IP

For guidance on choosing protocols, see our guides on industrial communication systems or related product listings.

Applications:

Pick and place in electronics assembly lines
Quality inspection in semiconductor manufacturing
Gluing operations for medical device assembly
General industrial automation in precision tasks where clean, protected, and reliable motion is required

Programming Options:

C#
C++
Python
ROS/ROS2

Programming flexibility allows integration into diverse automation workflows, including advanced robotics research and production environments.

Optional Features:

Explosion-proof variant for hazardous areas
Support for additional industrial protocols

FAQ:

What is a 5 kg cobot? A 5 kg cobot like the Fairino FR5-IP65 is a collaborative robot designed for handling payloads up to 5 kg, ideal for small part assembly, inspection, or light material handling.
Is this cobot suitable for precision tasks? Yes, with a repeatability of 0.02 mm, the FR5-IP65 is well suited for precision operations in electronics, medical device, and semiconductor industries.
Where can an IP65 collaborative robot be used? IP65 protection allows the robot to operate in environments where dust and water are present, making it suitable for manufacturing, inspection, or processing tasks in harsh conditions.

Weight22 kg

Max. Payload5 kg

Max. Reach: 922 mm
DOF: 6
Repeatability: 0.02 mm
Max. Speed: 1
Protection Class: 65
Payload: 5 kg
Reach: 922 mm
IP Rating: IP65
Degrees of freedom: 6
Communication Protocols: TCP/IP
Modbus TCP/RTU
Profinet (optional)
EtherCAT (optional)
Ethernet/IP (optional)
Programming Environments: C#
C++
Python
ROS/ROS2
Control Interface: 10.1-inch teach pendant, web application
Applications: Pick and place
Assembly
quality inspection
gluing
Hazardous Environment Option: Explosion-proof version available

Hits ±0.02 mm repeatability in a compact 22 kg frame for tight-tolerance assembly
Hauls 5 kg across 922 mm reach, fits confined workspaces without bulk
IP65 sealed against dust and moisture, plus optional explosion-proof variant
Talks TCP/IP, Modbus TCP/RTU, with optional Profinet, EtherCAT, Ethernet/IP
Programs in C#, C++, Python, ROS/ROS2 for diverse automation workflows
Steered via 10.1 inch teach pendant or web app on real-time EtherCAT
Handles pick and place, inspection, gluing, assembly in one 6-axis platform

: The Fairino FR5-IP65 achieves 0.02 mm repeatability in a compact 22 kg frame, making it well-suited for high-tolerance assembly tasks like electronics, medical devices, and semiconductor applications. Its 5 kg payload and 922 mm reach fit confined workspaces without bulk.
: Yes, the Fairino FR5-IP65 carries IP65 sealing that protects against dust and moisture, plus an optional explosion-proof variant for hazardous areas. This allows deployment in harsh manufacturing and processing environments.
: The Fairino FR5 supports C#, C++, Python, and ROS/ROS2, offering flexibility to integrate into diverse automation workflows from research to production. It also communicates via TCP/IP, Modbus TCP/RTU, with optional Profinet, EtherCAT, and Ethernet/IP protocols.
: The Fairino FR5-IP65 can be steered via a 10.1 inch teach pendant or a web app running on real-time EtherCAT architecture. Multiple programming languages and industrial protocols make configuration and operation straightforward for diverse automation tasks.
: The Fairino FR5 handles pick and place, inspection, gluing, and assembly across its 6-axis platform with 922 mm reach. Its 0.02 mm repeatability and compact design make it ideal for precision work in electronics, medical devices, and semiconductor manufacturing.

Compact cobots vs larger industrial robots:

The FR5 is built for tight workspaces and light payloads where full-size robots would not fit or would waste capacity. Choose this cobot when precision and confined space matter more than lifting heavy parts.

For parts under 5 kg in crowded assembly cells, the 22 kg frame and 922 mm reach fit where heavier robots cannot, freeing floor space for multiple tools.
On pick-and-place or gluing tasks requiring sub-0.02 mm accuracy, repeatability matches tight-tolerance demand without over-specification.
In dusty or wet environments (food, medical device, or outdoor prep lines), IP65 sealing keeps the arm running where unsealed robots would corrode or fail.
For hazardous areas, the optional explosion-proof variant eliminates the need to swap equipment or redesign the cell.
Multi-protocol support (TCP/IP, Modbus, optional Profinet, EtherCAT, Ethernet/IP) and multi-language programming (C#, C++, Python, ROS) integrate into existing lines without custom middleware.
