Fairino FR5 | 6DOF | 922mm | 5kg
Fairino
The Fairino FR5 is a six-axis collaborative robot offering 5 kg payload capacity, 922 mm reach, and 0.02 mm repeatability in a 22 kg package with IP54 protection.

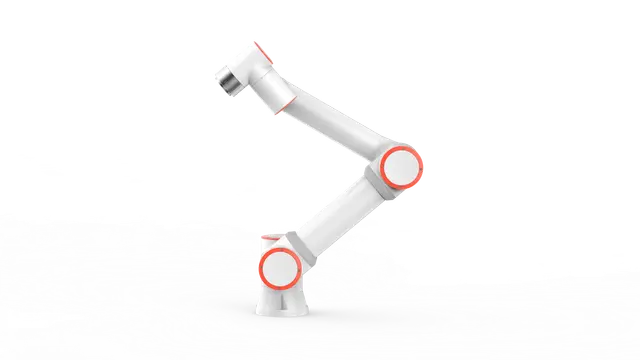

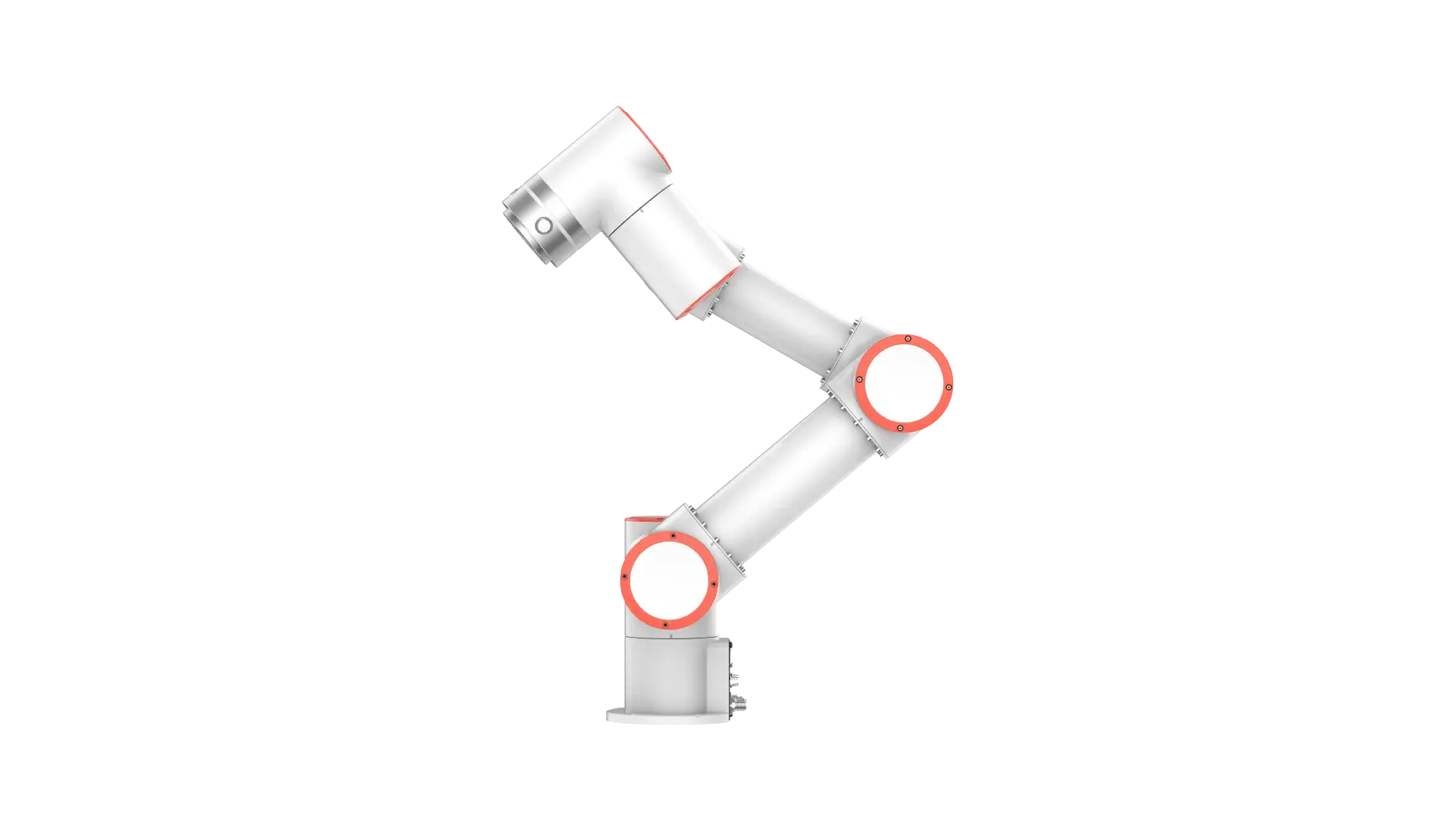

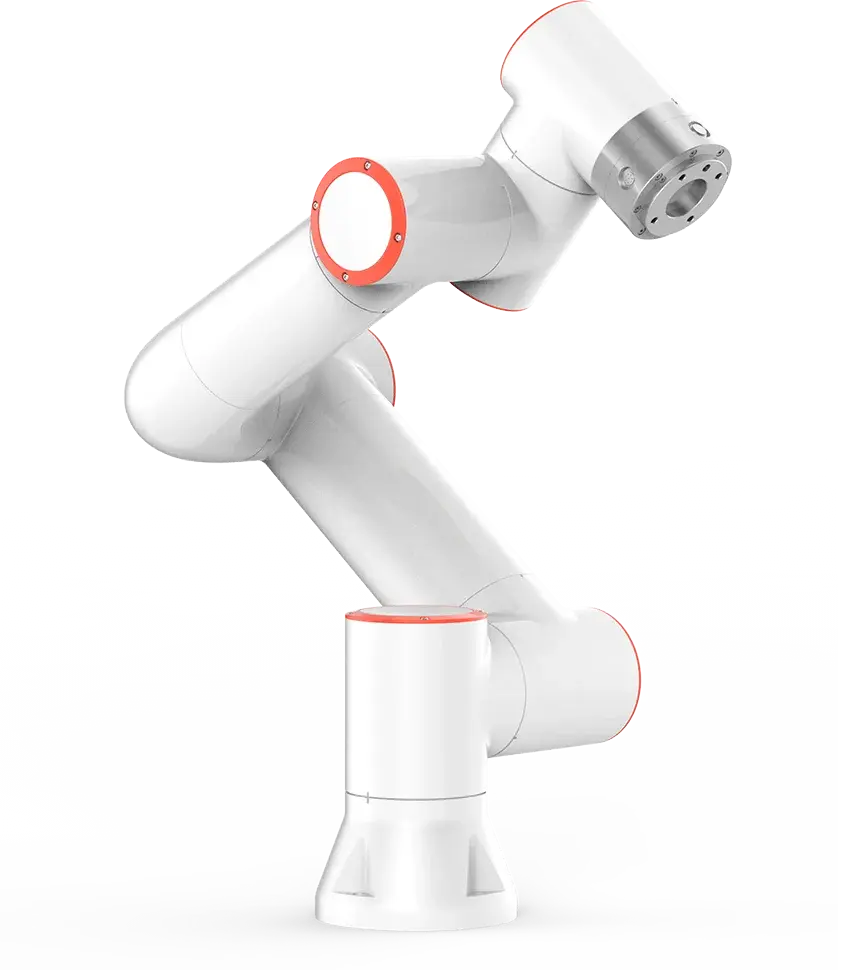

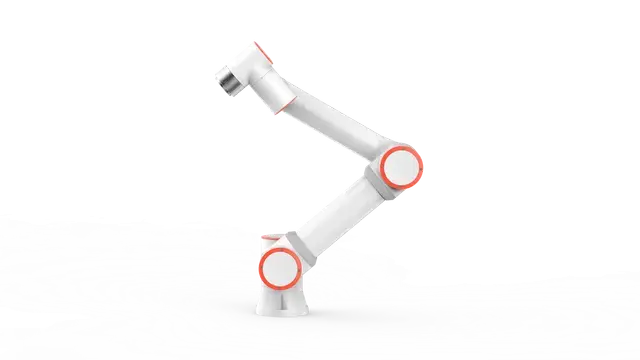

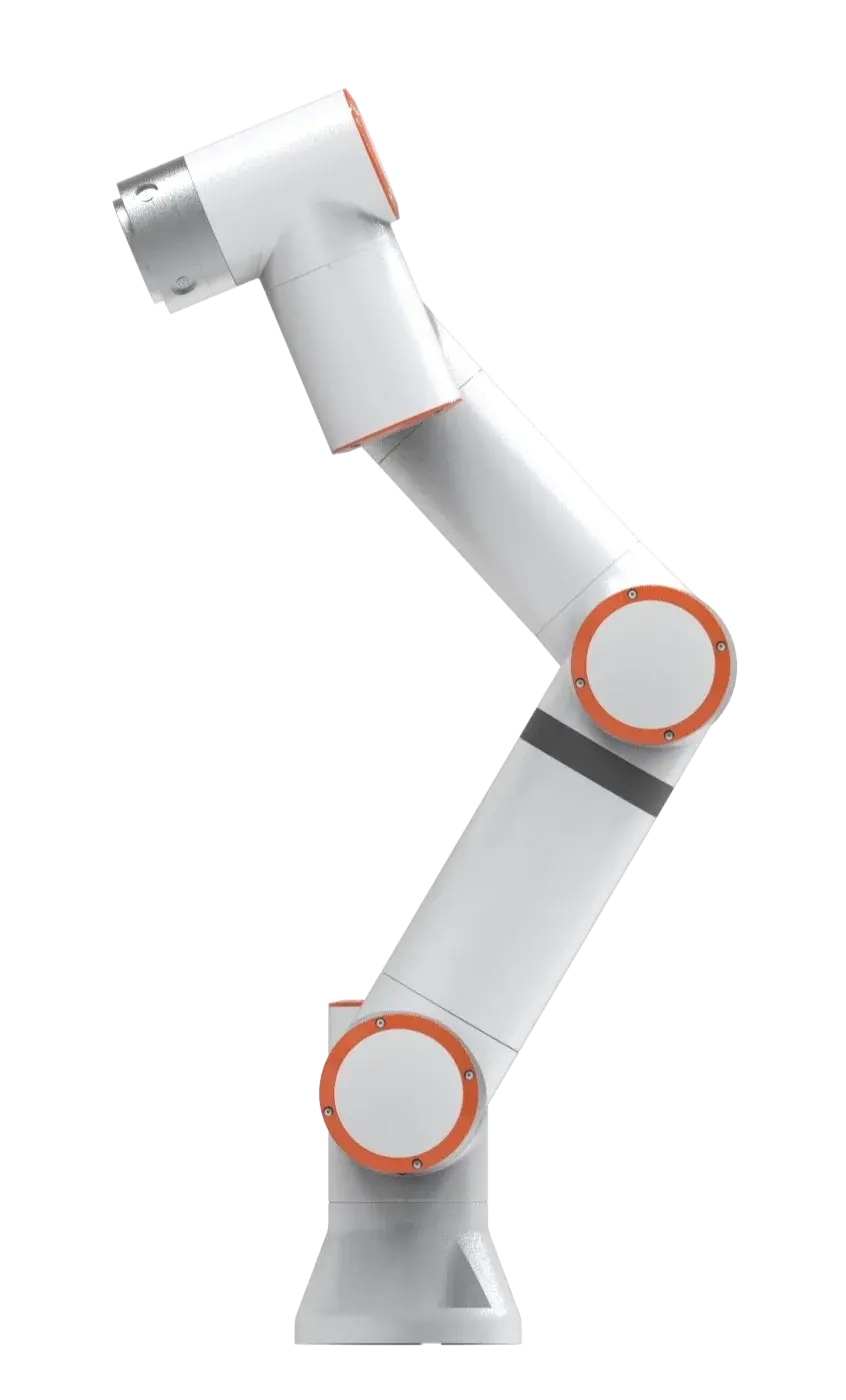

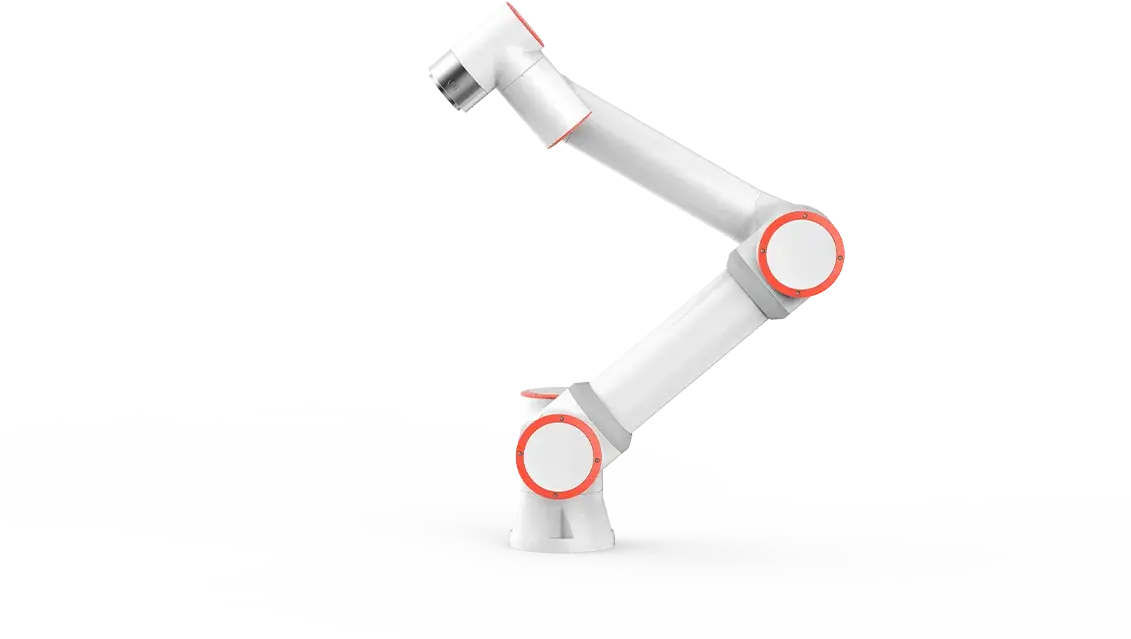

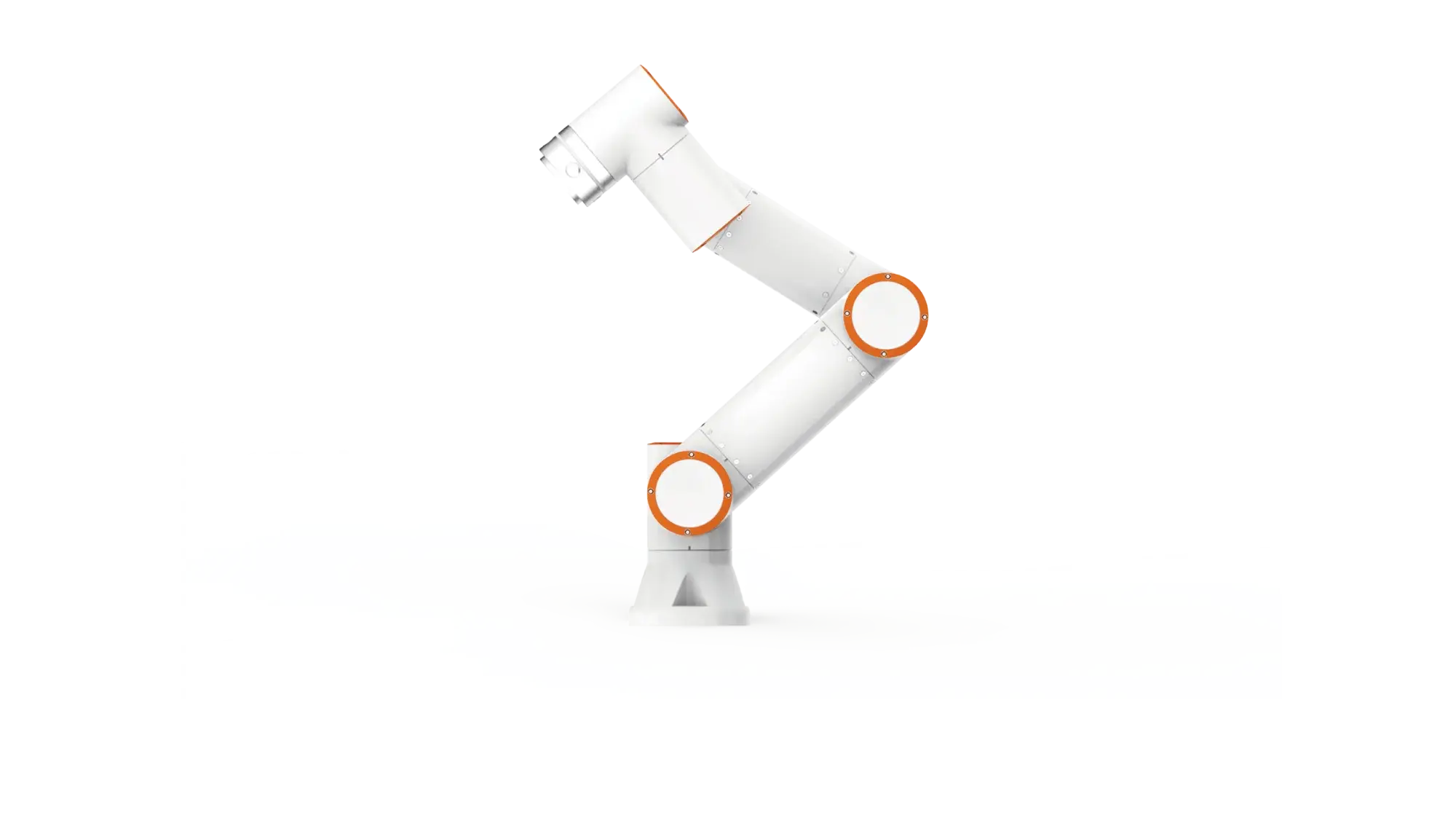

The Fairino FR5 is a six-degree-of-freedom collaborative robot designed for precision industrial automation tasks.
It delivers a maximum payload of 5 kg across a 922 mm working envelope, with repeatability of 0.02 mm and IP54-rated protection.
Weighing 22 kg, the robot's compact form factor suits space-constrained manufacturing environments.
The FR5 operates on a real-time EtherCAT control architecture and supports multiple communication protocols including TCP/IP and Modbus TCP/RTU, with optional Profinet, EtherCAT, and Ethernet/IP connectivity.
Programming flexibility is provided through C#, C++, Python, and ROS/ROS2 interfaces.

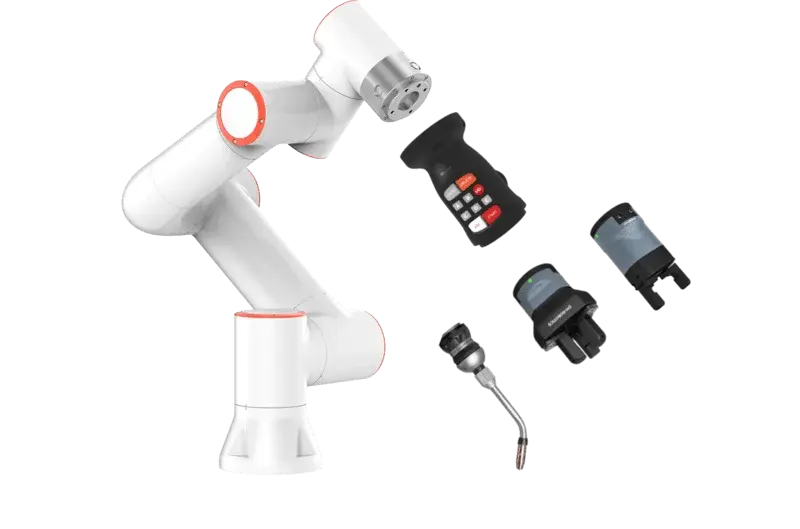

Operators can control the robot via an included 10.1-inch teach pendant or through a web application interface.
Typical applications include pick and place operations, quality inspection, adhesive dispensing, and assembly tasks.
An explosion-proof version is available as an option for hazardous environment deployment.
The system is suited for automation integrators and manufacturing operations requiring precise, flexible robotic manipulation in electronics, automotive, and general industrial settings.
