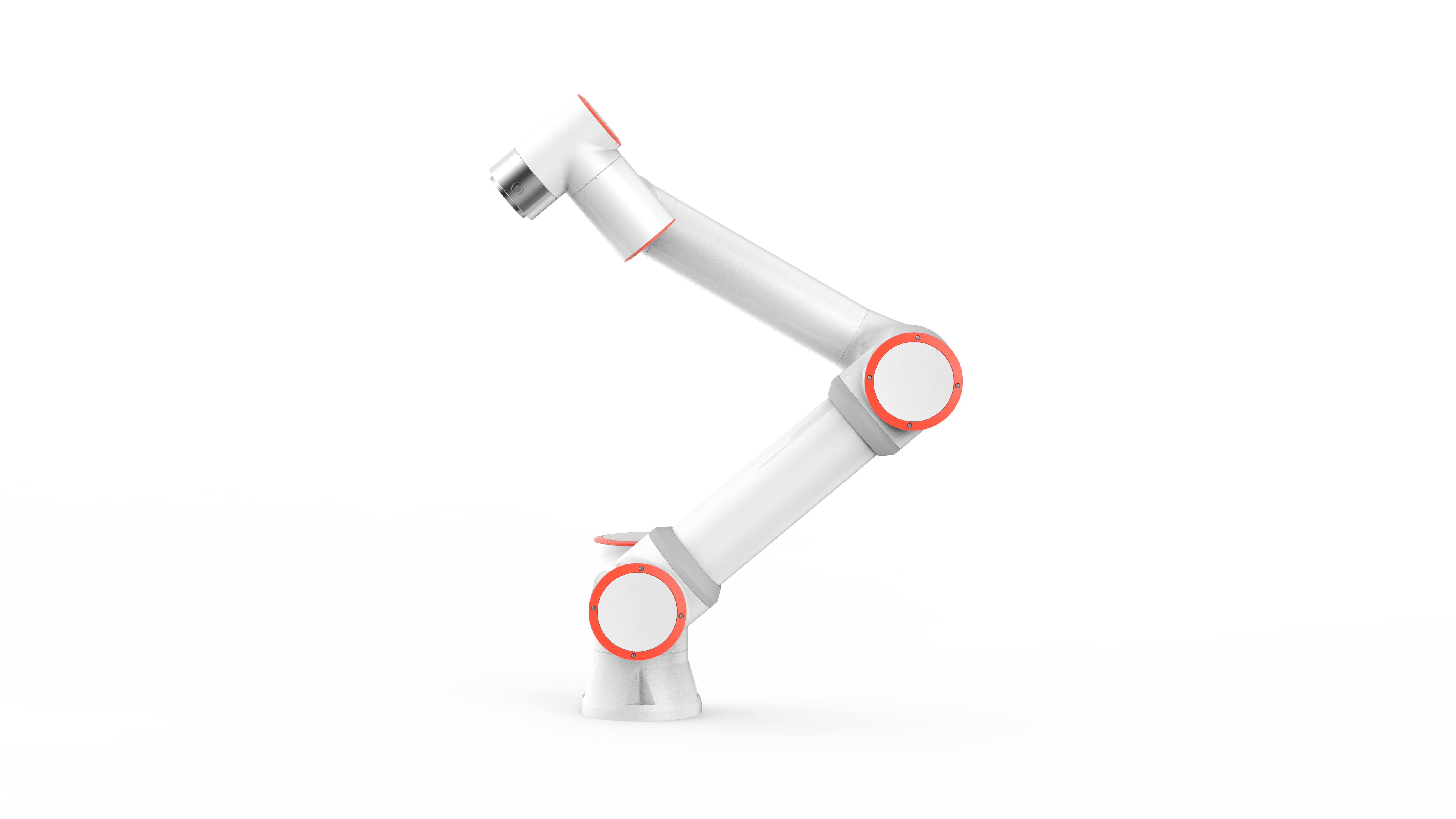

Fairino FR5 | 6DOF | 922mm | 5kg
Fairino
$8,998.80
Versatile Cobot for Precision Industrial Automation The Fairino FR5 is a 6-axis collaborative robot with a payload of 5 kg and a reach of 922 mm.
Product Description
The Fairino FR5 is a 6-axis collaborative robot with a payload of 5 kg and a reach of 922 mm.
With a repeatability of ±0.02 mm and a compact design (approx.
22 kg), it is ideal for precise robotics in industrial automation.
Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP.
Programming is possible via C#, C++, Python, ROS/ROS2.
Control is provided via a 10.1" teach pendant or web app, with real-time EtherCAT architecture.
Typical applications include pick & place, quality inspection, gluing, and assembly.
The FR5 is perfect for integrators and manufacturers in electronics, automotive, and new retail sectors seeking a powerful and flexible robotic arm.
FR5 took the lead in obtaining the first CR certification in the field of cobots.
It adopts a self-developed real-time control system, which integrates fully upgraded features such as flexibility, safety, flexibility, and ease operation, as well as excellent industrial-grade precision and stability.
With a repeatability of ±0.02 mm and a compact design (approx.
22 kg), it is ideal for precise robotics in industrial automation.
Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP.
Programming is possible via C#, C++, Python, ROS/ROS2.
Control is provided via a 10.1" teach pendant or web app, with real-time EtherCAT architecture.
Typical applications include pick & place, quality inspection, gluing, and assembly.
The FR5 is perfect for integrators and manufacturers in electronics, automotive, and new retail sectors seeking a powerful and flexible robotic arm.
FR5 took the lead in obtaining the first CR certification in the field of cobots.
It adopts a self-developed real-time control system, which integrates fully upgraded features such as flexibility, safety, flexibility, and ease operation, as well as excellent industrial-grade precision and stability.
Weight
5 kg
Dimensions
N/A
Part Number
FR5
RBTX SKU
RBTX-FAIR-0002
Max. Payload
5 kg
Max. Reach
922 mm
DOF
6
Weight
22 kg
Repeatability
0.02 mm
Max. Speed
1
Protection Class
IP54
With a repeatability of ±0.02 mm and a compact design (approx.
22 kg), it is ideal for precise robotics in industrial automation.
Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP.
Programming is possible via C#, C++, Python, ROS/ROS2.
Control is provided via a 10.1" teach pendant or web app, with real-time EtherCAT architecture.
Typical applications include pick & place, quality inspection, gluing, and assembly.
