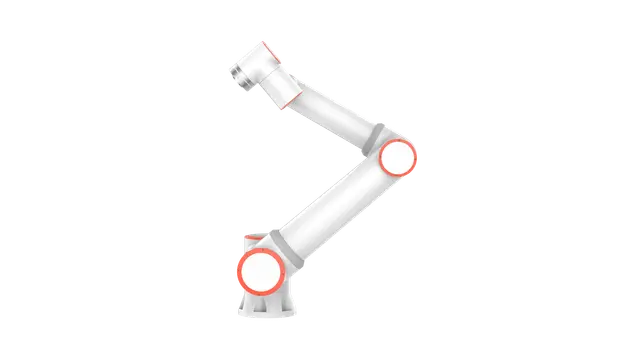

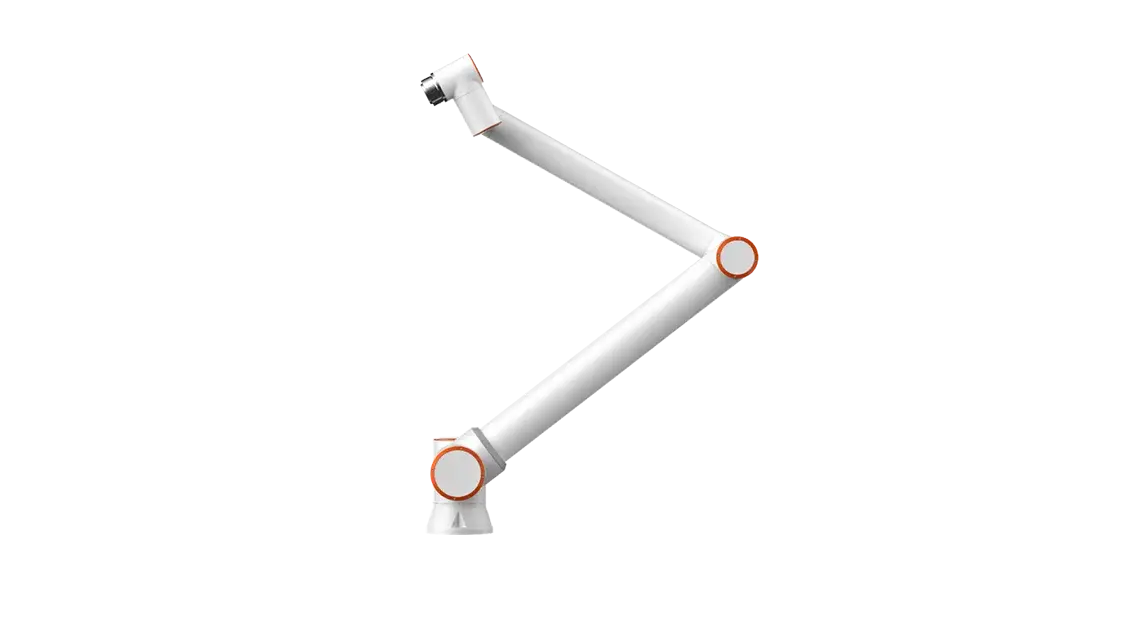

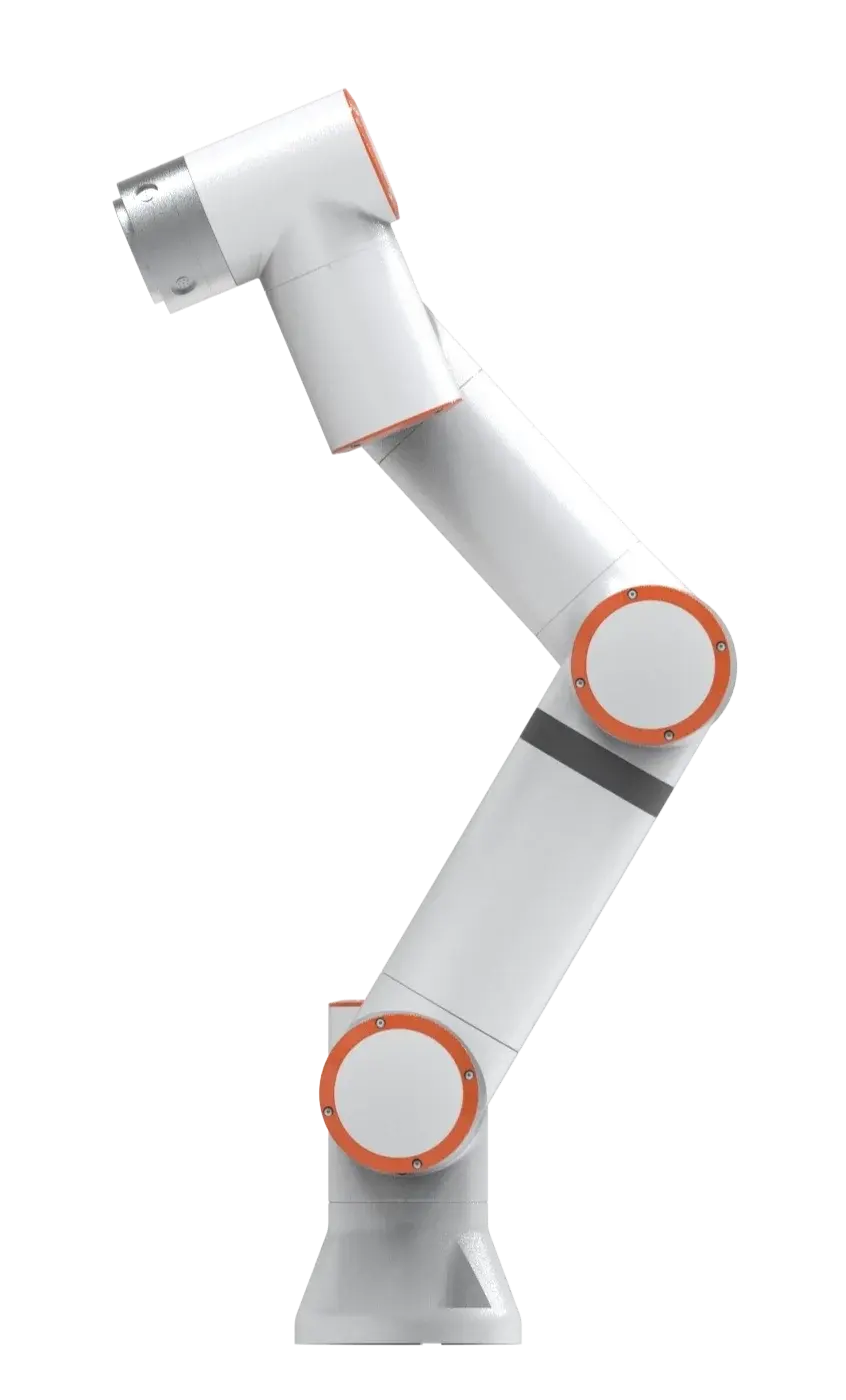

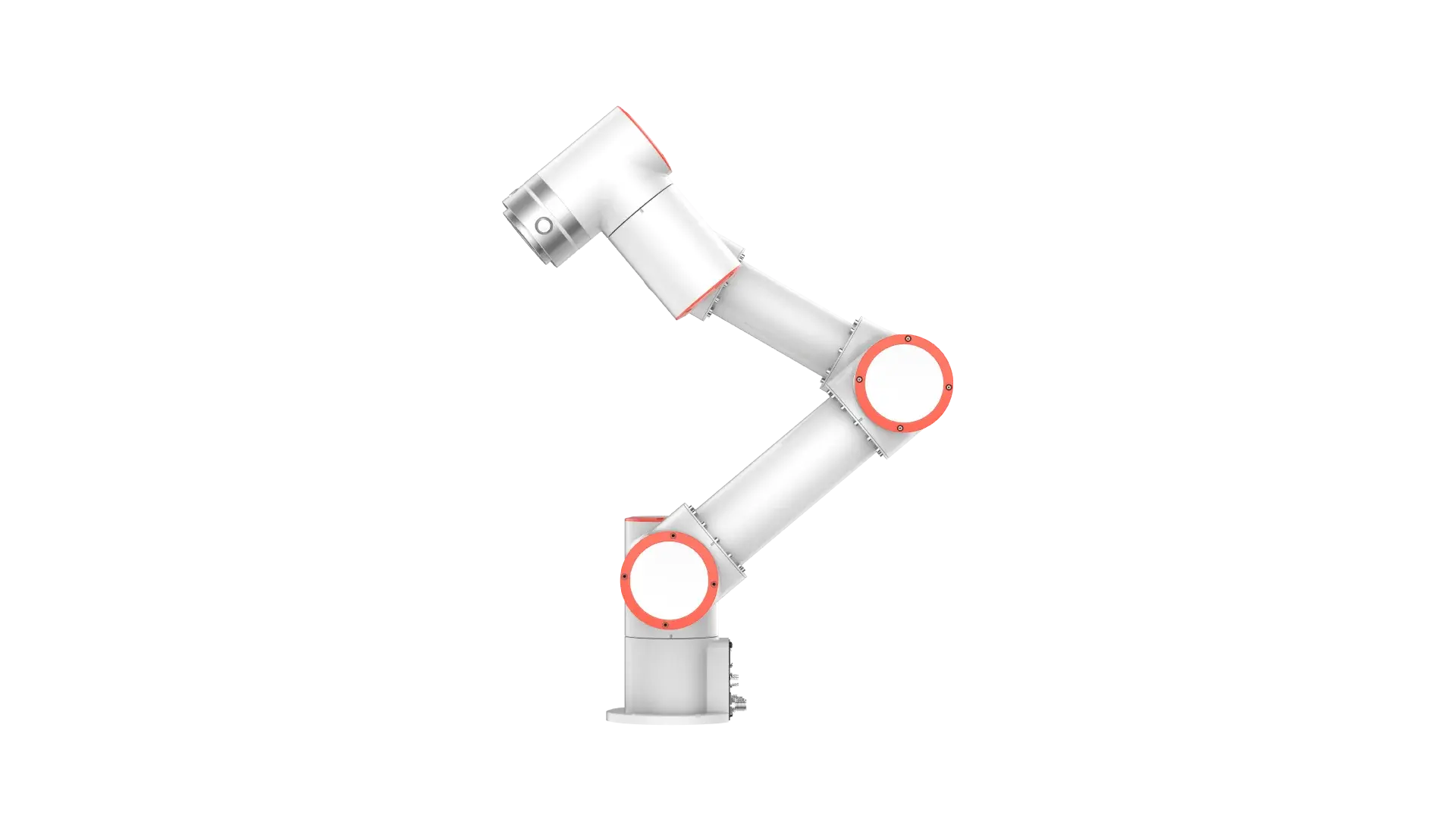

Fairino FR3 | 6DOF | 622mm | 3kg
Fairino
$9,880.38
Precision Cobot for Flexible Industrial Automation The Fairino FR3 is a 6-axis collaborative robot with a payload of 3 kg and a reach of 622 mm.
Product Description
The Fairino FR3 is a 6-axis collaborative robot with a payload of 3 kg and a reach of 622 mm.
With a repeatability of ±0.02 mm and a compact, lightweight design (approx.
15 kg), it is ideal for precise robotics in industrial automation.
Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP.
Programming is possible via C#, C++, Python, ROS/ROS2.
The robot is controlled via a 10.1" teach pendant or web app, and features EtherCAT architecture for real-time performance.
Typical applications include pick & place, quality inspection, gluing, and assembly in industries like electronics, semiconductors, and new retail.
The FR3 is perfect for integrators and manufacturers seeking a reliable, high-performance robotic arm.
FR3 is a new generation of six-axis cobot product based on human-robot collaboration technology.
Its application scenarios cover 3C, semiconductor, metal processing, glue dispensing, welding, new retail, etc.
creating the optimal solution for flexible intellectual manufacturing applications.
With a repeatability of ±0.02 mm and a compact, lightweight design (approx.
15 kg), it is ideal for precise robotics in industrial automation.
Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP.
Programming is possible via C#, C++, Python, ROS/ROS2.
The robot is controlled via a 10.1" teach pendant or web app, and features EtherCAT architecture for real-time performance.
Typical applications include pick & place, quality inspection, gluing, and assembly in industries like electronics, semiconductors, and new retail.
The FR3 is perfect for integrators and manufacturers seeking a reliable, high-performance robotic arm.
FR3 is a new generation of six-axis cobot product based on human-robot collaboration technology.
Its application scenarios cover 3C, semiconductor, metal processing, glue dispensing, welding, new retail, etc.
creating the optimal solution for flexible intellectual manufacturing applications.
Weight
3 kg
Dimensions
N/A
Part Number
DVX-EXFR-003
RBTX SKU
RBTX-FAIR-0019

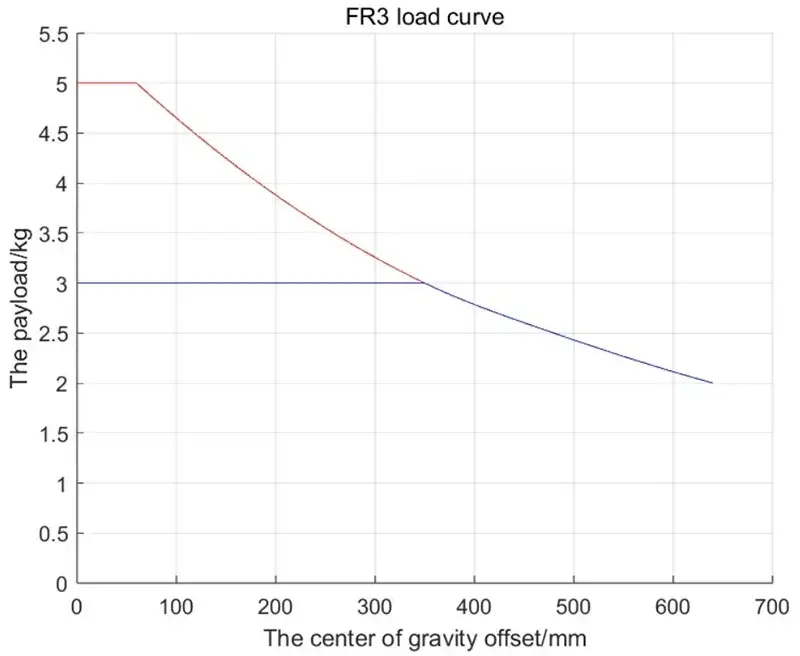

Max. Payload
3 kg
Max. Reach
622 mm
DOF
6
Weight
15 kg
Repeatability
0.02 mm
Max. Speed
1
Protection Class
IP54
With a repeatability of ±0.02 mm and a compact, lightweight design (approx.
15 kg), it is ideal for precise robotics in industrial automation.Optionally also available as explosion-proof version.
It supports TCP/IP, Modbus TCP/RTU, and optional protocols like Profinet, EtherCAT, and Ethernet/IP.
Programming is possible via C#, C++, Python, ROS/ROS2.
The FR3 is perfect for integrators and manufacturers seeking a reliable, high-performance robotic arm.
