Can the Fairino FR20 Palletizer run on standard AC power?

The Fairino FR20 runs on either AC 110V or 220V with no rewiring needed, making it compatible with standard industrial power supplies. You can switch between voltages without reconfiguring the unit.

How high can the Fairino FR20 stack pallets?

With the integrated lifting column, the Fairino FR20 stacks products up to 2,370 mm high. The column allows the robot to reach varying stack heights within this maximum range.

What pallet sizes does the FR20 handle?

The Fairino FR20 handles 1200x1000 mm and 1200x800 mm pallets. These are the standard European pallet dimensions supported by the system.

Can one person move the Fairino FR20 Palletizer?

Yes, a single operator can move the entire 280 kg unit including the lifting column, making it simple to reposition the robot on the floor for flexible layout changes.

How do you program palletizing patterns on the FR20?

The Fairino FR20 offers drag-and-drop programming through its integrated software, plus SDKs for C#, C++, and Python for custom logic. No-code palletizing patterns are built into the Fairino software, so you can set up standard stacking layouts without writing code.

What control options are available for the Fairino FR20?

You can control the FR20 via touch panel, WebApp, or mobile app from anywhere. Standard interfaces include Modbus, TCP/IP, and digital I/O, with optional Profinet, EtherCAT, and Ethernet/IP connectivity.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockHigh Payload

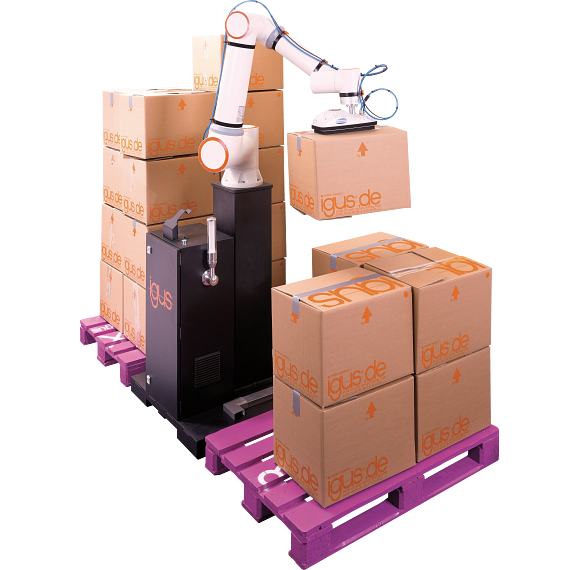

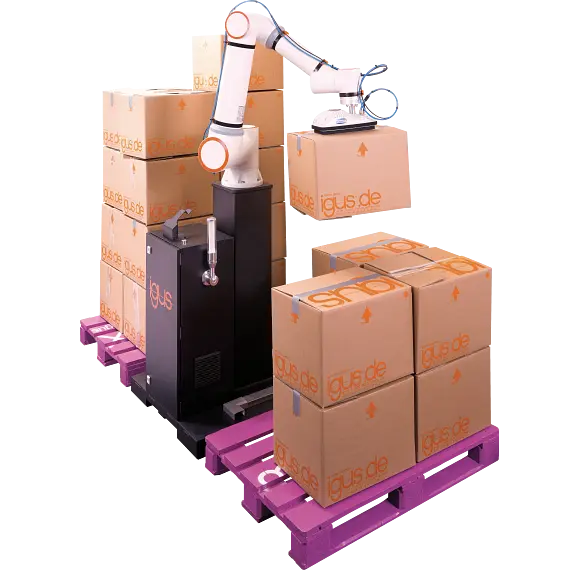

Fairino FR20 Palletizer with Lifting Column, 20 kg

Name: Fairino FR20 Palletizer with Lifting Column, 20 kg
Brand: Fairino
SKU: 3576
Price: 49500 USD
Availability: InStock

FAIRINO

$49,500.00

Fairino FR20 palletizing station for 20 kg payloads with 0.1 mm repeatability. Mobile unit with optional lifting column for stacking up to 2,370 mm. Supports standard pallets, drag-and-drop programming, and multiple control interfaces. Ideal for packaging lines and logistics automation.

Fairino FR20 Palletizer with Lifting Column, 20kg Payload:

The Fairino FR20 Palletizer is a modular palletizing robot designed for automated palletizing, palletizer machine applications, and flexible stacking needs in packaging lines, logistics centers, and manufacturing operations.

Key Specifications:

Payload: 20 kg
Stacking height with column: Up to 2,370 mm
Repeatability: 0.1 mm
Pallet sizes: 1200×1000 mm and 1200×800 mm
Mobile unit weight: 280 kg (with lifting column)
Power: AC 110V or 220V

What is the Fairino FR20 Palletizer used for?

The Fairino FR20 serves as a collaborative palletizer station for automated material handling, supporting multi-level stacking and palletizing of varied product sizes. Typical use cases include packaging line integration, robotic palletizer deployment in logistics, and machine tending where flexible, repeatable stacking patterns are required.

Features and Differentiators:

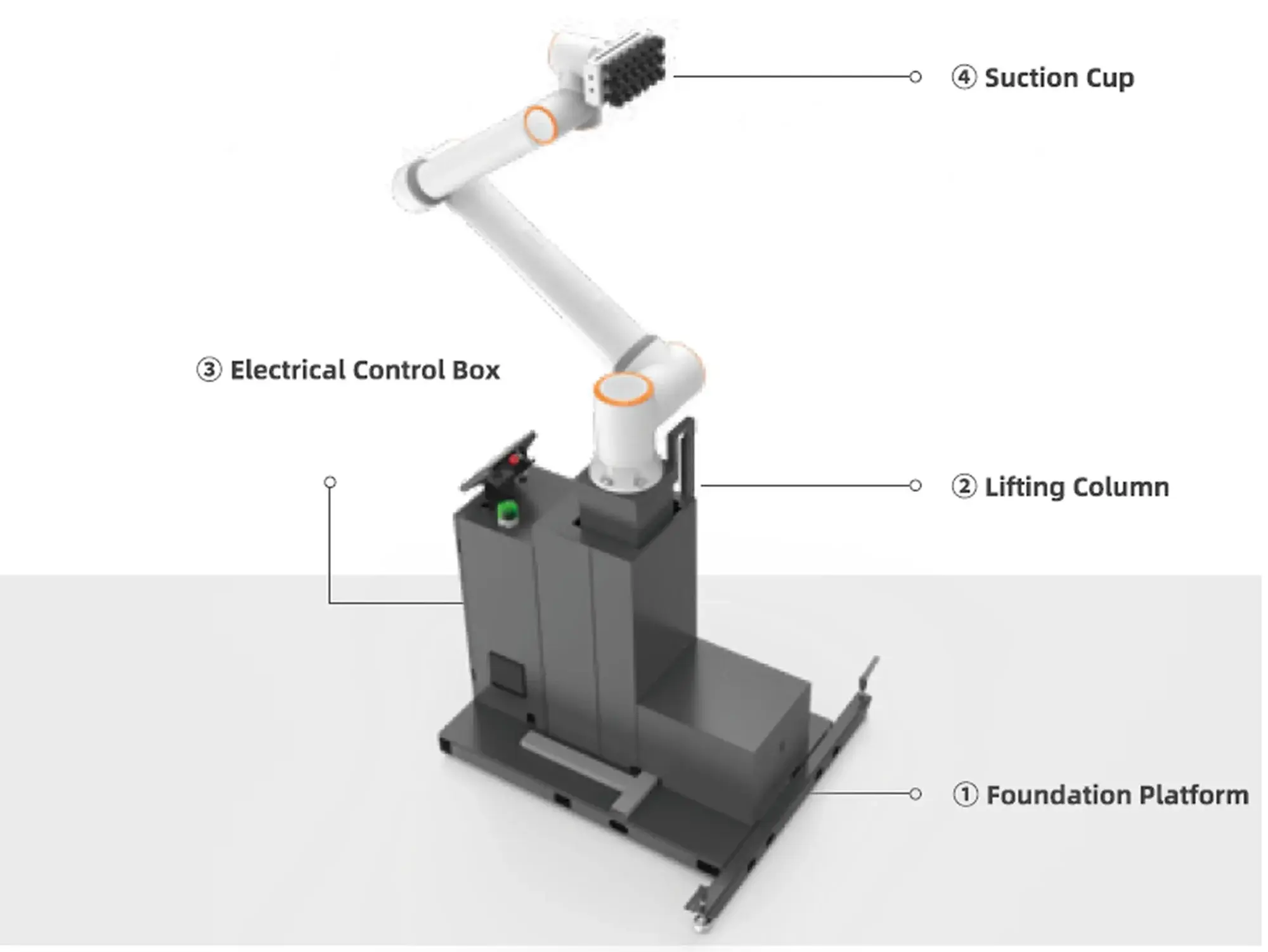

Modular design allows fixed-height or adjustable stacking with integrated lifting column
Simple mobility, repositioned by a single operator
Control options include touch panel, WebApp interface, and mobile device access
Graphical drag-and-drop programming; SDKs for C#, C++, Python
Standard interfaces: Modbus, TCP/IP, digital I/O; optional: Profinet, EtherCAT, Ethernet/IP
Integrated Fairino palletizing software for no-code pattern setup

Buyer Decision Criteria:

Ideal for high-mix packaging environments requiring rapid changeover
Mobile palletizer form factor supports adaptable floor layouts
Integrates with common automation standards for seamless deployment

Trust Signals:

Manufactured by Fairino, a globally recognized robotics company
Certifications: CE and ISO (see full documentation at manufacturer website)
Case studies available from logistics and packaging sectors highlight proven reliability
Real-world deployments reported by users for palletizing and mobile handling

Weight280 kg

Max Payload20 kg

Repeatability: 0.1 mm
Max. stacking height: 2
370 mm
Payload: 20 kg
Mounting Interface: Freestanding with lifting column
Power Supply: AC 110V or 220V
Maximum Stacking Height: 2,370 mm
Pallet Size: 1200 x 1000 mm, 1200 x 800 mm
Control Options: Onboard touch panel
WebApp interface
Mobile device access
Programming: C++
Graphical drag-and-drop
C#
Python SDKs
Communication Interfaces: Modbus
TCP/IP
EtherCAT
Digital I/O
Profinet (optional)
Ethernet/IP
Palletizing Software: Integrated Fairino palletizing software
Model: Fairino FR20

Runs on AC 110V or 220V, no rewiring needed
Handles 1200×1000 mm and 1200×800 mm pallets
One person moves the entire 280 kg unit with lifting column
Touch panel, WebApp, or mobile app control from anywhere
Drag-and-drop programming plus C#, C++, Python SDKs accelerate setup
Modbus, TCP/IP, digital I/O standard, Profinet/EtherCAT/Ethernet/IP optional
No-code palletizing patterns via integrated Fairino software
Stacks up to 2,370 mm high with integrated lifting column
Holds 0.1 mm repeatability for consistent layer placement

: The Fairino FR20 runs on either AC 110V or 220V with no rewiring needed, making it compatible with standard industrial power supplies. You can switch between voltages without reconfiguring the unit.
: With the integrated lifting column, the Fairino FR20 stacks products up to 2,370 mm high. The column allows the robot to reach varying stack heights within this maximum range.
: The Fairino FR20 handles 1200x1000 mm and 1200x800 mm pallets. These are the standard European pallet dimensions supported by the system.
: Yes, a single operator can move the entire 280 kg unit including the lifting column, making it simple to reposition the robot on the floor for flexible layout changes.
: The Fairino FR20 offers drag-and-drop programming through its integrated software, plus SDKs for C#, C++, and Python for custom logic. No-code palletizing patterns are built into the Fairino software, so you can set up standard stacking layouts without writing code.
: You can control the FR20 via touch panel, WebApp, or mobile app from anywhere. Standard interfaces include Modbus, TCP/IP, and digital I/O, with optional Profinet, EtherCAT, and Ethernet/IP connectivity.

Automated palletizing robot versus manual or fixed-height stacking:

The Fairino FR20 palletizer combines a 20 kg payload robot with an integrated lifting column to automate and standardize pallet building. Choose this when repeatability, throughput, and layout flexibility matter more than lowest cost, and when your pallets fit the 1200×1000 mm or 1200×800 mm standard.

For high-mix packaging lines where product sizes change frequently, drag-and-drop no-code patterns and integrated Fairino software cut programming time and reduce setup errors versus manual restacking.
Where floor space is tight or layouts shift, the 280 kg mobile unit moves with one operator and requires no rewiring between AC 110V and 220V outlets, avoiding costly relocation downtime.
For stacks taller than 2 m, the integrated lifting column reaches up to 2,370 mm without extra infrastructure, enabling compact warehouses to maximize pallet height instead of footprint.
On high-throughput lines with consistent layer placement demands, 0.1 mm repeatability ensures stable stacks and fits into automated downstream conveyors without manual adjustment.
When your automation system uses Modbus, TCP/IP, or optional Profinet and EtherCAT, standard connectivity allows plug-and-play integration without custom middleware.
