What can the Fairino FR20 be used for?

The Fairino FR20 handles precision assembly, gear assembly, palletizing, and material handling in automotive and logistics environments. Its 1,854 mm reach and 20 kg payload make it suitable for large-scale assembly and pick-and-place operations.

What is the repeatability of the FR20-IP65?

The Fairino FR20-IP65 offers plus or minus 0.1 mm repeatability, making it suitable for demanding precision assembly tasks that require consistent accuracy.

Can the Fairino FR20 work in hazardous environments?

An explosion-proof variant of the Fairino FR20 is available for hazardous environments. The standard model has an IP65 rating for dust and water resistance.

What programming languages does the FR20 support?

The Fairino FR20 supports Python, ROS, ROS2, C++, and a graphical interface for programming. You can operate it via teach pendant or web application.

What communication protocols does the Fairino FR20-IP65 use?

The FR20-IP65 supports TCP/IP and Modbus TCP/RTU communication by default, with optional support for Profinet and EtherCAT.

How much does the Fairino FR20 weigh and what is its reach?

The Fairino FR20 weighs 85 kg and has a reach of 1,854 mm, allowing it to cover large work areas while remaining relatively lightweight for industrial deployment.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockHigh Payload

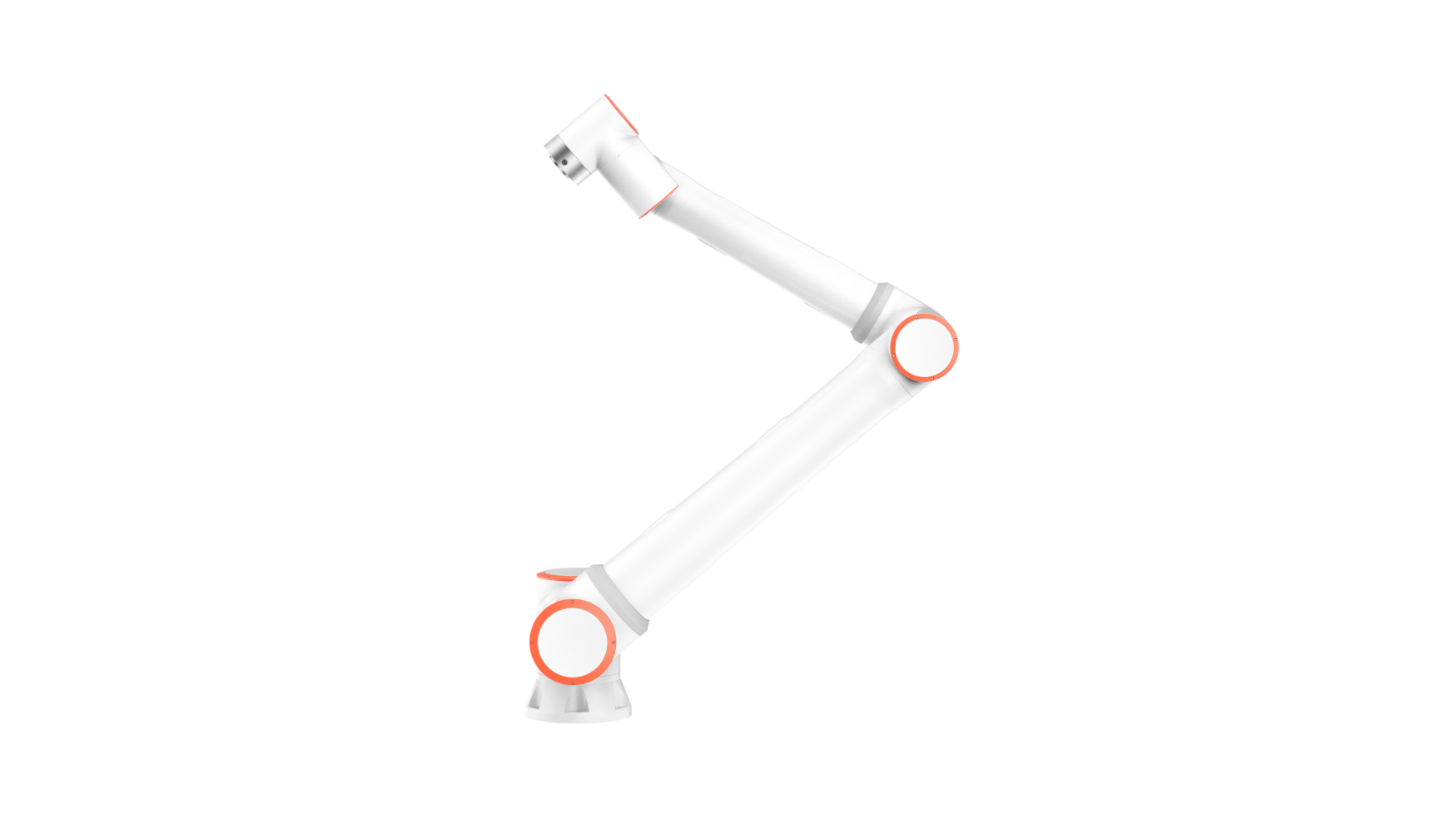

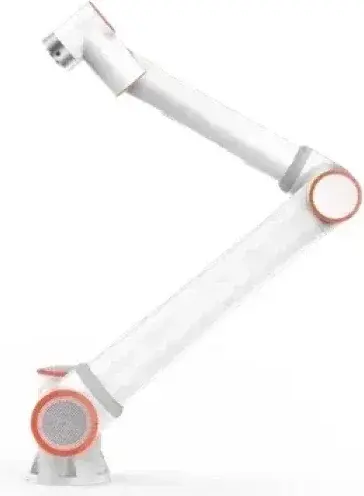

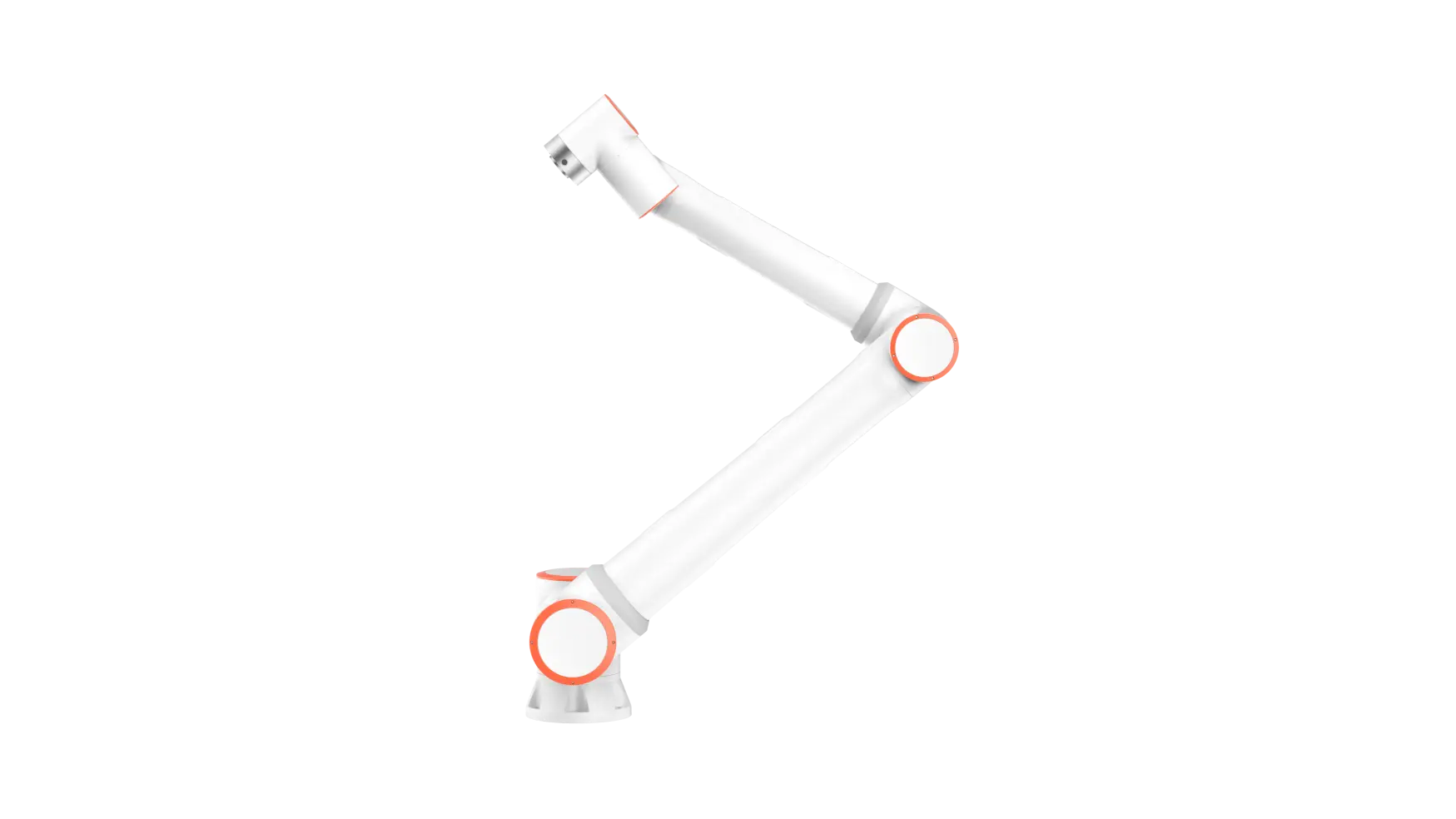

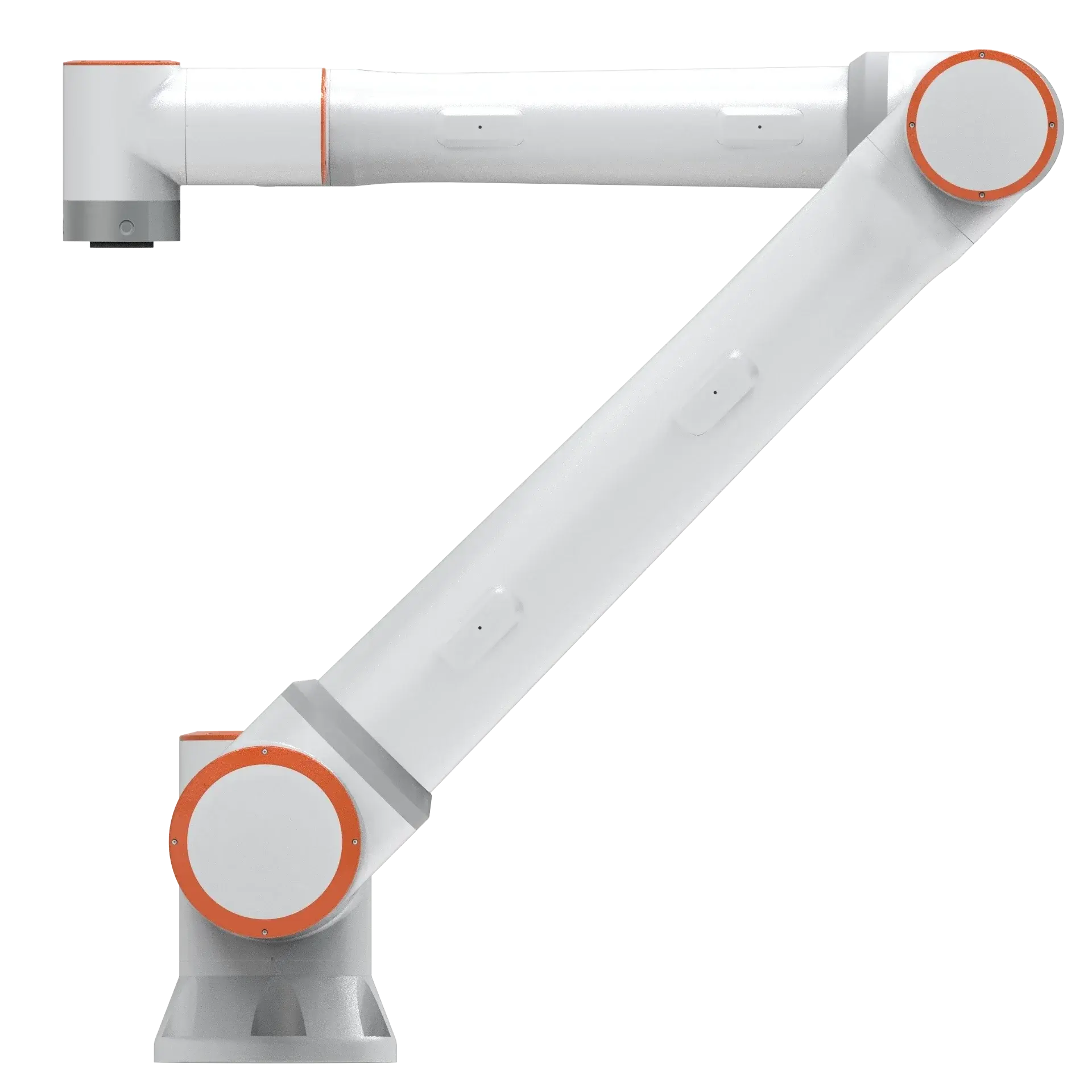

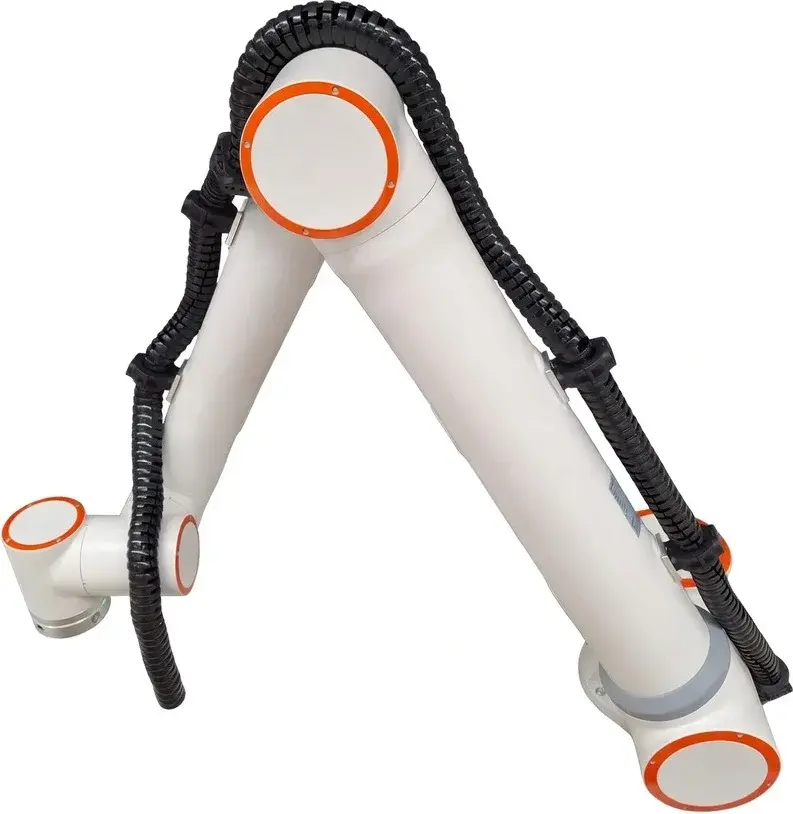

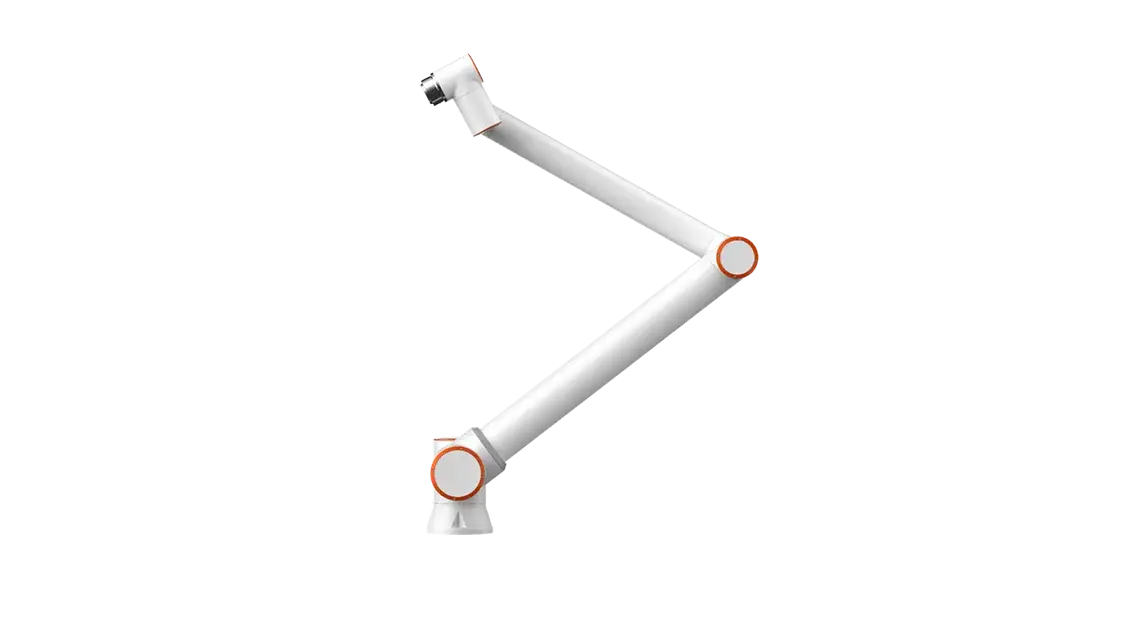

Fairino FR20 Industrial Robot, 6-axis, 20 kg, 0.1 mm

Name: Fairino FR20 Industrial Robot, 6-axis, 20 kg, 0.1 mm
Brand: Fairino
SKU: 3492
Price: 28600 USD
Availability: InStock

FAIRINO

$28,600.00

Fairino FR20 collaborative robot with 1,854 mm reach, 20 kg payload, and ±0.1 mm repeatability. IP65-rated 6-axis cobot for assembly, palletizing, and material handling. TCP/IP and Modbus TCP/RTU standard; Python, ROS, C++, and graphical programming supported.

Overview:

Fairino FR20-IP65 is a six-axis collaborative industrial robot engineered for large-scale assembly, palletising, and material handling in automotive and logistics environments.

Key Specifications:

Payload: 20 kg
Reach: 1,854 mm
Repeatability: ±0.1 mm
Weight: 85 kg
IP Rating: IP65

Features:

Explosion-proof robot variant available for hazardous environments
Supports TCP/IP and Modbus TCP/RTU communication protocols by default
Optional support for Profinet and EtherCAT
Programming interfaces include Python, ROS, ROS2, C++, and graphical interface
Operable via teach pendant or web application

Applications:

Collaborative robot for assembly, gear assembly, and pick-and-place operations
Industrial cobot reach ideal for palletising and material handling
Deployed in automotive manufacturing and logistics sectors

Authority & Compliance:

Fairino FR20-IP65 meets industrial reliability standards and has been successfully implemented at multiple automotive and logistics sites
Explosion-proof version available (not default)

Comparison:

Compared to similar cobots, the FR20-IP65 offers extended reach and 20 kg payload, outperforming many standard collaborative robots in its class

Weight85 kg

Max. Payload20 kg

Max. Reach: 1
854 mm
DOF: 6
Repeatability: 0.1 mm
Max. Speed: 2
Protection Class: IP65
Model: FR20-IP65
Reach: 1,854 mm
Payload: 20 kg
IP Rating: IP65
Communications: TCP/IP
Modbus TCP
Modbus RTU
Profinet (optional)
EtherCAT (optional)
Programming: Python
ROS/ROS2
C++
Graphical Interfaces
Control: Teach Pendant, Web Application
Applications: Gear assembly
Palletizing
Material handling
Axes: 6
Explosion Proof: Optional

Precision assembly, ±0.1 mm repeatability for demanding automation
Hazardous environments, explosion-proof variant available
Connect via TCP/IP, Modbus TCP/RTU, optional Profinet and EtherCAT
Code in Python, ROS, ROS2, C++, or graphical interface
Operate from teach pendant or web app
Handles gear assembly, palletizing, material handling reliably
1,854 mm reach, 20 kg payload, 85 kg weight, IP65 rated

: The Fairino FR20 handles precision assembly, gear assembly, palletizing, and material handling in automotive and logistics environments. Its 1,854 mm reach and 20 kg payload make it suitable for large-scale assembly and pick-and-place operations.
: The Fairino FR20-IP65 offers plus or minus 0.1 mm repeatability, making it suitable for demanding precision assembly tasks that require consistent accuracy.
: An explosion-proof variant of the Fairino FR20 is available for hazardous environments. The standard model has an IP65 rating for dust and water resistance.
: The Fairino FR20 supports Python, ROS, ROS2, C++, and a graphical interface for programming. You can operate it via teach pendant or web application.
: The FR20-IP65 supports TCP/IP and Modbus TCP/RTU communication by default, with optional support for Profinet and EtherCAT.
: The Fairino FR20 weighs 85 kg and has a reach of 1,854 mm, allowing it to cover large work areas while remaining relatively lightweight for industrial deployment.

When to choose this cobot versus lighter collaborative robots:

The FR20 is a 6-axis collaborative robot built for tasks that demand both precision and reach. It sits between compact tabletop cobots (typically under 10 kg payload) and heavy-duty industrial arms, making it suited to mid-to-large assembly and material handling in production lines.

For gear assembly and precision tasks on a shared cell, the ±0.1 mm repeatability ensures tight tolerances without sacrificing worker safety.
For palletizing and pick-and-place across long distances, the 1,854 mm reach and 20 kg payload handle heavier loads than lighter cobots while staying compact at 85 kg.
For hazardous or explosive environments, the explosion-proof variant extends your options beyond standard collaborative robots.
For existing automotive or logistics production lines, native TCP/IP, Modbus, and optional Profinet and EtherCAT integration reduce retrofit complexity.
For flexible programming, support for Python, ROS, ROS2, C++, and graphical interfaces suits both rapid prototyping and mature production deployments.
