What is the igus Energy Chain Set for Universal Robots UR16 compatible with?

The igus Energy Chain Set for Universal Robots UR16 is compatible with UR16 cobots using TRE.30 or TRE.40.B series igus energy chains. You choose the energy chain series based on your layout and cable capacity needs.

What comes in the UR16 energy chain kit?

The kit includes one entry bracket with strain relief, one cobot clamp with integrated mounting bracket and strain relief, and three additional cobot clamps with mounting brackets. This provides cable mounting and strain relief hardware for secure routing along the robot arm.

Where do you mount the cable management on a UR16?

The modular clamps attach at multiple joints along the UR16 arm to prevent cable sag and reduce wear at critical motion points. The entry bracket secures the initial cable entry.

Does cable management really extend cable life?

Yes, the igus Energy Chain Set extends cable life by protecting cables against motion-point wear through robust strain relief and organized routing. This reduces damage at the articulated joints where the robot moves repeatedly.

What tasks is this UR16 cable management system used for?

The energy chain set supports palletizing, pick-and-place, and machine tending applications. It organizes and protects cables on any UR16 deployment regardless of the task.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCobot-Ready

igus Energy Chain Set for Universal Robots UR16

Name: igus Energy Chain Set for Universal Robots UR16
Brand: igus
SKU: 3533
Price: 595 USD
Availability: InStock

igus®

$595.00

igus energy chain set for UR16 cobots with mounting brackets, strain relief, and modular clamps for organized cable routing along the robot arm.

The igus Energy Chain Set for Universal Robots UR16 is an industrial cable management kit designed to organize and protect cables on UR16 collaborative robot installations.

Key Features:

Compatible with UR16 cobots from Universal Robots using TRE.30 or TRE.40.B series igus energy chains
Includes cable mounting and strain relief hardware for secure, efficient cable routing along articulated arms
Designed for modular attachment at multiple robot joints to prevent cable sag and reduce wear
Suitable for use with energy chain cable, igus cable chains, and related cable management solutions

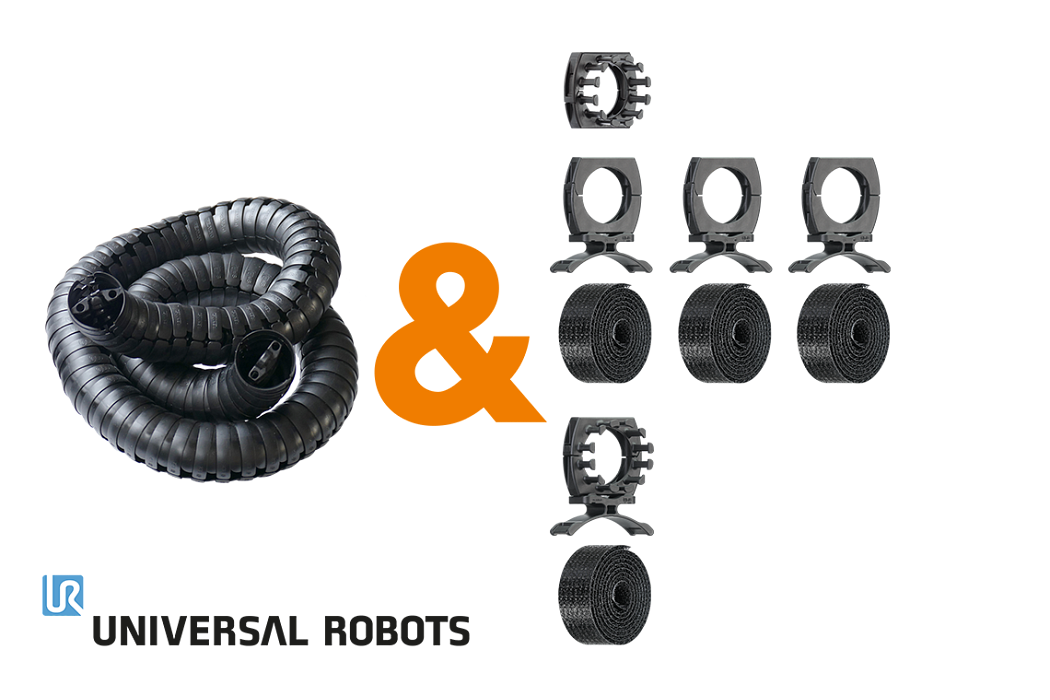

Kit Contents:

One mounting bracket with strain relief for initial cable entry
One cobot clamp with integrated mounting bracket and strain relief
Three additional cobot clamps with mounting brackets

Benefits and Applications:

Ensures organized, reliable cable routing for tasks such as palletizing, pick-and-place, and machine tending
Helps extend cable life by reducing wear at critical motion points through robust strain relief
Supports quick, modular installation compatible with typical UR16 deployment constraints

Choosing TRE.30 vs TRE.40.B:

TRE.30 series energy chain is suited for most compact UR16 layouts where reduced profile is needed
TRE.40.B series offers increased capacity for additional or larger diameter cables

Weight0.89 kg

Mounting Interface: Custom for UR16 collaborative robot
Energy Chain Series: TRE.30 or TRE.40.B
Included components: 1 mounting bracket with strain relief, 1 cobot clamp with mounting bracket and strain relief, 3 additional cobot clamps with mounting brackets but without strain relief

Organizes UR16 cables with TRE.30 or TRE.40.B igus energy chains
Mounts at multiple joints to prevent cable sag and reduce wear
Includes one entry bracket and four cobot clamps with strain relief
Extends cable life by protecting against motion-point wear
Supports palletizing, pick-and-place, and machine tending tasks

: The igus Energy Chain Set for Universal Robots UR16 is compatible with UR16 cobots using TRE.30 or TRE.40.B series igus energy chains. You choose the energy chain series based on your layout and cable capacity needs.
: The kit includes one entry bracket with strain relief, one cobot clamp with integrated mounting bracket and strain relief, and three additional cobot clamps with mounting brackets. This provides cable mounting and strain relief hardware for secure routing along the robot arm.
: The modular clamps attach at multiple joints along the UR16 arm to prevent cable sag and reduce wear at critical motion points. The entry bracket secures the initial cable entry.
: Yes, the igus Energy Chain Set extends cable life by protecting cables against motion-point wear through robust strain relief and organized routing. This reduces damage at the articulated joints where the robot moves repeatedly.
: The energy chain set supports palletizing, pick-and-place, and machine tending applications. It organizes and protects cables on any UR16 deployment regardless of the task.

Organized cable routing versus unsecured cable runs:

The igus Energy Chain Set for Universal Robots UR16 protects cables along the moving arm joints where pinching and wear occur most, compared to leaving cables loose or relying on tape and clips. Choose this kit when cable damage and downtime matter more than initial savings.

For palletizing and pick-and-place tasks with repetitive arm motion, the multi-joint mounting system prevents cable sag at elbows and wrists where flex fatigue concentrates.
In machine tending cells where the UR16 works near machinery, organized chains keep cables away from tool paths and reduce accidental snags that halt operations.
When cable lifespan is a cost driver, strain relief at entry and clamp points extends service life by protecting conductors from the stress of rapid articulation.
For compact cell layouts, the TRE.30 series chain keeps cable profile low; upgrade to TRE.40.B if you need to run additional or thicker cables without adding bulk.
