What is an electric gripper?

An electric gripper is a robotic end effector that uses electric actuation to move two jaws in parallel for gripping objects, enabling precise and repeatable handling in automation tasks. The SCHUNK EGP Series uses a brushless DC servomotor to deliver consistent gripping force.

What is the main purpose of a gripper?

A gripper is designed to pick up, hold, and precisely position small workpieces during assembly, testing, and pick-and-place operations in automated systems. The SCHUNK EGP Series handles workpieces up to 1.05 kg with 0.02 mm repeatability.

What is a parallel gripper?

A parallel gripper moves two jaws toward each other in parallel motion to grip objects with consistent force across the entire stroke. The SCHUNK EGP Series delivers 215 N of gripping force with an 8 mm stroke per jaw.

How much can the SCHUNK EGP Series Electric Gripper lift?

The SCHUNK EGP Series reliably handles workpieces up to 1.05 kg and delivers a maximum gripping force of 215 N. Its brushless DC servomotor ensures consistent grip strength across all finger lengths.

Can I use the SCHUNK EGP Series in food or pharmaceutical environments?

Yes, the SCHUNK EGP Series uses food-grade lubrication, making it suitable for laboratory, medical, and pharmaceutical settings where traditional lubricants cannot be used. Its compact 0.51 kg design also fits confined spaces in sensitive environments.

What is the stroke on the SCHUNK EGP Series gripper?

The SCHUNK EGP Series has an 8 mm stroke per jaw, which allows handling of parts larger than typical 6 mm stroke grippers while maintaining the compact footprint needed for precision automation.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPrecise Handling

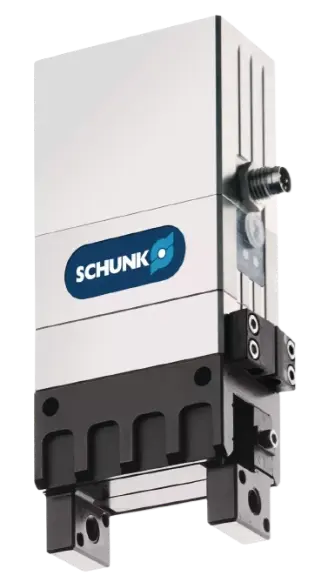

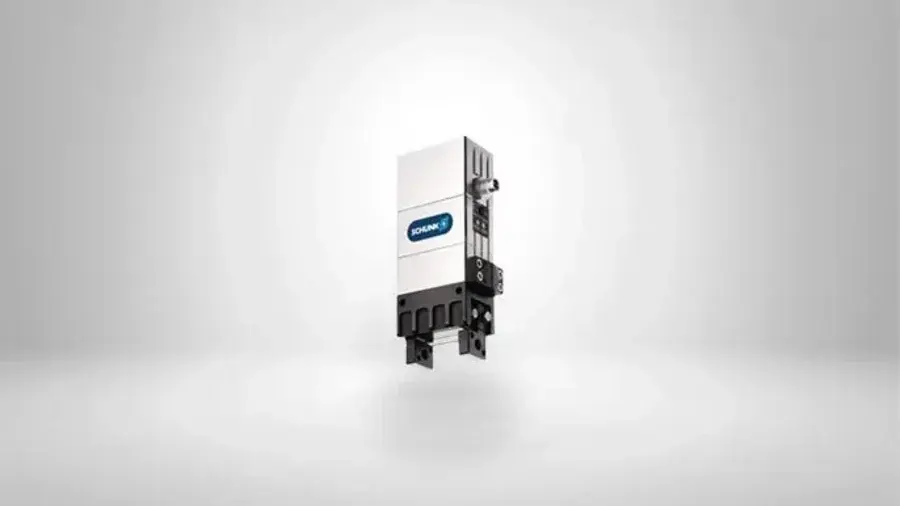

SCHUNK EGP Series Electric Gripper, 215 N, 8 mm Stroke

Name: SCHUNK EGP Series Electric Gripper, 215 N, 8 mm Stroke
Brand: SCHUNK
SKU: 3036
Price: 1695 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$1,695.00

SCHUNK EGP Series electric parallel gripper for small-component automation. 215 N gripping force, 8 mm stroke per jaw, 0.02 mm repeatability, brushless DC motor, food-grade lubrication. Compact design fits constrained spaces. Max 55°C ambient.

Description:

The SCHUNK EGP Series Electric Gripper is an electric parallel gripper designed for precise small-component automation in industries such as laboratory, medical, pharmaceutical, electronics, and high-speed assembly lines.

Key Specifications:

Maximum gripping force: 215 N
Stroke per jaw: 8 mm
Repeatability: 0.02 mm
Weight: 0.51 kg
Recommended workpiece weight: up to 1.05 kg
Max ambient temperature: 55°C

Features and Benefits:

Brushless DC servomotor delivers consistent gripping force with extended service life across all allowable finger lengths.
Food-grade lubrication makes SCHUNK EGP Series suitable for environments where traditional lubricants cannot be used, such as sensitive laboratory and pharmaceutical settings.
Compact build allows installation in confined spaces where larger grippers are impractical.
Offers precise handling for assembly, testing, and pick-and-place of small workpieces.

Frequently Asked Questions:

What is an electric parallel gripper? An electric parallel gripper is a robotic end effector that uses electric actuation to move two jaws in parallel for gripping objects, enabling precise, repeatable handling in automation tasks.
How much force can the SCHUNK EGP Series Electric Gripper provide? The SCHUNK EGP Series can deliver a gripping force of up to 215 N.
What applications is part number 310960 designed for? SCHUNK EGP Series grippers are used in electronics handling, laboratory automation, medical testing systems, and small-parts assembly lines where accuracy and hygiene are vital.

Comparative Information:

Compared to electric parallel grippers with shorter stroke lengths, the SCHUNK EGP Series Electric Gripper offers an 8 mm jaw stroke which allows for versatile handling of parts larger than those managed by typical 6 mm stroke grippers. Users seeking more force or longer stroke may consider other SCHUNK models or competitive grippers depending on payload and workspace requirements.

Related End Effectors:

See SCHUNK PGN Series for pneumatic parallel grippers with higher force requirements.

Weight0.51 kg

Stroke per jaw8 mm

Max Gripping force: 215 N
Recommended workpiece weight: 1.05 kg
Propulsion Method: Electric
Max. ambient temperature: 55 ℃
Repeatability: 0.02 mm
Payload: 1.05 kg
Stroke: 8 mm
Gripping Force: 215 N
Motor type: Brushless DC Servomotor
Ambient Temperature: 55°C
Lubrication: Food-grade

Grips small components with 215 N force, compact design for precision automation
Brushless DC servomotor ensures consistent 215 N grip across all finger lengths
Food-grade lubrication enables use in lab, medical, and pharmaceutical settings
Repeats to 0.02 mm, handles workpieces up to 1.05 kg reliably
8 mm stroke per jaw accommodates larger parts than typical 6 mm grippers
Weighs just 0.51 kg, fits confined spaces where standard grippers won't

: An electric gripper is a robotic end effector that uses electric actuation to move two jaws in parallel for gripping objects, enabling precise and repeatable handling in automation tasks. The SCHUNK EGP Series uses a brushless DC servomotor to deliver consistent gripping force.
: A gripper is designed to pick up, hold, and precisely position small workpieces during assembly, testing, and pick-and-place operations in automated systems. The SCHUNK EGP Series handles workpieces up to 1.05 kg with 0.02 mm repeatability.
: A parallel gripper moves two jaws toward each other in parallel motion to grip objects with consistent force across the entire stroke. The SCHUNK EGP Series delivers 215 N of gripping force with an 8 mm stroke per jaw.
: The SCHUNK EGP Series reliably handles workpieces up to 1.05 kg and delivers a maximum gripping force of 215 N. Its brushless DC servomotor ensures consistent grip strength across all finger lengths.
: Yes, the SCHUNK EGP Series uses food-grade lubrication, making it suitable for laboratory, medical, and pharmaceutical settings where traditional lubricants cannot be used. Its compact 0.51 kg design also fits confined spaces in sensitive environments.
: The SCHUNK EGP Series has an 8 mm stroke per jaw, which allows handling of parts larger than typical 6 mm stroke grippers while maintaining the compact footprint needed for precision automation.

Electric vs. Pneumatic Grippers for Precision Small-Parts Handling:

The SCHUNK EGP Series is a compact electric gripper designed for precise, repeatable automation of small components. Choose this electric model over pneumatic alternatives when you need consistent force control, compact form factor, and food-safe operation in confined spaces or regulated environments.

For workpieces under 1 kg in tight robotic cells, the 0.51 kg weight and compact design fit where standard pneumatic grippers cannot reach.
When repeatability and grip consistency matter, the brushless DC servomotor holds 215 N force uniformly across all finger lengths, critical for precision pick-and-place and assembly tasks.
In laboratory, medical, or pharmaceutical settings, food-grade lubrication eliminates cross-contamination risks that standard lubricants create.
For parts requiring more than 6 mm jaw opening, the 8 mm stroke accommodates larger components without sacrificing precision to 0.02 mm.
If you need over 215 N of force or longer strokes for heavier loads, consider pneumatic alternatives like the SCHUNK PZN Plus, which delivers 580 N.
