EIG3 3-finger gripper | electrical
Effecto Group SpA
Electric 3-finger parallel gripper from Effecto Group featuring 10 mm stroke per jaw, 30 N maximum gripping force, and 0.03 mm repeatability for adaptive handling of light components.

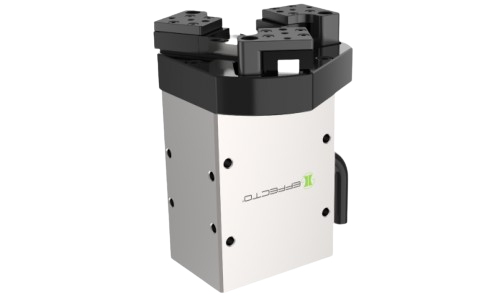

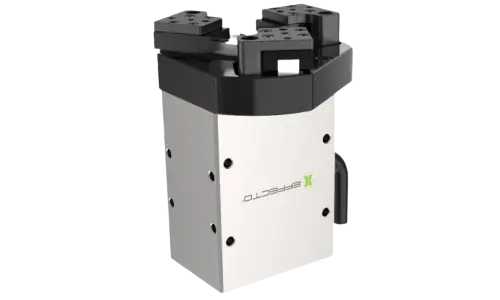

The EIG3 10010 is an electric 3-finger parallel gripper designed for precise, programmable gripping in industrial automation.
Manufactured by Effecto Group SpA, it delivers 10 mm stroke per jaw with a maximum gripping force of 30 N and is recommended for workpieces up to 0.1 kg.
Repeatability of 0.03 mm supports consistent positioning in precision assembly and handling tasks.
The gripper features three symmetrically actuated fingers in a compact, slim rectangular body weighing 0.43 kg.
An embedded controller enables direct actuation and programmable grip control, with integrated LED status feedback for real-time monitoring.
Standard communication includes Modbus RTU and digital I/O.
Additional protocols such as USB, Ethernet, PROFINET, and EtherCAT can be enabled through protocol converters, providing compatibility with a range of PLC and control systems.
Applications include pick-and-place operations, assembly automation, and precision handling tasks where controlled electric gripping, adjustable speed, and fast cycle times are required.
The three-finger configuration offers adaptive centering for cylindrical and irregularly shaped components.
