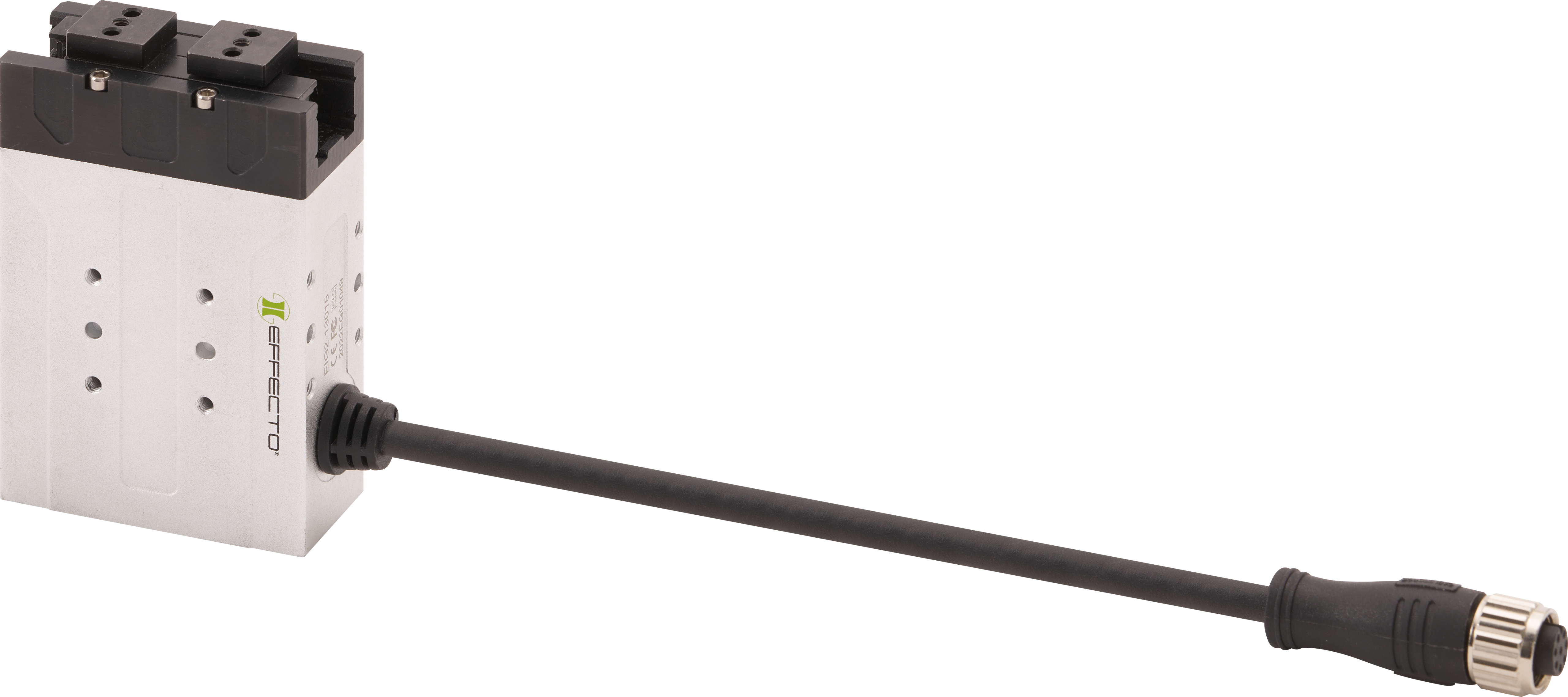

EIG2 - Electric Parallel Gripper | 4 sizes
Effecto Group SpA
$1,629.92
Compact, programmable electric parallel gripper for precise, adaptive small-part handling.
Product Description
The Effecto EIG2 electric parallel gripper combines compact design with advanced programmable force and position control.
With its slim rectangular housing and five mounting orientations, it integrates easily into a wide range of EOAT setups.
The embedded controller enables precise movement, adjustable gripping force, and optimized speed for fast open/close cycles.
The gripper offers multiple communication modes, including Modbus RTU and digital I/O, with optional expansion to USB, Ethernet, CAN, PROFINET or EtherCAT.
Model variants cover strokes from 6 to 40 mm and gripping forces up to 280 N, making the EIG2 suitable for delicate electronics as well as heavier workpieces.
With IP40–IP54 protection, low noise levels and repeatability down to ±0.02 mm, it delivers precise, quiet and robust performance.
With its slim rectangular housing and five mounting orientations, it integrates easily into a wide range of EOAT setups.
The embedded controller enables precise movement, adjustable gripping force, and optimized speed for fast open/close cycles.
The gripper offers multiple communication modes, including Modbus RTU and digital I/O, with optional expansion to USB, Ethernet, CAN, PROFINET or EtherCAT.
Model variants cover strokes from 6 to 40 mm and gripping forces up to 280 N, making the EIG2 suitable for delicate electronics as well as heavier workpieces.
With IP40–IP54 protection, low noise levels and repeatability down to ±0.02 mm, it delivers precise, quiet and robust performance.
Weight
0 kg
Dimensions
N/A
Part Number
EIG2-06002
RBTX SKU
RBTX-EFCT-0004
Stroke per jaw
6 mm
Weight
0.15 kg
Max Gripping force
14 N
Recommended workpiece weight
0.05 kg
Propulsion Method
Electric
Max. ambient temperature
40 ℃
Repeatability
0.02 mm
