What is a parallel gripper?

A parallel gripper is a compact end effector with two opposing jaws that move in tandem to grip and release parts with precision. The Effecto Group EIG2 electric parallel gripper features 30 N gripping force, 13 mm stroke per jaw, and repeats positioning within 0.02 mm for consistent pick-and-place accuracy.

How does the EIG2-13015 electric gripper differ from pneumatic grippers?

The EIG2-13015 uses electric actuation instead of compressed air, which eliminates air dependency, reduces maintenance requirements, and operates whisper-quiet at a maximum of 40 dB(A). Electric grippers like the EIG2 also enable programmable force and position control for varied part geometries.

What payload can the EIG2 electric gripper handle?

The Effecto Group EIG2-13015 handles payloads up to 0.25 kg with its 30 N gripping force and 13 mm stroke per jaw. It is designed for precision small-part handling in electronics assembly, medical device manufacturing, and automotive production.

What mounting options does the EIG2 gripper have?

The EIG2 offers five mounting positions for flexible integration into robotic end-of-arm tooling platforms. URDF files and CAD models are available to support installation in robotic cells.

Can the EIG2 gripper connect to my robot controller?

The EIG2 connects to standard robot controllers and automation PLCs via Modbus RTU or digital I/O mode. Optional network integrations include USB, TCP/IP, PROFINET, and EtherCAT for broader compatibility.

Does the EIG2 gripper provide feedback on grip status?

Yes, the EIG2 provides real-time grip feedback and part detection visible on unit LEDs and readable at the PLC or controller. This enables verification of successful gripping during automated pick-and-place operations.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock190N Grip

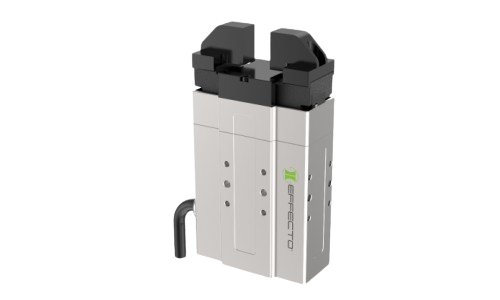

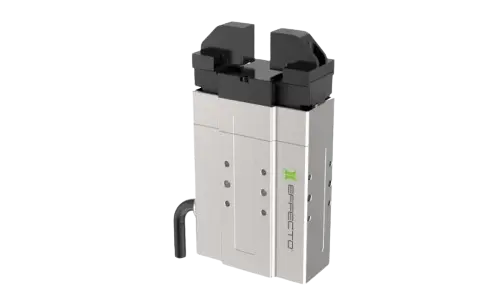

Effecto Group EIG2 Electric Parallel Gripper, 30 N

Name: Effecto Group EIG2 Electric Parallel Gripper, 30 N
Brand: Effecto Group
SKU: 3327
Price: 1695 USD
Availability: InStock

Effecto Group SpA

$1,695.00

Compact electric parallel gripper with 13 mm stroke per jaw, 12-30 N programmable gripping force, and 0.02 mm repeatability for precise small-part assembly. Modbus RTU and digital I/O control enable force and position adjustment without mechanical setup. IP 40, 24 V DC, 0.33 kg.

The Effecto Group EIG2-13015 is an electric parallel gripper designed for precision small-part handling in automation tasks for electronics assembly, medical device manufacturing, and automotive production environments.

Specifications:

Gripping force: 30 N
Stroke per jaw: 13 mm
Recommended payload: up to 0.25 kg
Weight: 0.33 kg
Repeatability: 0.02 mm
Mounting: Five installation positions

Features:

Adaptive grip control with programmable force and position settings to suit varied part geometries and materials
Quick open/close time and speed adjustment for efficient cycle throughput
Real-time grip feedback and part detection, visible on unit LEDs and readable at PLC/controller
Supports Modbus RTU and IO mode, with optional network integrations including USB, TCP/IP, PROFINET, EtherCAT
Electric actuation reduces reliance on compressed air and streamlines end-of-arm tooling integration
Noise emission rated at ≤ 40 dB(A)
Brake locking mechanism available upon request

Variants:

EIG2-06002: 6 mm stroke, 4 N force, 0.15 kg weight
EIG2-07008: 7 mm stroke, 16 N force, 0.40 kg weight
EIG2-13005: 13 mm stroke, 10 N force, 0.40 kg weight
EIG2-13050: 13 mm stroke, 100 N force, 0.40 kg weight

Applications:

Precision machine tending and quality inspection
Pick-and-place operations for delicate and compact workpieces
Automated assembly of electronic and medical device components
Adaptive gripping requirements where programmable force control is needed

Compatibility and Integration:

Connects to standard robot controllers and automation PLCs via Modbus RTU or digital I/O
Available integration resources for URDF files and CAD models
Suitable for installation in robotic cells using end-of-arm tooling platforms

Competitive Attributes:

Fully electric actuation for easier maintenance and reduced system complexity compared to pneumatic grippers
Programmable, adaptive gripper suited to precision small-part handling
Compact size for applications with space constraints

Weight0.33 kg

Stroke per jaw13 mm

Max Gripping force: 30 N
Recommended workpiece weight: 0.25 kg
Propulsion Method: Electric
Max. ambient temperature: 40 ℃
Repeatability: 0.02 mm
Maximum Gripping Force: 30 N
Maximum Payload: 0.25 kg
Operating temperature: up to 40°C
Model: EIG2-13015

Grips with precision, 30 N force programmable for varied part geometries
Compact parallel gripper, five mounting positions for flexible integration
Repeats positioning within 0.02 mm for consistent pick-and-place accuracy
Handles payloads up to 0.25 kg with 13 mm stroke per jaw
Electric actuation eliminates compressed air dependency, reduces maintenance
Reads grip feedback via LED and PLC using Modbus RTU or IO mode
Whisper-quiet operation at 40 dB(A) maximum sound pressure

: A parallel gripper is a compact end effector with two opposing jaws that move in tandem to grip and release parts with precision. The Effecto Group EIG2 electric parallel gripper features 30 N gripping force, 13 mm stroke per jaw, and repeats positioning within 0.02 mm for consistent pick-and-place accuracy.
: The EIG2-13015 uses electric actuation instead of compressed air, which eliminates air dependency, reduces maintenance requirements, and operates whisper-quiet at a maximum of 40 dB(A). Electric grippers like the EIG2 also enable programmable force and position control for varied part geometries.
: The Effecto Group EIG2-13015 handles payloads up to 0.25 kg with its 30 N gripping force and 13 mm stroke per jaw. It is designed for precision small-part handling in electronics assembly, medical device manufacturing, and automotive production.
: The EIG2 offers five mounting positions for flexible integration into robotic end-of-arm tooling platforms. URDF files and CAD models are available to support installation in robotic cells.
: The EIG2 connects to standard robot controllers and automation PLCs via Modbus RTU or digital I/O mode. Optional network integrations include USB, TCP/IP, PROFINET, and EtherCAT for broader compatibility.
: Yes, the EIG2 provides real-time grip feedback and part detection visible on unit LEDs and readable at the PLC or controller. This enables verification of successful gripping during automated pick-and-place operations.

Electric vs. Pneumatic Gripper:

The EIG2 is a fully electric parallel gripper designed for precision small-part handling, contrasting with pneumatic alternatives that require compressed air infrastructure and higher maintenance. Choose electric actuation when you need programmable force control, quiet operation, and minimal system complexity.

For delicate electronics or medical components under 0.25 kg, the 30 N force is programmable to avoid damage while maintaining 0.02 mm repeatability for consistent pick-and-place accuracy.
In noise-sensitive environments like assembly cells, the gripper operates at 40 dB(A) maximum, eliminating the compressor noise and air leaks common to pneumatic systems.
On compact collaborative robot arms or tight workspaces, five flexible mounting positions and 0.33 kg weight allow integration without redesigning the cell layout.
When grip feedback is required for quality control or part detection, real-time LED and Modbus RTU signals feed directly to your PLC without additional sensors.
For high-throughput precision assembly lines, the quick open/close cycle and adjustable speed reduce changeover time between part geometries.
