What is a parallel gripper?

A parallel gripper uses two opposing jaws that move in parallel to grip and release objects. The Effecto Group EIG2-40140 is an electric parallel gripper with a 40 mm jaw stroke and 280 N maximum gripping force, ideal for precise picking and placement tasks.

Can the EIG2-40140 work with cobots?

Yes, the EIG2-40140 is designed for collaborative robotics environments. It operates at 40 dB(A) noise level, has a compact 1 kg body with five mounting positions, and integrates via Modbus RTU plus optional TCP/IP, CAN, PROFINET, and EtherCAT protocols.

What can the EIG2-40140 gripper hold?

The EIG2-40140 can hold parts up to 3 kg with 280 N total gripping force and 0.03 mm repeatability. It completes open and close cycles in 0.7 seconds, making it suitable for high-speed picking and precision applications.

What is the difference between electric and pneumatic grippers?

Electric grippers like the EIG2-40140 offer superior repeatability (0.03 mm versus pneumatic alternatives), programmable force and position control, and consistent performance without compressed air. The EIG2-40140 also provides grip feedback and part detection, plus quiet 40 dB(A) operation.

What voltage and power does the EIG2-40140 need?

The EIG2-40140 operates on 24 V DC ±10% power supply with nominal current draw of 0.50 A and maximum current draw of 1.20 A. It requires IP54-rated power connectors and supports multiple communication protocols via Modbus RTU and optional interfaces.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock800N Grip

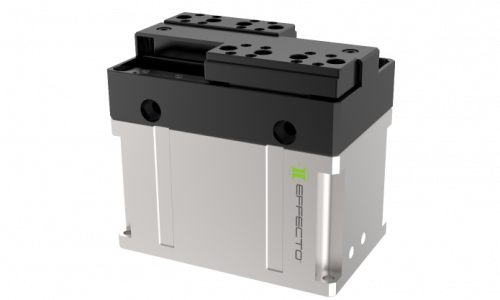

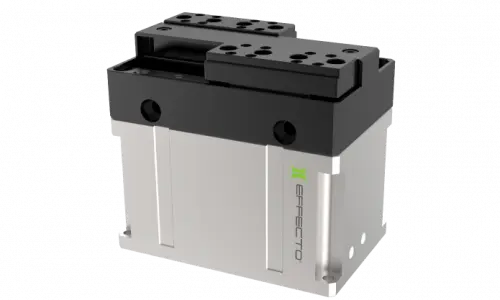

Effecto Group EIG2-40140 Electric Parallel Gripper, 280 N

Name: Effecto Group EIG2-40140 Electric Parallel Gripper, 280 N
Brand: Effecto Group SpA
SKU: 3326
Price: 3795 USD
Availability: InStock

Effecto Group SpA

$3,795.00

Electric parallel gripper with 40 mm stroke per jaw, 80-280 N gripping force range, and 0.03 mm repeatability. Delivers programmable force and position control for precise, automated small-part handling. IP 54 rated, 24 V DC, supports Modbus RTU and digital I/O communication.

The Effecto Group SpA EIG2-40140 electric parallel gripper is an end-of-arm tool engineered for collaborative robotics, precision picking, and automated handling tasks in industrial automation.

Specifications:

Jaw stroke: 40 mm
Maximum gripping force: 280 N
Workpiece weight capacity: 3 kg
Repeatability: 0.03 mm
Weight: 1 kg
Nominal voltage: 24 V DC ±10%
Current draw: 0.50 A (nominal), 1.20 A (max)
Opening/Closing cycle: 0.7 s
Mounting interface: five position options
IP protection: IP54

Key Features:

Compact rectangular form factor suitable for space-constrained EOAT applications
Programmable control of gripping force and position
Grip feedback and part detection via PLC/controller and LEDs
Supports standard Modbus RTU (RS485), Digital I/O, and expands with optional USB, TCP/IP, CAN2.0A, PROFINET, EtherCAT
Noise emission ≤ 40 dB(A) for collaborative work environments
Brake locking mechanism available on request

Applications:

Precision picking and placement of micro-components
Automated picking tasks for electronics assembly
Medical device handling in cleanroom environments
Collaborative robotic integration with cobots in industrial automation

Comparisons and Advantages:

Electric parallel gripper provides consistent precision, outperforming pneumatic alternatives in repeatability (0.03 mm)
High force-to-weight ratio enables heavy gripping in a compact body
Adaptive force/position control supports variable material handling

Choosing the Right Gripper Size:

The EIG2 series includes four variants with different jaw strokes. Compare to other models for different requirements: EIG2-06002, EIG2-07008, EIG2-13050. Selection is based on stroke length, workpiece weight, and gripping force.

Educational Guidance:

How to select gripper size: Evaluate workpiece dimensions, weight, and force requirements for the intended precision picking or collaborative task.
Calculate return on investment (ROI): Compare cycle time, energy use, and error rates to pneumatic or manual gripping solutions.

FAQ:

What gripper size do I need? Choose based on jaw stroke, gripping force, and workpiece weight needed for your application.
Can this gripper work with cobots? Yes, EIG2-40140 is suited for collaborative robot integration in automation tasks.
What's the warranty? Warranty information is available upon request.

Certifications and Trust Signals:

Effecto Group SpA products are manufactured in accordance with industrial standards. Certifications and approvals (ISO, UL) are available upon request. Customer reviews and case studies can be provided for specific applications.

Weight1 kg

Stroke per jaw40 mm

Max Gripping force: 280 N
Recommended workpiece weight: 3 kg
Propulsion Method: Electric
Max. ambient temperature: 40 ℃
Repeatability: ±0.03 mm
Model: EIG2-40140
Payload: 3 kg
Stroke: 40 mm
Gripping Force: 280 N
Operating temperature: 40 °C

Programmable force and position control, 40 mm jaw stroke, 280 N total grip
Holds 3 kg parts with 0.03 mm repeatability in tight spaces
Opens and closes in 0.7 s per cycle, ready for high-speed picking
Quiet operation at 40 dB(A) suits collaborative robot environments
IP54 rated, supports Modbus RTU standard plus optional TCP/IP, USB, CAN, PROFINET, EtherCAT
Compact 1 kg body with five mounting positions, 24 V DC powered
Grip feedback and part detection via PLC display and LED indicators

: A parallel gripper uses two opposing jaws that move in parallel to grip and release objects. The Effecto Group EIG2-40140 is an electric parallel gripper with a 40 mm jaw stroke and 280 N maximum gripping force, ideal for precise picking and placement tasks.
: Yes, the EIG2-40140 is designed for collaborative robotics environments. It operates at 40 dB(A) noise level, has a compact 1 kg body with five mounting positions, and integrates via Modbus RTU plus optional TCP/IP, CAN, PROFINET, and EtherCAT protocols.
: The EIG2-40140 can hold parts up to 3 kg with 280 N total gripping force and 0.03 mm repeatability. It completes open and close cycles in 0.7 seconds, making it suitable for high-speed picking and precision applications.
: Electric grippers like the EIG2-40140 offer superior repeatability (0.03 mm versus pneumatic alternatives), programmable force and position control, and consistent performance without compressed air. The EIG2-40140 also provides grip feedback and part detection, plus quiet 40 dB(A) operation.
: The EIG2-40140 operates on 24 V DC ±10% power supply with nominal current draw of 0.50 A and maximum current draw of 1.20 A. It requires IP54-rated power connectors and supports multiple communication protocols via Modbus RTU and optional interfaces.

Electric gripper vs pneumatic or manual handling:

The EIG2-40140 is an electric parallel gripper designed for precision and speed where pneumatic systems or manual gripping fall short. Choose electric when repeatability, noise control, and programmable force matter more than simplicity or lowest cost.

For parts under 3 kg with tight tolerances, the 0.03 mm repeatability and programmable grip force eliminate manual variation and pneumatic drift.
In shared collaborative cells, the 40 dB(A) noise level suits human-robot environments better than loud pneumatic exhausts.
On high-speed picking lines, the 0.7 s open/close cycle and part detection feedback enable rapid, reliable automation without operator monitoring.
In space-constrained wrists or multi-tool setups, the compact 1 kg body with five mount positions fits where bulkier alternatives cannot.
For electronics assembly or medical device handling, programmable force prevents damage to delicate parts that manual or fixed-pressure grips would crush.
