What is the Effecto FSG-4 and what is it used for?

The Effecto FSG-4 Electric Soft Gripper is a four-finger robotic end effector designed to safely handle delicate, irregular, and variable-shaped objects without damage. It is commonly used for food processing, pharmaceutical handling, electronics assembly, and pick-and-place tasks where adaptive gripping is needed.

What power supply does the FSG-4 require?

The Effecto FSG-4 operates on 15 to 25 VDC, which integrates seamlessly with most collaborative robots that support an electric interface in that voltage range.

How much weight can the FSG-4 lift?

The Effecto FSG-4 lifts payloads up to 1.5 kg with 0.08 mm repeatability for precise and consistent placement.

Can the FSG-4 handle wet or moist objects?

Yes, the FDA-compliant silicone fingers on the FSG-4 grip wet items reliably and are approved for direct food and pharmaceutical contact.

How is the FSG-4 programmed?

Grip force and finger position are programmed and adjusted via a Wi-Fi accessible interface, allowing flexible task adaptation without tools or complex setup.

Is the FSG-4 suitable for noisy production environments?

The FSG-4 operates quietly at 70 decibels or less, making it suitable for both production lines and laboratory environments where low noise is preferred.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockFlexible Grip

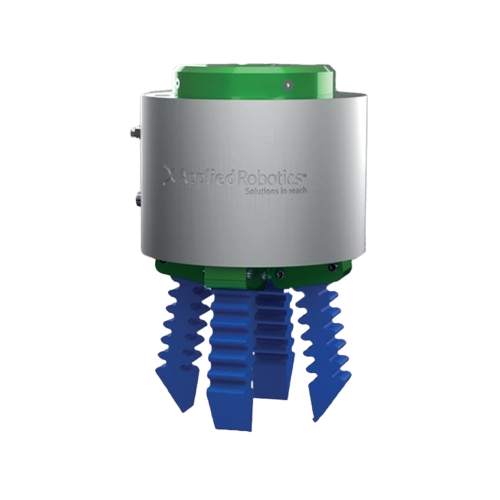

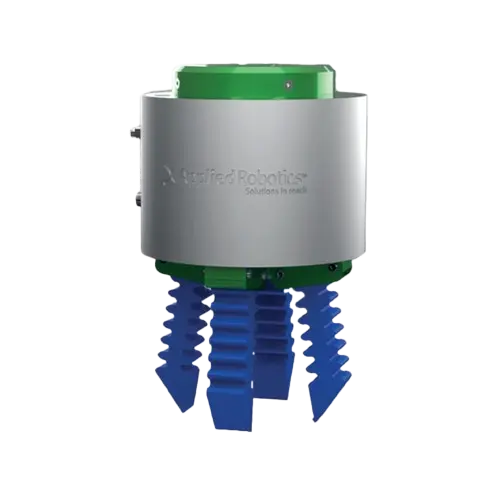

Effecto FSG-4 Electric Soft Gripper

Name: Effecto FSG-4 Electric Soft Gripper
Brand: Effecto
SKU: 3358
Price: 5695 USD
Availability: InStock

Effecto Group SpA

$5,695.00

Four-finger electric soft gripper with FDA-compliant silicone for handling fragile and variable-geometry parts up to 1.5 kg. Programmable force control, 0.08 mm repeatability, Wi-Fi programming, and cobot-ready. Ideal for packaging, food handling, electronics assembly, and laboratory automation.

Effecto FSG-4 Electric Soft Gripper is a four-finger electric soft robotic gripper built for safe and adaptive handling of delicate, irregular, or variable-shape objects in collaborative robot applications.

Features:

FDA-compliant silicone fingers for direct food and pharmaceutical contact
Programmable actuation enables precise control of finger positioning and grip force
15–25 VDC operating voltage supports broad compatibility with collaborative robots
Handles payloads up to 1.5 kg, with 0.08 mm repeatability
Quiet operation at ≤70 dB, suitable for production lines and lab environments
Available in both four-finger (FSG-4) and two-finger configurations
Wi-Fi accessible programming interface

Applications:

Delicate object handling in packaging and pick-and-place systems
Electronics assembly with collaborative robot gripper safety requirements

Compatibility:

The Effecto FSG-4 Electric Soft Gripper mounts to most collaborative robots supporting an electric interface in the 15–25 VDC range. See the two-finger variant for smaller or narrower parts.

Headline Specifications:

Payload capacity: 1.5 kg
Repeatability: 0.08 mm
Operating voltage: 15–25 VDC
Weight: 1.3 kg
Noise level: ≤70 dB
Max temperature: 60°C

Common Questions:

What power does FSG-4 require?

Effecto FSG-4 operates on 15–25 VDC power.

Can the FSG-4 handle wet objects?

FDA-compliant silicone fingers provide secure contact with moist or wet items.

Is programming required?

Programming is accessible via Wi-Fi for easy set-up and adjustments.

What robots does it fit?

Effecto FSG-4 Electric Soft Gripper is compatible with collaborative robots supporting an electric interface in the specified voltage range.

When to Choose the FSG-4:

When handling delicate or variable-shaped pieces where classic grippers might cause damage
In regulated industries requiring FDA-compliant gripper materials
When both four-finger and two-finger soft gripper options are needed for different parts or lines

Related Products:

Effecto FSG-2 Two-Finger Electric Soft Gripper for more compact or narrow objects
Compatible with a variety of collaborative robots and robot arms supporting electric soft robotic grippers

Weight1.3 kg

Recommended workpiece weight1.5 kg

Propulsion Method: Electric
Max. ambient temperature: 60 ℃
Repeatability: 0.08 mm
Payload: 1.5 kg
Max Ambient Temperature: 60°C
Sound Level: ≤70 dB
Power Supply: 15–25 VDC
Mounting Interface: Compatible with collaborative robots

Handles delicate, irregular and variable-size objects without damage using soft electric fingers
Grips wet items reliably with FDA-compliant silicone fingers for food and pharma contact
Powers from 15–25 VDC, integrating seamlessly with collaborative robots
Lifts up to 1.5 kg with 0.08 mm repeatability for precise placement
Operates quietly at 70 dB or less, suitable for production and lab floors
Program grip force and finger position via Wi-Fi for flexible task adaptation
Rated to 60°C maximum ambient temperature for controlled production environments

: The Effecto FSG-4 Electric Soft Gripper is a four-finger robotic end effector designed to safely handle delicate, irregular, and variable-shaped objects without damage. It is commonly used for food processing, pharmaceutical handling, electronics assembly, and pick-and-place tasks where adaptive gripping is needed.
: The Effecto FSG-4 operates on 15 to 25 VDC, which integrates seamlessly with most collaborative robots that support an electric interface in that voltage range.
: The Effecto FSG-4 lifts payloads up to 1.5 kg with 0.08 mm repeatability for precise and consistent placement.
: Yes, the FDA-compliant silicone fingers on the FSG-4 grip wet items reliably and are approved for direct food and pharmaceutical contact.
: Grip force and finger position are programmed and adjusted via a Wi-Fi accessible interface, allowing flexible task adaptation without tools or complex setup.
: The FSG-4 operates quietly at 70 decibels or less, making it suitable for both production lines and laboratory environments where low noise is preferred.

Electric soft gripper versus pneumatic or parallel-jaw grippers:

The Effecto FSG-4 uses soft electric fingers instead of rigid jaws or pneumatic actuators. Choose it when delicate, wet, or variable-size objects need damage-free handling and when programmable grip force fits your workflow.

For bakery items, produce, or pharmaceuticals, FDA-compliant silicone fingers grip wet surfaces reliably without bruising or contamination risk.
On shared collaborative robot cells with tight footprints, the 1.3 kg gripper body leaves payload headroom for sensors or larger end-of-arm tools.
When part geometry changes shift-to-shift, Wi-Fi programming adapts finger position and force in seconds rather than requiring mechanical adjustment.
In labs or packed production floors, quiet operation at 70 dB or less avoids noise complaints and hearing fatigue compared to pneumatic alternatives.
For 0.08 mm placement repeatability on small, delicate assemblies, the electric gripper's precise control outperforms manual or vacuum-based methods.
