What is a parallel gripper?

A parallel gripper is a 2-finger end effector that moves both jaws in parallel toward each other to grip workpieces with consistent force and precision. The Effecto ECG2-25140 is an electric parallel gripper that delivers 280 N gripping force and 0.03 mm repeatability for precision handling in manufacturing and assembly.

What is the main purpose of a gripper?

A gripper is designed to pick up, hold, and release workpieces in automated systems. The ECG2-25140 handles up to 3 kg parts reliably across manufacturing, electronics, and logistics applications while maintaining grip position even during power loss thanks to its embedded brake.

Is the Effecto ECG2-25140 safe to use around operators?

Yes, the ECG2-25140 is designed for collaborative spaces with rounded edges and a compact form factor that enable safe operation in human proximity. Its electric design also provides better control over force and motion compared to pneumatic alternatives.

What connectivity options does the ECG2-25140 support?

The ECG2-25140 supports Modbus RTU, IO mode control, and ROS compatibility for robotics platforms. USB and Ethernet connectivity can be enabled via converters for integration with factory automation and collaborative robot systems.

What happens to the gripper if power is lost?

The ECG2-25140 has an embedded brake that locks the workpiece in place during power loss or interruptions. This brake locking mechanism ensures the grip position remains secure even without power, making it reliable for demanding manufacturing environments.

What is the operating temperature limit for the ECG2-25140?

The Effecto ECG2-25140 has a maximum operating temperature of 40°C, suitable for standard industrial working conditions.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock800N Grip

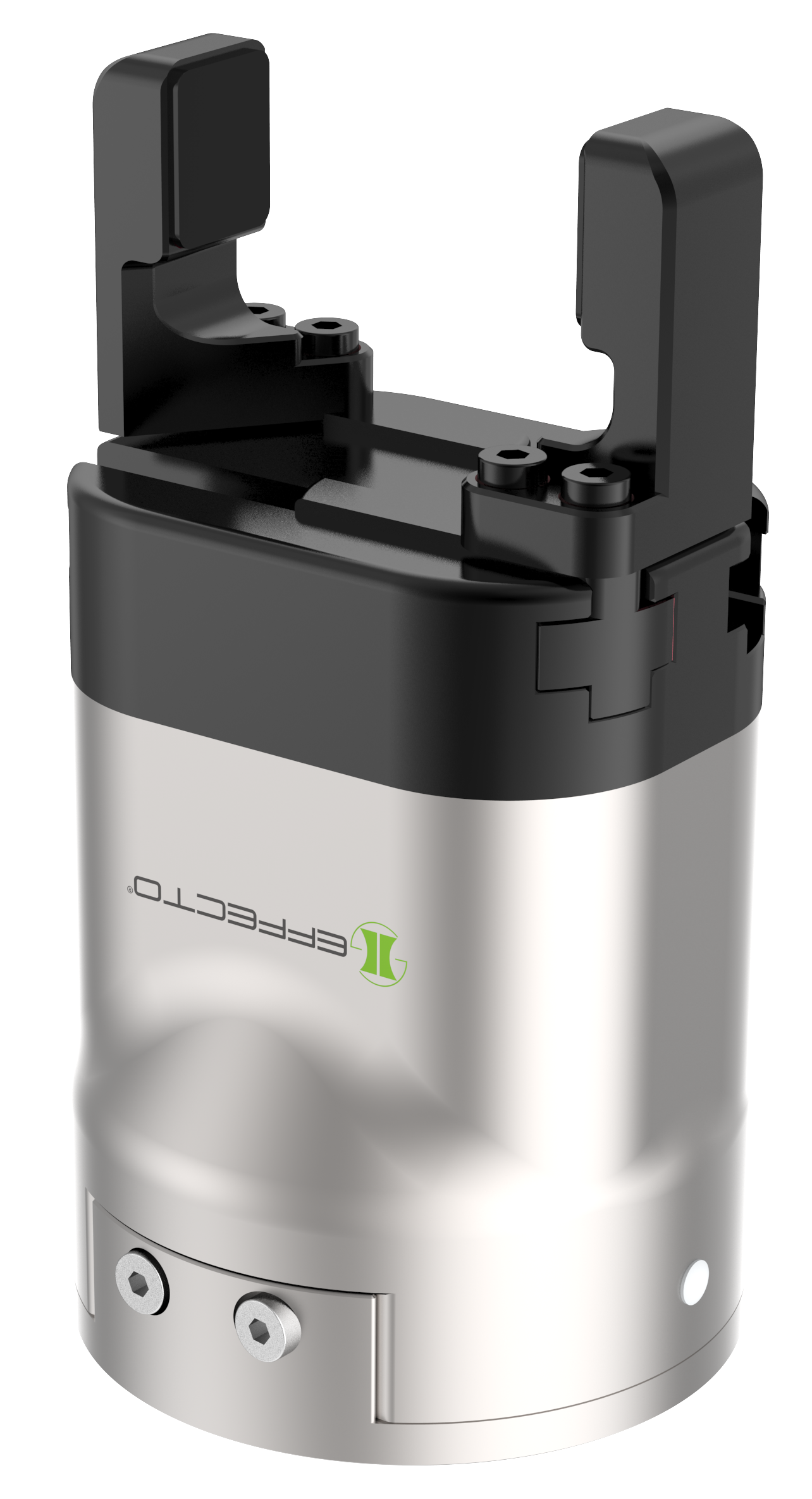

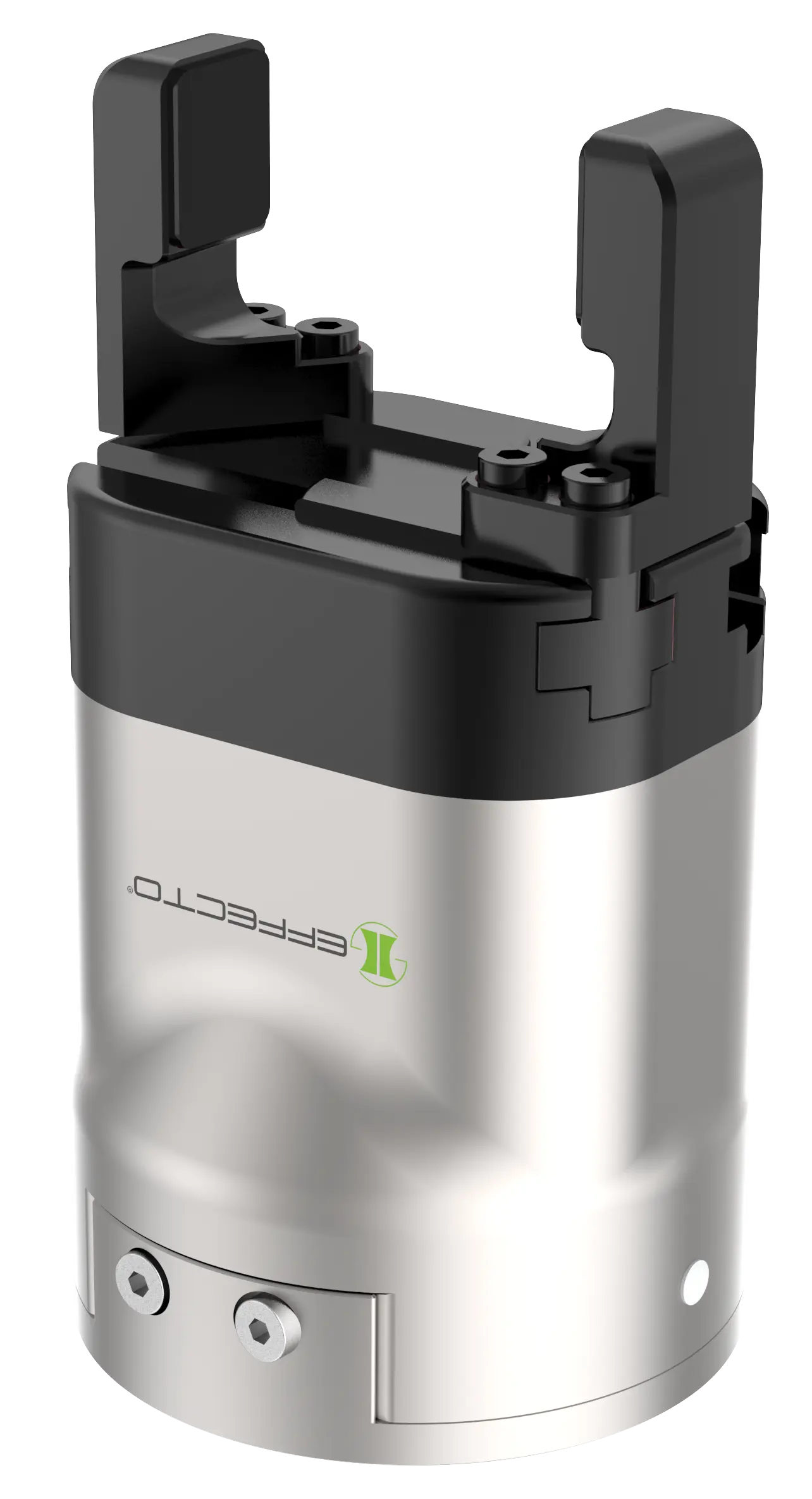

Effecto ECG2-25140 Electric Parallel Gripper, 280 N

Name: Effecto ECG2-25140 Electric Parallel Gripper, 280 N
Brand: Effecto Group SpA
SKU: 3306
Price: 5295 USD
Availability: InStock

Effecto Group SpA

$5,295.00

Effecto ECG2-25140 electric parallel gripper with 25 mm stroke, 280 N gripping force, and 0.03 mm repeatability. Compact 1 kg design with brake locking, embedded controller, and Modbus RTU integration for collaborative and industrial automation.

Effecto ECG2-25140 Electric Parallel Gripper, 280 N

Effecto ECG2-25140 electric parallel gripper is a 2-finger precision gripper for collaborative and industrial automation from Effecto Group SpA.

Key Attributes:

Brand: Effecto Group SpA
Type: Electric parallel gripper
Stroke Length: 25 mm per jaw
Force Rating: 280 N gripping force
Repeatability: 0.03 mm

Features and Benefits:

Handles up to 3 kg workpieces reliably for automation and collaborative robot systems.
Brake locking mechanism ensures grip position remains secure during power loss or interruptions, supporting demanding manufacturing environments.
Compact design with rounded edges enables safe use in human proximity and space-constrained setups.
Plug-and-play functionality accelerates setup, reducing integration and commissioning time.
Embedded controller offers accessible data for grip status, applied force, and jaw position.
Supports Modbus RTU and IO mode control, plus ROS compatibility for robotics platforms. USB and Ethernet connectivity enabled via converters.
Maximum operating temperature is 40°C for standard industrial conditions.

Applications:

ECG2-25140 is suited for precision tasks in manufacturing, electronics assembly, and logistics where consistent and controlled gripping is required.

Mounting and Compatibility:

Mounts to collaborative robot arms and integrates with factory automation via standard interfaces. Refer to End Effectors & Tooling for compatible products and electric gripper options for comparison.

Comparison Considerations:

Brake locking sets ECG2-25140 apart for reliable grip retention.
Repeatability of 0.03 mm is ideal where tight precision is required.
Design is optimized for collaborative safety and reduced setup time.

Effecto ECG2-25140 parallel gripper belongs to the ECG2 series, supporting efficient and dependable part handling in modern automated environments.

Weight1 kg

Stroke per jaw25 mm

Max Gripping force: 280 N
Recommended workpiece weight: 3 kg
Propulsion Method: Electric
Max. ambient temperature: 40 ℃
Repeatability: ±0.03 mm
Model: ECG2-25140
Payload: 3 kg
Gripping Force: 280 N
Operating temperature: up to 40°C
Communication: Modbus RTU
USB
Ethernet
IO mode
Robotics Platform Support: ROS

Grips with precision, 280 N force in compact 2-finger electric design
Safe around operators, rounded edges fit tight collaborative spaces
Holds position during power loss, embedded brake locks workpieces secure
Monitor grip status, force, and jaw position in real time
Handles 3 kg parts reliably across manufacturing, electronics, logistics
Repeats at 0.03 mm for consistent precision every cycle
Plug-and-play setup with Modbus RTU, IO mode, and ROS compatibility

: A parallel gripper is a 2-finger end effector that moves both jaws in parallel toward each other to grip workpieces with consistent force and precision. The Effecto ECG2-25140 is an electric parallel gripper that delivers 280 N gripping force and 0.03 mm repeatability for precision handling in manufacturing and assembly.
: A gripper is designed to pick up, hold, and release workpieces in automated systems. The ECG2-25140 handles up to 3 kg parts reliably across manufacturing, electronics, and logistics applications while maintaining grip position even during power loss thanks to its embedded brake.
: Yes, the ECG2-25140 is designed for collaborative spaces with rounded edges and a compact form factor that enable safe operation in human proximity. Its electric design also provides better control over force and motion compared to pneumatic alternatives.
: The ECG2-25140 supports Modbus RTU, IO mode control, and ROS compatibility for robotics platforms. USB and Ethernet connectivity can be enabled via converters for integration with factory automation and collaborative robot systems.
: The ECG2-25140 has an embedded brake that locks the workpiece in place during power loss or interruptions. This brake locking mechanism ensures the grip position remains secure even without power, making it reliable for demanding manufacturing environments.
: The Effecto ECG2-25140 has a maximum operating temperature of 40°C, suitable for standard industrial working conditions.

Electric parallel gripper vs pneumatic or manual gripping:

The Effecto ECG2-25140 is an electric parallel gripper designed for precision automation where power loss security and real-time feedback matter. It contrasts with pneumatic grippers (which require air supply and offer less position control) and manual clamping (which demands operator intervention and cannot lock safely during downtime).

For parts under 3 kg requiring consistent grip, the 0.03 mm repeatability ensures every cycle meets tight tolerances without drift or variation.
In collaborative cells where operators work nearby, compact rounded edges and embedded safety brake fit safely into confined spaces and lock the workpiece if power drops unexpectedly.
For electronics assembly and precision logistics tasks, real-time monitoring of grip force and jaw position lets you detect slip or incomplete closure instantly via Modbus RTU or ROS feedback.
In facilities with mixed robot platforms, plug-and-play setup with IO mode and standard converters cuts integration time versus custom pneumatic plumbing or hardwired solutions.
