What is a parallel gripper?

A parallel gripper uses two fingers that move in opposite directions along the same axis to grip workpieces between them. The Effecto ECG2-18050 delivers 17.5 mm of parallel stroke per finger, allowing it to handle parts of varying sizes while maintaining precise, repeatable positioning.

What is the main purpose of a gripper?

A gripper is an end effector that picks up, holds, and places workpieces in automated assembly and material handling tasks. The ECG2-18050 grips with 50 N of force to reliably hold up to 1 kg workpieces and achieves 0.03 mm repeatability for precision assembly and pick-and-place applications.

What gripping force does the ECG2-18050 provide?

The Effecto ECG2-18050 delivers 50 N of gripping force, which is sufficient to reliably hold workpieces up to 1 kg. Each of the two fingers generates this force through electromechanical actuation.

Can the ECG2-18050 work with collaborative robots?

Yes, the ECG2-18050 is designed for collaborative automation with rounded edges, compact form factor, and brake locking to operate safely in cobot cells. It weighs only 0.5 kg, minimizing the load on collaborative robot arms.

What feedback does the ECG2-18050 gripper provide?

The ECG2-18050 has an embedded controller that delivers real-time status, force, and position feedback for process monitoring. It supports integration via Modbus RTU and IO mode for flexible automation platform compatibility.

What temperature range does the ECG2-18050 operate in?

The Effecto ECG2-18050 operates reliably up to 40°C ambient temperature. The embedded controller with brake locking is designed to withstand harsh environments typical of manufacturing and logistics applications.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock190N Grip

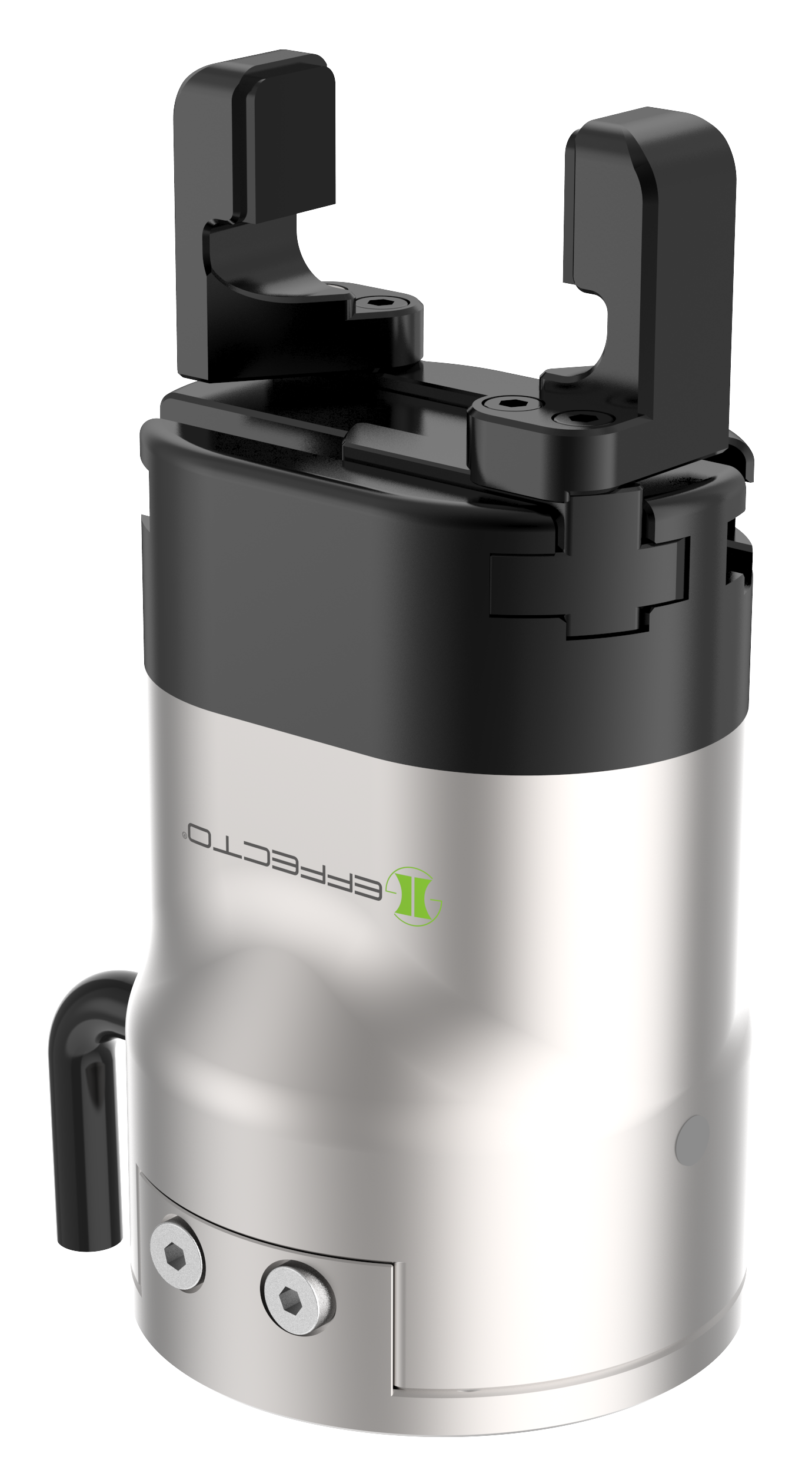

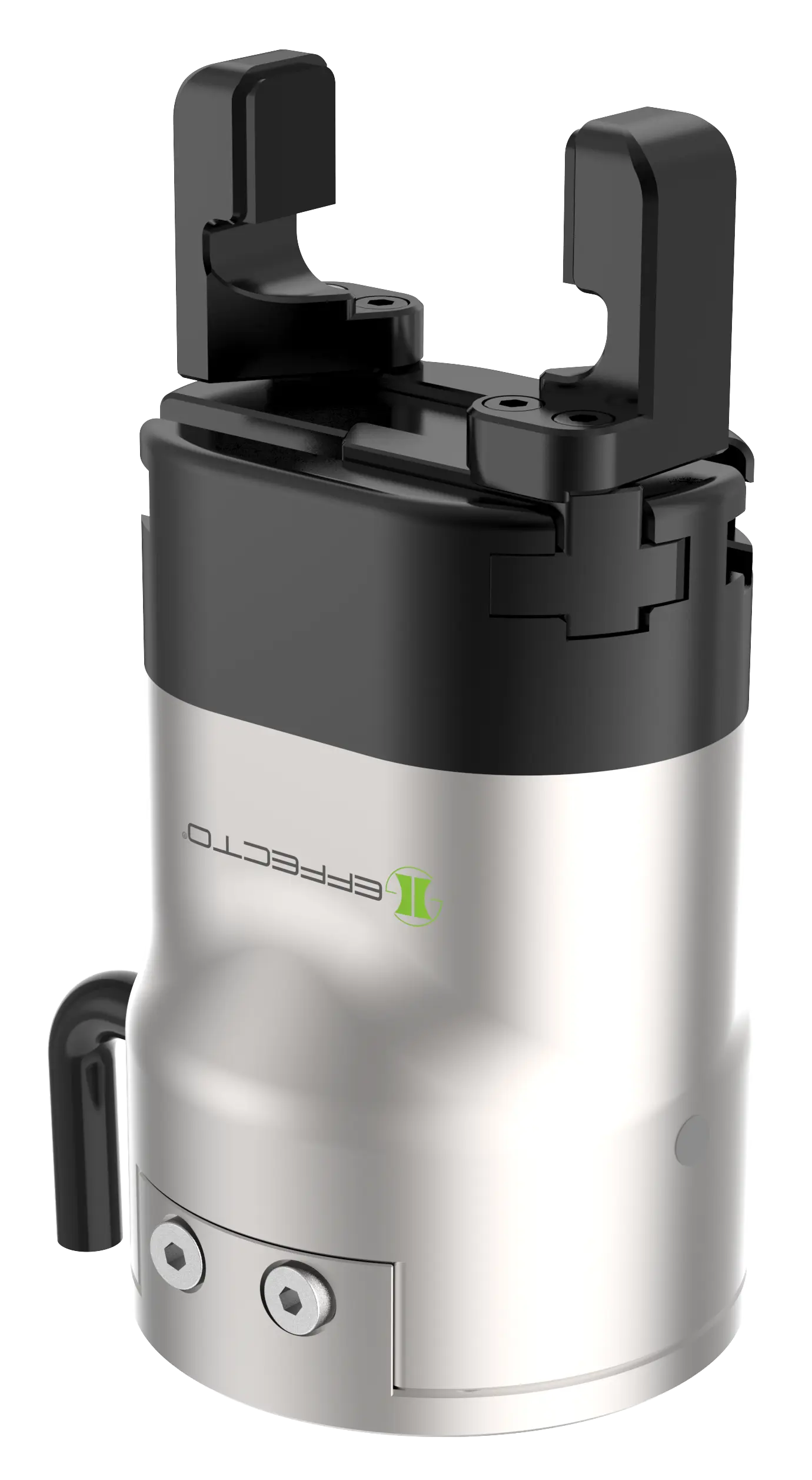

Effecto ECG2-18050 Parallel Gripper, 50 N, 2-finger

Name: Effecto ECG2-18050 Parallel Gripper, 50 N, 2-finger
Brand: Effecto
SKU: 3305
Price: 4195 USD
Availability: InStock

Effecto Group SpA

$4,195.00

Electric parallel gripper with 50 N gripping force, 17.5 mm stroke per jaw, and 0.03 mm repeatability. Compact 0.5 kg design for collaborative automation, assembly, and pick-and-place. Includes embedded controller, brake locking, and Modbus RTU/IO integration.

Effecto ECG2-18050 Electric 2-Finger Parallel Gripper:

The Effecto ECG2-18050 is an electric parallel gripper engineered for precision gripping in collaborative and industrial robotic automation.

Gripping Force: 50 N maximizes reliable holding of up to 1 kg workpieces
Jaw Stroke: Each of the 2 fingers delivers 17.5 mm of parallel movement
Repeatability: 0.03 mm repeatable placement ideal for demanding assembly and pick-and-place
Weight: 0.5 kg minimizes load for integration on robot arms

Precision and Safety Focus:

ECG2-18050 parallel gripper by Effecto achieves precision gripping through electromechanical actuation and embedded control. Rounded profile and brake locking mechanism support safe deployment in collaborative robot work cells. The compact design accommodates electronics assembly, logistics handling, and manufacturing environments.

Integration and Compatibility:

Automation Platforms: Modbus RTU and IO mode enable flexible integration
Data Monitoring: Onboard controller delivers status, force, and position feedback for process monitoring
Ambient Suitability: Operates reliably up to 40°C

Comparative Context:

Compared to pneumatic grippers or larger parallel grippers, the ECG2-18050 electric gripper offers enhanced precision gripping and lighter weight for applications needing collaborative robot compatibility and tight assembly spaces. For other end effectors or collaborative robot guides, see end effectors and tooling or collaborative robot integration resources.

Weight0.5 kg

Stroke per jaw17.5 mm

Max Gripping force: 50 N
Recommended workpiece weight: 1 kg
Propulsion Method: Electric
Max. ambient temperature: 40 ℃
Repeatability: ±0.03 mm
Model: ECG2-18050
Payload: 1 kg
Gripping Force: 50 N
Stroke: 17.5 mm
Operating temperature: up to 40°C
Control Interfaces: Modbus RTU, IO Mode

Grips with precision in collaborative automation, 50 N electric gripper
Rounded edges and compact form factor designed for safe cobot cells
Embedded controller with brake locking withstands harsh environments
Real-time status, force, and position feedback for process monitoring
Holds up to 1 kg workpieces reliably at 50 N gripping force
Each finger delivers 17.5 mm parallel stroke for flexible part sizes
Achieves 0.03 mm repeatability, critical for precision assembly and pick-and-place

: A parallel gripper uses two fingers that move in opposite directions along the same axis to grip workpieces between them. The Effecto ECG2-18050 delivers 17.5 mm of parallel stroke per finger, allowing it to handle parts of varying sizes while maintaining precise, repeatable positioning.
: A gripper is an end effector that picks up, holds, and places workpieces in automated assembly and material handling tasks. The ECG2-18050 grips with 50 N of force to reliably hold up to 1 kg workpieces and achieves 0.03 mm repeatability for precision assembly and pick-and-place applications.
: The Effecto ECG2-18050 delivers 50 N of gripping force, which is sufficient to reliably hold workpieces up to 1 kg. Each of the two fingers generates this force through electromechanical actuation.
: Yes, the ECG2-18050 is designed for collaborative automation with rounded edges, compact form factor, and brake locking to operate safely in cobot cells. It weighs only 0.5 kg, minimizing the load on collaborative robot arms.
: The ECG2-18050 has an embedded controller that delivers real-time status, force, and position feedback for process monitoring. It supports integration via Modbus RTU and IO mode for flexible automation platform compatibility.
: The Effecto ECG2-18050 operates reliably up to 40°C ambient temperature. The embedded controller with brake locking is designed to withstand harsh environments typical of manufacturing and logistics applications.

Electric gripper for light precision work versus pneumatic or heavy-duty alternatives:

The Effecto ECG2-18050 is a 50 N electric parallel gripper designed for collaborative and precision-driven automation. Choose it over pneumatic grippers or heavier electric alternatives when you need compact, lightweight performance with real-time feedback in shared work cells.

For parts under 1 kg on collaborative robot arms, the 0.5 kg gripper weight and 0.03 mm repeatability enable high-precision assembly and pick-and-place without exceeding payload limits.
In tight assembly cells or electronics manufacturing, the compact rounded form factor and 17.5 mm parallel stroke fit confined spaces while maintaining safe cobot operation.
For applications requiring process visibility, embedded force, position, and status feedback over Modbus RTU or IO mode supports real-time monitoring and quality assurance.
In environments without compressed air infrastructure, electric actuation and built-in brake locking eliminate pneumatic line costs and provide reliable holding in harsh conditions up to 40°C.
