What is the reach and payload of the Dobot CR20A?

The Dobot CR20A has a 1700mm reach and 20kg payload capacity, making it suitable for large-scale manufacturing tasks including heavy component handling, palletizing, and machine tending. The 1700mm reach allows access to distant work areas while maintaining the 20kg load rating across all positions.

How accurate is the CR20A cobot?

The Dobot CR20A delivers plus or minus 0.05mm repeatability across its six axes, enabling precise pick-and-place and inspection work. This level of precision is suitable for demanding material handling and assembly applications requiring consistent accuracy.

Can the Dobot CR20A work safely around humans?

Yes, the CR20A is designed for safe human-robot collaboration with electromagnetic brakes and real-time payload detection to prevent unexpected motion and overload conditions. The IP54 dust and water resistance also makes it suitable for shared factory floor environments.

What software does the Dobot CR20A use?

The CR20A integrates with DobotStudio Pro for graphical programming, scripting, and drag-and-teach operation, and supports DobotLink for monitoring and management. It also communicates with industrial systems via Modbus, TCP/IP, Ethernet/IP, PROFINET, and ROS protocols.

How heavy is the Dobot CR20A and where can it be installed?

The CR20A weighs 73kg and is IP54-rated for dust and water resistance, making it suitable for installation in demanding factory environments. Its collaborative design and compact footprint allow flexible mounting in manufacturing cells, assembly lines, and material handling stations.

Is the CR20A faster than earlier Dobot models?

The CR20A delivers 25% faster cycle times compared to the older CR and CR_V2 models, improving throughput for high-volume production and material handling tasks. This speed improvement is combined with the larger 1700mm reach and 20kg payload of the CRA series.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock25 kg Payload

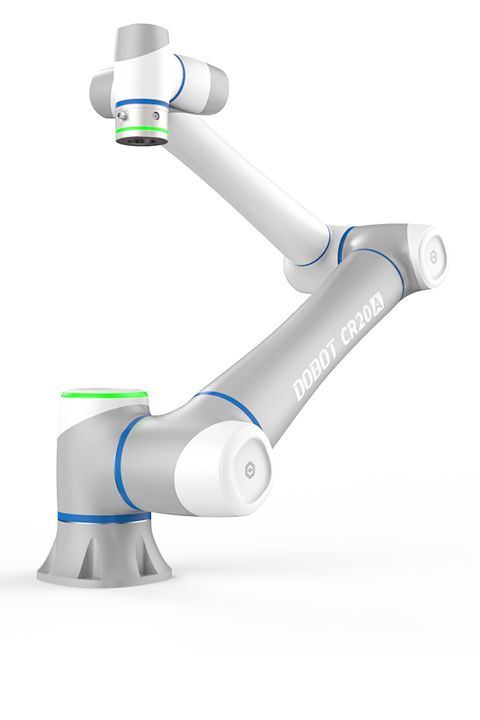

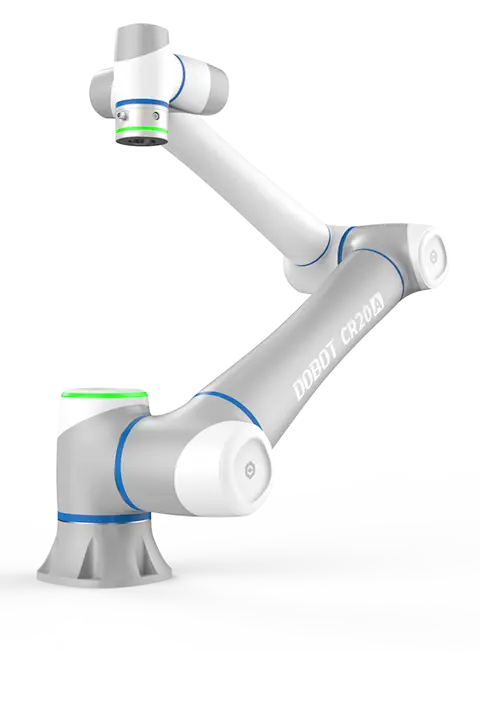

Dobot CR20A Cobot, 1700mm reach, 20kg payload

Name: Dobot CR20A Cobot, 1700mm reach, 20kg payload
Brand: Dobot
SKU: 3498
Price: 47300 USD
Availability: InStock

Dobot Robotics

$47,300.00

Six-axis collaborative robot with 1,700 mm reach and 20 kg payload capacity. Delivers 0.1 mm repeatability in an IP54-rated enclosure, ideal for pick-and-place, palletizing, machine tending, and assembly. Integrates via Modbus TCP, Ethernet/IP, PROFINET, and TCP/IP with DobotStudio Pro graphical programming and drag-to-teach functionality.

Dobot CR20A Cobot for Large-Scale Manufacturing Automation:

Dobot CR20A is an industrial collaborative robot arm engineered for heavy-duty automation tasks in manufacturing, material handling, and assembly environments.

Reach: 1700 mm
Payload: 20 kg
Unit Weight: 73 kg
Protection: IP54 dust and water resistance

Key Features and Capabilities:

Six-axis collaborative robot with ±0.05 to 0.1 mm repeatability for precise pick and place, inspection, and demanding material handling tasks.
Integrates smoothly with industrial control platforms and PLC/HMI systems using Modbus, TCP/IP, Ethernet/IP, PROFINET, and ROS communication protocols.
Supports DobotStudio Pro software for graphical programming, scripting, and drag-to-teach, making training and deployment accessible for varied skill levels.
Equipped with electromagnetic brakes and real-time payload detection for enhanced safety during human-robot collaboration.

Applications and Compatibility:

Suitable for automation applications such as palletising, packaging, machine tending, inspection, assembly, and heavy-duty pick-and-place operations.
Designed for deployment in flexible and collaborative manufacturing environments requiring long reach and high payload capacity.
Part of the Dobot CRA series, offering advancements such as increased I/O ports and the latest V4 controller for efficient cycle times.

Industry Standards and Compliance:

Dobot CR20A meets industrial requirements for collaborative robotics, carrying RoHS compliance for restricted substances.
Designed for IP54-rated operation suitable for industrial environments where dust and water resistance are needed.

When to Choose Dobot CR20A:

Ideal for integrators and manufacturers who need a collaborative robot with 1700 mm reach and 20 kg payload for large-scale or heavy component workflows.
Optimised for use cases where high efficiency and robust safety features are necessary for man-machine collaboration.
Recommended for upgrading from lighter-duty or lower-reach robot arms, and for enhancing automation in demanding industrial environments.

Further Information:

Model number: CR20A. Supported by DobotStudio Pro and DobotLink platforms.

Last updated: June 2024

Weight73 kg

Max. Payload20 kg

Max. Reach: 1
700 mm
DOF: 6
Repeatability: 0.1 mm
Max. Speed: 2
Protection Class: IP 54
Reach: 1700 mm
Payload: 20 kg
IP Rating: IP54

Handles heavy loads across large-scale tasks, 20kg payload with 1700mm reach
Integrates with DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, PROFINET and ROS
Deploy fast via graphical programming, scripting and drag-to-teach in DobotStudio Pro
Precise pick-and-place and inspection work, ±0.05mm repeatability across 6 axes
Safe human-robot collaboration with electromagnetic brakes and real-time payload detection
Withstands factory floors, IP54 rated dust and water resistance, 73kg unit weight
Quick cycles and efficient performance, 25% faster than older CR and CR_V2 models

: The Dobot CR20A has a 1700mm reach and 20kg payload capacity, making it suitable for large-scale manufacturing tasks including heavy component handling, palletizing, and machine tending. The 1700mm reach allows access to distant work areas while maintaining the 20kg load rating across all positions.
: The Dobot CR20A delivers plus or minus 0.05mm repeatability across its six axes, enabling precise pick-and-place and inspection work. This level of precision is suitable for demanding material handling and assembly applications requiring consistent accuracy.
: Yes, the CR20A is designed for safe human-robot collaboration with electromagnetic brakes and real-time payload detection to prevent unexpected motion and overload conditions. The IP54 dust and water resistance also makes it suitable for shared factory floor environments.
: The CR20A integrates with DobotStudio Pro for graphical programming, scripting, and drag-and-teach operation, and supports DobotLink for monitoring and management. It also communicates with industrial systems via Modbus, TCP/IP, Ethernet/IP, PROFINET, and ROS protocols.
: The CR20A weighs 73kg and is IP54-rated for dust and water resistance, making it suitable for installation in demanding factory environments. Its collaborative design and compact footprint allow flexible mounting in manufacturing cells, assembly lines, and material handling stations.
: The CR20A delivers 25% faster cycle times compared to the older CR and CR_V2 models, improving throughput for high-volume production and material handling tasks. This speed improvement is combined with the larger 1700mm reach and 20kg payload of the CRA series.

Collaborative robot vs traditional industrial arm:

The CR20A combines heavy payload capacity with built-in safety for shared workspaces. Choose this over fixed industrial arms when you need 20kg lift across a large 1700mm work area while operating near staff without complex guarding.

For palletising or machine tending in tight cells, the 1700mm reach eliminates repositioning and the 20kg payload handles full bins or engine blocks without multiple trips.
On mixed-model lines where staff reprogram tasks daily, DobotStudio drag-to-teach cuts training time versus traditional teach pendants.
In dusty or wet factory floors, IP54 rating runs reliably where sealed-only arms need climate control booths.
For inspection or pick-and-place on automotive sub-assemblies, ±0.05mm repeatability meets tolerance stacks that lighter cobots cannot hold.
When upgrading from smaller arms, the CR20A's 25% faster cycle time than earlier CR models pays back the investment on high-volume runs.
