What is the reach and payload of the Dobot CR10A cobot?

The Dobot CR10A has a 1300 mm reach and 10 kg payload capacity, making it suitable for handling heavier components and accessing larger work areas. It achieves 0.03 mm repeatability for precision tasks.

Can the Dobot CR10A be mounted on a mobile base?

Yes, the Dobot CR10A features a flexible mounting interface that enables deployment on workstations or mobile bases, allowing easy repositioning across your facility.

What protocols does the Dobot CR10A support for integration?

The Dobot CR10A supports DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS protocols, ensuring straightforward connectivity to a wide range of factory automation systems.

Is the Dobot CR10A suitable for dusty or wet environments?

The Dobot CR10A has an IP54 rating, which means it can withstand dust and splashes in industrial environments.

What tasks is the Dobot CR10A designed for?

The Dobot CR10A is designed for palletizing, machine tending, packaging, and precision assembly, particularly for applications requiring extended reach and heavier payloads.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockExtended Reach

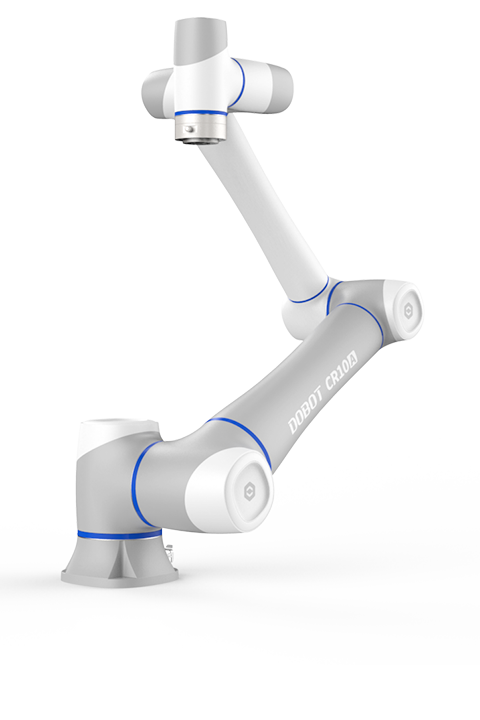

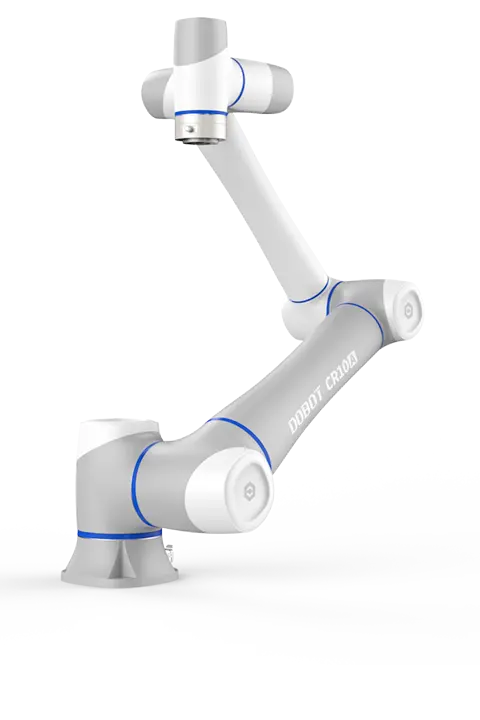

Dobot CR10A Cobot, 1300mm reach, 10kg payload

Name: Dobot CR10A Cobot, 1300mm reach, 10kg payload
Brand: Dobot
SKU: 3474
Price: 41400 USD
Availability: InStock

Dobot Robotics

$41,400.00

Dobot CR10A is a 6-axis collaborative robot with 1,300 mm reach and 10 kg payload, delivering 0.03 mm repeatability for palletizing, machine tending, assembly, and heavy component handling in industrial environments.

Dobot CR10A Collaborative Robot for Industrial Automation:

The Dobot CR10A cobot is a six-axis collaborative robot arm designed for manufacturers and integrators seeking a reliable, long-reach solution for tasks such as palletizing, machine tending, packaging, and precision assembly.

Reach: 1300 mm
Payload: 10 kg
Repeatability: 0.03 mm
Weight: 25.5 kg

Main Features and Integration:

The Dobot CR10A cobot delivers a balance of extended reach and substantial payload, making it ideal for moving larger components or accessing spacious work areas beyond the range of compact cobots. The IP54 rating supports use in industrial environments with dust or splashes, and the flexible mounting interface enables easy deployment on workstations or mobile bases. Integration is streamlined by compatibility with multiple platforms, including DobotStudio and DobotLink, and support for protocols such as Modbus, TCP/IP, Ethernet/IP, and ROS, ensuring straightforward connectivity to a wide range of factory automation systems.

When to Choose the Dobot CR10A:

Optimized for applications where a 1300 mm working envelope and up to 10 kg payload are required.
Suited to manufacturing, warehousing, and precision assembly lines handling heavier or bulkier items.
Recommended when integration with existing infrastructure using standard industrial protocols is necessary.

Weight25.5 kg

Max. Payload10 kg

Max. Reach: 1
300 mm
DOF: 6
Repeatability: ±0.03 mm
Max. Speed: 2
Protection Class: IP54
Reach: 1300 mm
Payload: 10 kg
IP Rating: IP54
Degrees of freedom: 6

Handle heavy assembly jobs with 10 kg payload across 1300 mm reach
Connect via DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, ROS protocols
Operate intuitively with minimal setup in industrial environments
Achieve 0.03 mm repeatability for precision tasks
Withstand dust and splashes with IP54 rating
Mount flexibly on workstations or mobile bases

: The Dobot CR10A has a 1300 mm reach and 10 kg payload capacity, making it suitable for handling heavier components and accessing larger work areas. It achieves 0.03 mm repeatability for precision tasks.
: Yes, the Dobot CR10A features a flexible mounting interface that enables deployment on workstations or mobile bases, allowing easy repositioning across your facility.
: The Dobot CR10A supports DobotStudio, DobotLink, Modbus, TCP/IP, Ethernet/IP, and ROS protocols, ensuring straightforward connectivity to a wide range of factory automation systems.
: The Dobot CR10A has an IP54 rating, which means it can withstand dust and splashes in industrial environments.
: The Dobot CR10A is designed for palletizing, machine tending, packaging, and precision assembly, particularly for applications requiring extended reach and heavier payloads.

Cobot with extended reach and mid-range payload versus compact or smaller-payload alternatives:

The Dobot CR10A is a six-axis collaborative robot built for tasks that need both distance and weight capacity. Choose it over compact cobots or manual handling when your parts or work areas demand the combination it offers.

For palletizing or machine tending across workstations over 1 meter apart, the 1300 mm reach eliminates the need for repositioning the robot or intermediate conveyors.
For assembly jobs handling components up to 10 kg, such as motor housings or sub-assemblies, the payload eliminates secondary lifting tools or multi-robot operations.
For dusty or wet shop floors, the IP54 rating lets it operate without protective enclosures that would reduce access and flexibility.
For factories already using Modbus, Ethernet/IP, ROS, or TCP/IP, native protocol support cuts integration time and reduces custom middleware development.
For precision assembly requiring 0.03 mm repeatability, tight tolerances on part placement or alignment are met without secondary fixtures.
