In Stock
DEVONICS FAIRINO FR3
FAIRINO
$6,099.00

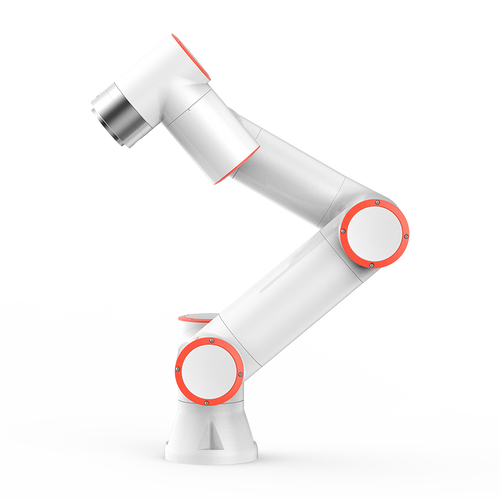

FR3 is a new generation of six-axis cobot product.
Product Description
FR3 is a new generation of six-axis cobot product.
It's range of applications spans, across industries, such as 3C, semiconductor, metal processing, industrial glueing,retail (coffee food) and more.
This innovative solution offers the answer, for intelligent manufacturing and automation needs.
Payload 3kg Reach 622mm Degrees of freedom 6 rotating joints HMI 10.1 inch teach pendant or mobile terminal Web APP Movement Repeatability ±0.02mm Pose repeatability oer ISO 9283 ±0.03mm Axis movement Working range Maximum speed 1 axis ±175° ±180°/s 2 axis ﹢85°/﹣265° ±180°/s 3 axis ±150° ±180° 4 axis ﹢85°/﹣265° ±180°/s 5 axis ±175° ±180°/s 6 axis ±175° ±180°/s Typical TCP speed 1m/s Footprint 128mm Weight ≈15kg(Weight without wire) Operating temperature 0-45℃ Operating humidity 90%RH(non-condensing) Materials Aluminium、Steel The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.
Provide convenience for robot integrators.
It's range of applications spans, across industries, such as 3C, semiconductor, metal processing, industrial glueing,retail (coffee food) and more.
This innovative solution offers the answer, for intelligent manufacturing and automation needs.
Payload 3kg Reach 622mm Degrees of freedom 6 rotating joints HMI 10.1 inch teach pendant or mobile terminal Web APP Movement Repeatability ±0.02mm Pose repeatability oer ISO 9283 ±0.03mm Axis movement Working range Maximum speed 1 axis ±175° ±180°/s 2 axis ﹢85°/﹣265° ±180°/s 3 axis ±150° ±180° 4 axis ﹢85°/﹣265° ±180°/s 5 axis ±175° ±180°/s 6 axis ±175° ±180°/s Typical TCP speed 1m/s Footprint 128mm Weight ≈15kg(Weight without wire) Operating temperature 0-45℃ Operating humidity 90%RH(non-condensing) Materials Aluminium、Steel The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.
Provide convenience for robot integrators.
Weight
15 kg
Dimensions
Footprint: 128mm, Reach: 622mm
Payload
3kg
Reach
622mm
Degrees of freedom
6 rotating joints
Repeatability
±0.02mm
Pose repeatability per ISO 9283
±0.03mm
Typical TCP speed
1m/s
Footprint
128mm
Weight
≈15kg (without wire)
Operating temperature
0-45℃
Operating humidity
90%RH (non-condensing)
HMI
10.1 inch teach pendant or mobile terminal Web APP
Maximum speed (all axes)
±180°/s
FR3 is a new generation of six-axis cobot product.
This innovative solution offers the answer, for intelligent manufacturing and automation needs.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Provide convenience for robot integrators.
