In Stock

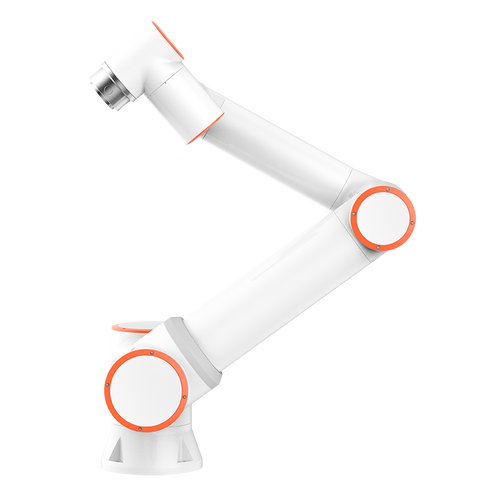

DEVONICS FAIRINO FR16
FAIRINO
$11,699.00
FR16 can efficiently and reliably handle the demands of heavy-duty tasks, suitable for automated tasks with high payload.
Product Description
FR16 can efficiently and reliably handle the demands of heavy-duty tasks, suitable for automated tasks with high payload.
The FR16 balances speed, load, and safety with the dedication, safety, and reliability qualities of FAIRINO cobot.
Payload 16kg Reach 1034mm Degrees of freedom 6 rotating joints HMI 10.1 inch teach pendant or mobile terminal Web APP Movement Repeatability ±0.02mm Pose repeatability oer ISO 9283 ±0.03mm Axis movement Working range Maximum speed 1 axis ±175° ±180°/s 2 axis ﹢85°/﹣265° ±180°/s 3 axis ±150° ±180° 4 axis ﹢85°/﹣265° ±180°/s 5 axis ±175° ±180°/s 6 axis ±175° ±180°/s Typical TCP speed 1m/s Footprint 190mm Weight ≈40kg(Weight without wire) Operating temperature 0-45℃ Operating humidity 90%RH(non-condensing) Materials Aluminium、Steel The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.
Provide convenience for robot integrators.
The FR16 balances speed, load, and safety with the dedication, safety, and reliability qualities of FAIRINO cobot.
Payload 16kg Reach 1034mm Degrees of freedom 6 rotating joints HMI 10.1 inch teach pendant or mobile terminal Web APP Movement Repeatability ±0.02mm Pose repeatability oer ISO 9283 ±0.03mm Axis movement Working range Maximum speed 1 axis ±175° ±180°/s 2 axis ﹢85°/﹣265° ±180°/s 3 axis ±150° ±180° 4 axis ﹢85°/﹣265° ±180°/s 5 axis ±175° ±180°/s 6 axis ±175° ±180°/s Typical TCP speed 1m/s Footprint 190mm Weight ≈40kg(Weight without wire) Operating temperature 0-45℃ Operating humidity 90%RH(non-condensing) Materials Aluminium、Steel The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.
Provide convenience for robot integrators.
Weight
40 kg
Dimensions
Reach: 1034mm, Footprint: 190mm
Payload
16kg
Reach
1034mm
Degrees of Freedom
6 rotating joints
Repeatability
±0.02mm
Pose Repeatability (ISO 9283)
±0.03mm
Typical TCP Speed
1m/s
Maximum Speed (All Axes)
±180°/s
Operating Temperature
0-45℃
Operating Humidity
90% RH (non-condensing)
Footprint
190mm
Weight
≈40kg (without wire)
HMI
10.1 inch teach pendant or mobile terminal Web APP
The FR16 balances speed, load, and safety with the dedication, safety, and reliability qualities of FAIRINO cobot.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Provide convenience for robot integrators.
