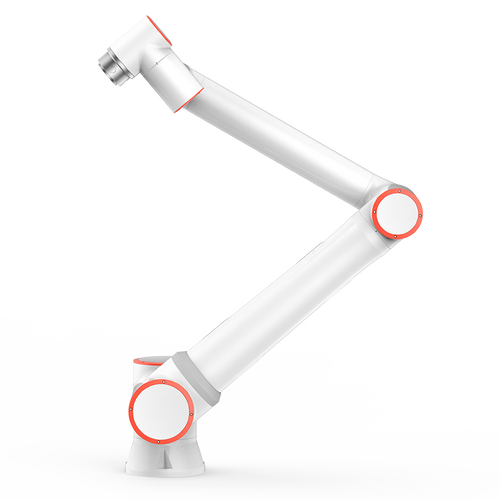

DEVONICS FAIRINO FR10
FAIRINO
$10,199.00
FR10 cobot not only upgrades flexibility, safety, ease of use, and flexibility, but also possesses excellent industrial-grade precision, stability.
Product Description
FR10 cobot not only upgrades flexibility, safety, ease of use, and flexibility, but also possesses excellent industrial-grade precision, stability.
With the features of combined firmness and gentleness and advanced technology, FR10 wil be an ideal solution for flexible intellectual manufacturing applications.
Payload 10kg Reach 1400mm Degrees of freedom 6 rotating joints HMI 10.1 inch teach pendant or mobile terminal Web APP Movement Repeatability ±0.02mm Pose repeatability oer ISO 9283 ±0.05mm Axis movement Working range Maximum speed 1 axis ±175° ±180°/s 2 axis ﹢85°/﹣265° ±180°/s 3 axis ±150° ±180° 4 axis ﹢85°/﹣265° ±180°/s 5 axis ±175° ±180°/s 6 axis ±175° ±180°/s Typical TCP speed 1m/s Footprint 190mm Weight ≈40kg(Weight without wire) Operating temperature 0-45℃ Operating humidity 90%RH(non-condensing) Materials Aluminium、Steel The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.
Provide convenience for robot integrators.
With the features of combined firmness and gentleness and advanced technology, FR10 wil be an ideal solution for flexible intellectual manufacturing applications.
Payload 10kg Reach 1400mm Degrees of freedom 6 rotating joints HMI 10.1 inch teach pendant or mobile terminal Web APP Movement Repeatability ±0.02mm Pose repeatability oer ISO 9283 ±0.05mm Axis movement Working range Maximum speed 1 axis ±175° ±180°/s 2 axis ﹢85°/﹣265° ±180°/s 3 axis ±150° ±180° 4 axis ﹢85°/﹣265° ±180°/s 5 axis ±175° ±180°/s 6 axis ±175° ±180°/s Typical TCP speed 1m/s Footprint 190mm Weight ≈40kg(Weight without wire) Operating temperature 0-45℃ Operating humidity 90%RH(non-condensing) Materials Aluminium、Steel The system adopts the leading EtherCAT bus architecture, with strong real-time and high stability, which comprehensively improves the production performance in various scenarios.
Core components are self-developed and self-produced, with patented design scheme, modular design scheme, and full closed-loop joint torque feedback to ensure safety and efficiency.
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.
Provide convenience for robot integrators.
Weight
40 kg
Dimensions
Footprint: 190mm
Payload
10kg
Reach
1400mm
Degrees of freedom
6 rotating joints
Repeatability (Pose per ISO 9283)
±0.05mm
Repeatability
±0.02mm
Typical TCP speed
1m/s
Maximum speed (all axes)
±180°/s
Weight
≈40kg (without wire)
Footprint
190mm
Operating temperature
0-45℃
Operating humidity
90%RH (non-condensing)
HMI
10.1 inch teach pendant or mobile terminal Web APP
Adopt graphical programming, smooth drag teaching function, multi-axis linkage, easy integration.
IP66 protection, perfectly adapted to all types of application scenarios, safer and more reliable.
Provide convenience for robot integrators.
