In Stock
CobotPump | ReBeL | Electric
J. Schmalz GmbH
$1,986.26
Compact plug‑and‑play vacuum handling set for lightweight robots and space‑restricted automation.
Product Description
The Schmalz ECBPMi IGUS handling set is a ready-to-connect end-of-arm solution designed for efficient vacuum-based gripping on IGUS ReBeL cobots.
The miniature electric vacuum generator delivers up to 1.6 l/min suction capacity at a 60% vacuum level, enabling reliable handling of airtight workpieces up to 3 kg.
Its lightweight construction increases usable robot payload, while the modular flange design ensures uncomplicated installation in tight automation layouts.

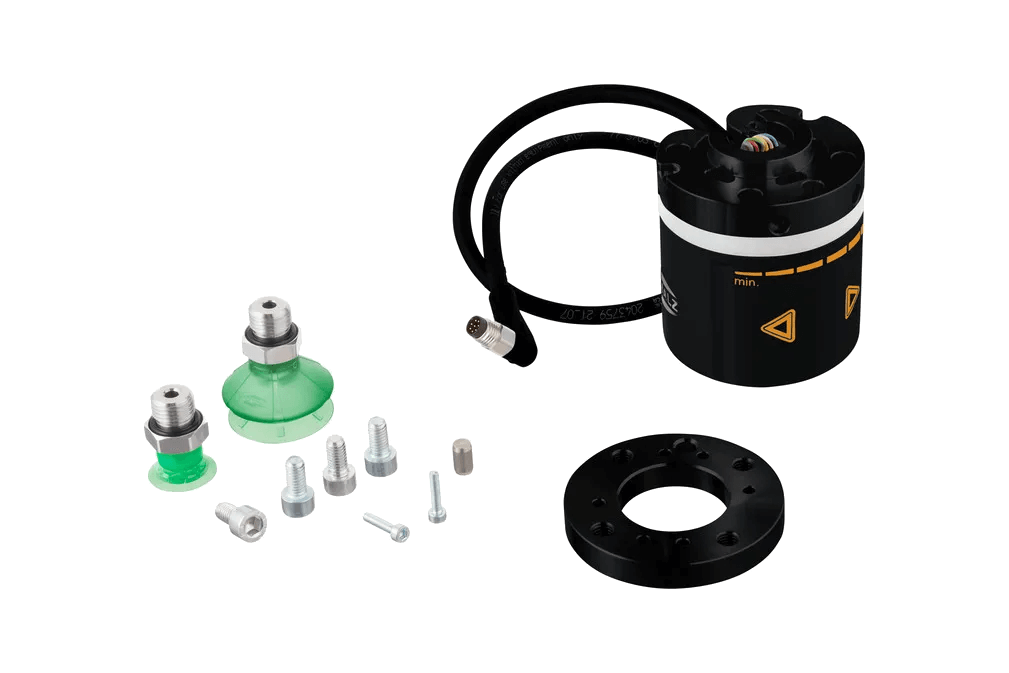

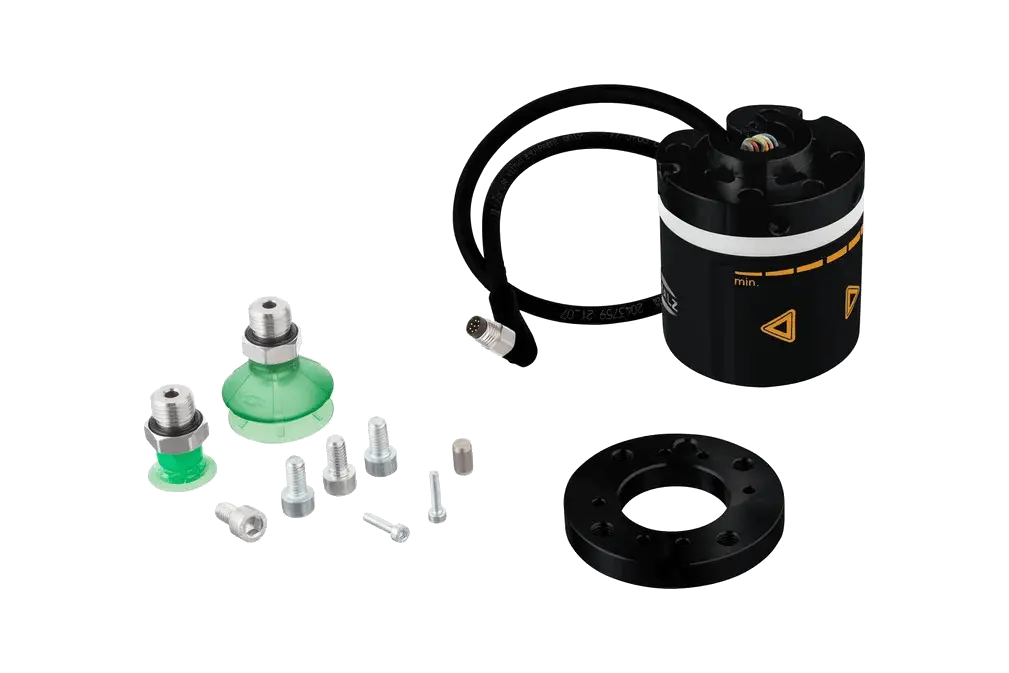

The set includes the ECBPMi generator, flange plate and both flat and bellows suction cups, enabling fast adaptation to different workpiece surfaces.
Intuitive operation is ensured through a capacitive interface with status LEDs.
With 24 V DC supply, IP40 protection and operating temperatures from 0–40 °C, the system integrates seamlessly into modern EOAT setups without the need for compressed air.
Ideal for bin picking, small-part handling, laboratory automation and cobot applications where electric, clean and maintenance-friendly vacuum technology is required.
The miniature electric vacuum generator delivers up to 1.6 l/min suction capacity at a 60% vacuum level, enabling reliable handling of airtight workpieces up to 3 kg.
Its lightweight construction increases usable robot payload, while the modular flange design ensures uncomplicated installation in tight automation layouts.
The set includes the ECBPMi generator, flange plate and both flat and bellows suction cups, enabling fast adaptation to different workpiece surfaces.
Intuitive operation is ensured through a capacitive interface with status LEDs.
With 24 V DC supply, IP40 protection and operating temperatures from 0–40 °C, the system integrates seamlessly into modern EOAT setups without the need for compressed air.
Ideal for bin picking, small-part handling, laboratory automation and cobot applications where electric, clean and maintenance-friendly vacuum technology is required.
Weight
3 kg
Dimensions
N/A
Part Number
10.03.01.00822
RBTX SKU
RBTX-SLZ-0082
Max Payload
0.3 kg
Max Vacuum value
-600 mbar
Weight
0.225 kg
Max Rated flow
0.096
