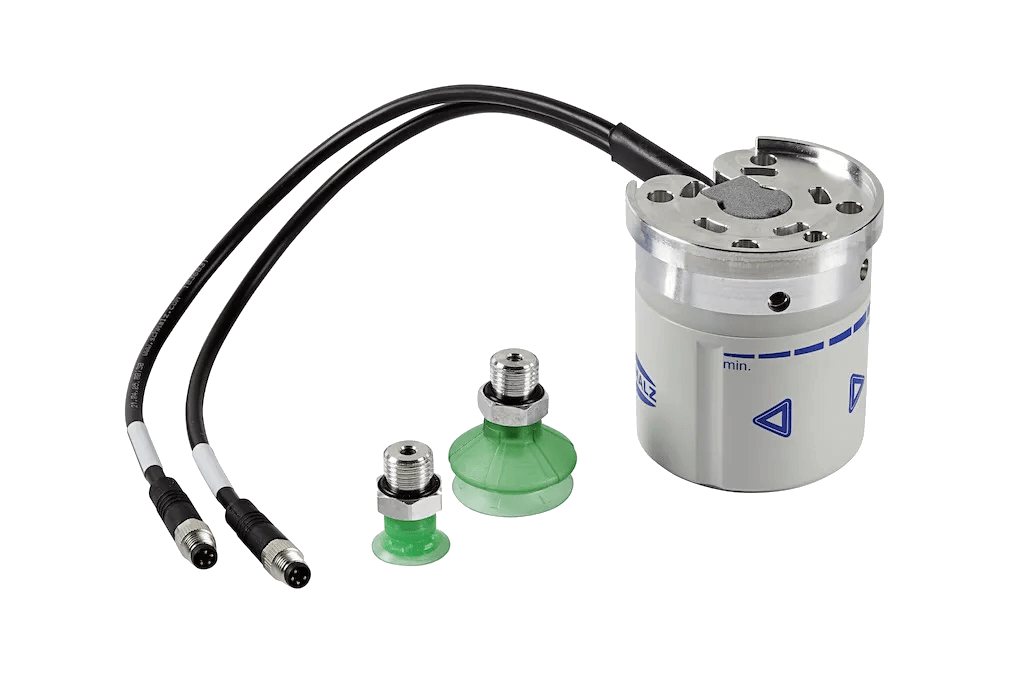

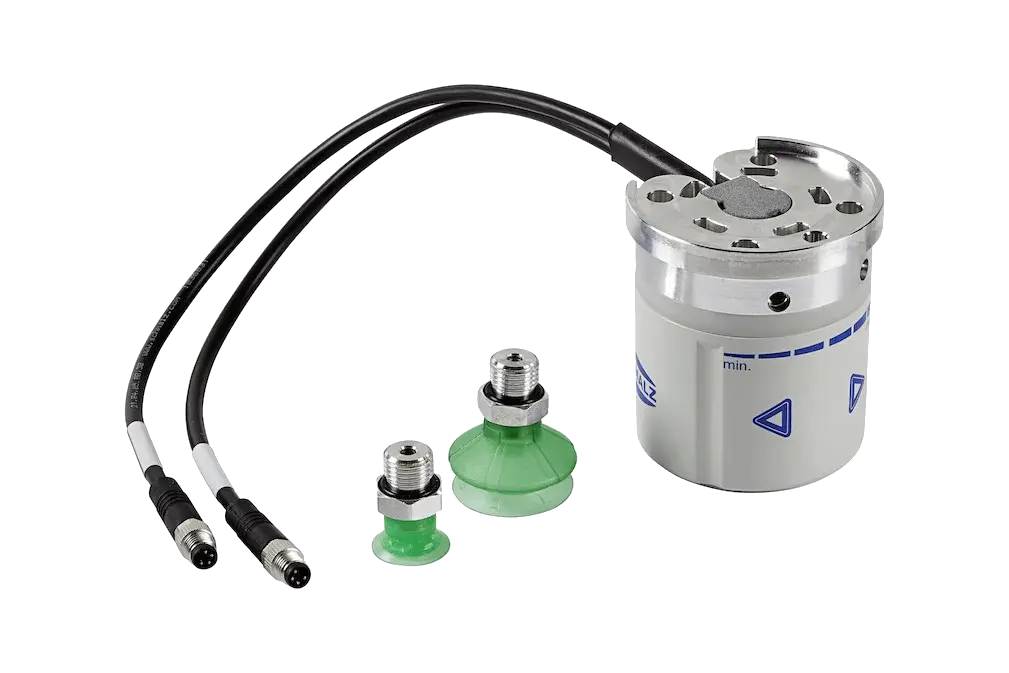

The Schmalz ROB-SET ECBPMi FRUITCORE is a complete vacuum handling system engineered for direct integration with Fruitcore HORST collaborative robots.
The kit includes an ECBPMi miniature electric vacuum generator, adapter flange, suction cup, and mounting hardware, eliminating the need for external compressed air infrastructure.
The electric vacuum generator produces a maximum vacuum of -600 mbar with a rated flow of 0.096, delivering 1.6 l/min suction flow at 60% evacuation.
This enables handling of airtight workpieces up to 3 kg.
Weighing 0.225 kg, the system adds minimal mass to the robot's end-of-arm tooling.
The configuration suits pick-and-place applications involving textiles, foils, thin sheet materials, and other delicate flat goods where gentle, reliable gripping is required.
The integrated electrical design removes dependencies on pneumatic supply lines, simplifying installation and improving workspace flexibility in compact automation cells.
