How much weight can this vertical lift actuator lift?

The Römheld ShopFloor Linear Actuator can lift a maximum of 2000 N and tolerates up to 500 N of bending moment from side-loads. This makes it suitable for collaborative robot integration and automation tasks requiring robust vertical motion.

What voltage does the Römheld ShopFloor actuator run on?

The actuator runs on 24 VDC and includes a 2.5 m smooth industrial connection cable for direct integration into standard control systems. The included cable allows for easy setup into most automation architectures.

How much vertical travel does this linear actuator have?

The Römheld ShopFloor Linear Actuator provides 600 mm of vertical stroke, making it suitable for Z-axis motion on cobot platforms and applications requiring moderate-range lifting and positioning.

Does this actuator have built-in position feedback?

Yes, the Römheld ShopFloor Linear Actuator includes an integrated incremental travel measuring system for closed-loop positioning, ensuring precise and repeatable vertical motion control.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock25 kg Payload

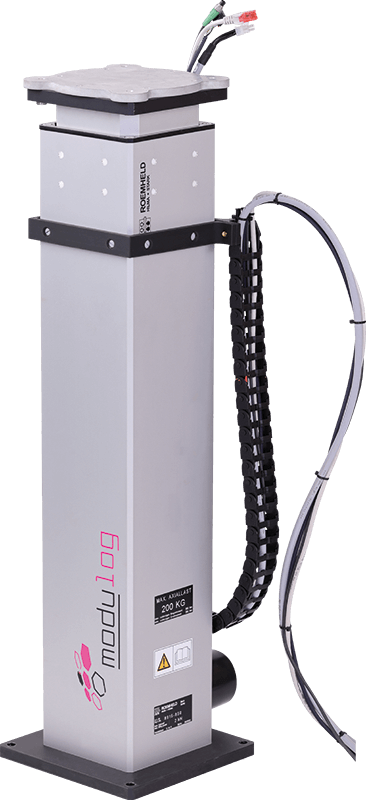

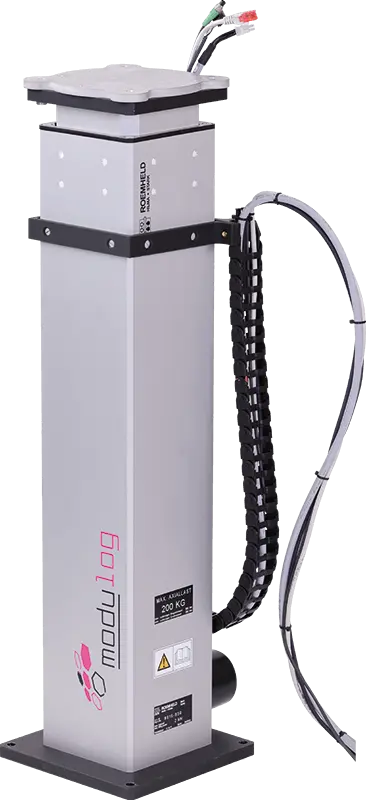

Römheld ShopFloor Linear Actuator, 2000 N, 600 mm stroke

Name: Römheld ShopFloor Linear Actuator, 2000 N, 600 mm stroke
Brand: Römheld
SKU: 3434
Price: 3295 USD
Availability: InStock

Römheld GmbH Friedrichshütte

$3,295.00

Electromechanical linear actuator with 2000 N force, 600 mm stroke, and integrated position feedback. 24 VDC powered module for vertical motion in assembly, pick-and-place, and collaborative robot applications.

The Römheld ShopFloor Linear Actuator is an electromechanical actuator with a 600 mm stroke, engineered for vertical positioning tasks in industrial automation and collaborative robot systems.

Headline Specifications:

Lifting force capacity: 2000 N
Stroke length: 600 mm
Input voltage: 24 VDC
Maximum bending moment: 500 N

Features and Integration:

Integrated incremental travel measuring system for precise closed-loop control
2.5 m smooth industrial connection cable for easy integration into standard control architectures
Suited for vertical lift modules and applications requiring robust side-load stability

Applications:

Collaborative robot Z-axis motion (mounts to most ShopFloor series cobot platforms)
Automated assembly lines
Pick-and-place equipment
Inspection systems needing repeatable vertical actuator performance

Buyer Guidance:

Choose the Römheld ShopFloor Linear Actuator, model Römheld ShopFloor Linear Actuator, 2000 N, 600 mm stroke, for applications requiring electromechanical lifting with high positional accuracy and moderate side-loads
Suitable for rapid integration into machine tending, welding, and palletising systems with standard control voltage
Request quote, view specifications PDF, or check compatibility for detailed engineering support

Weight10 kg

Payload: 2000 N
Stroke: 600 mm
Power Supply: 24 VDC
Cable Length: 2.5 m
Bending Moment: 500 N

Electromechanical design with incremental travel measuring system for closed-loop positioning
Runs on 24 VDC with 2.5 m smooth connection cable included
Lifts 2000 N max with 500 N bending moment tolerance
Delivers 600 mm vertical travel for Z-axis cobot integration
Handles side-loads reliably in collaborative robot and automation tasks

: The Römheld ShopFloor Linear Actuator is an electromechanical actuator designed for vertical positioning in collaborative robots, automated assembly lines, pick-and-place equipment, and inspection systems. It delivers 600 mm of vertical travel and can lift loads up to 2000 N with reliable side-load handling.
: The Römheld ShopFloor Linear Actuator can lift a maximum of 2000 N and tolerates up to 500 N of bending moment from side-loads. This makes it suitable for collaborative robot integration and automation tasks requiring robust vertical motion.
: The actuator runs on 24 VDC and includes a 2.5 m smooth industrial connection cable for direct integration into standard control systems. The included cable allows for easy setup into most automation architectures.
: The Römheld ShopFloor Linear Actuator provides 600 mm of vertical stroke, making it suitable for Z-axis motion on cobot platforms and applications requiring moderate-range lifting and positioning.
: Yes, the Römheld ShopFloor Linear Actuator includes an integrated incremental travel measuring system for closed-loop positioning, ensuring precise and repeatable vertical motion control.

Electromechanical linear lift versus pneumatic or manual positioning:

The Römheld ShopFloor Linear Actuator is an electromechanical Z-axis lift for collaborative robots and automation lines where repeatable vertical motion with closed-loop control matters. It differs from pneumatic cylinders by running on standard 24 VDC and measuring position electronically, and from manual lift tables by automating height adjustment across production cycles.

For cobot pick-and-place on shared assembly cells, the 600 mm stroke and 2000 N capacity handle moderate payloads while the integrated position feedback ensures placement accuracy without air compressor infrastructure.
On inspection or welding stations requiring side-load stability, the 500 N bending moment tolerance keeps the actuator stable during lateral forces that would deflect lighter or purely pneumatic systems.
In rapid machine-tending lines where cycle time depends on repeatable vertical moves, closed-loop control eliminates drift and eliminates need for manual re-zeroing between shifts.
For existing automation platforms already running 24 VDC control, the supplied 2.5 m cable and standard voltage input cut integration time versus custom pneumatic or hydraulic routing.
