Is the Linak LC3E0008DK compatible with Universal Robots?

Yes, the LC3E0008DK ELEVATE is designed specifically for Universal Robots and also supports other cobot brands via driver software. The column mounts using supplied interface plates and communicates directly through Modbus TCP/IP without requiring external controller hardware.

What payload can the LC3E0008DK handle?

The LC3E0008DK handles a 100 kg load with low deflection and delivers a 1,400 Nm dynamic bending moment. It maintains 100 mm/sec load-independent speed regardless of the weight being lifted.

How compact is this lifting column for tight workspaces?

The LC3E0008DK has a 163 mm x 163 mm footprint, making it compact enough to fit into confined work areas while still providing 900 mm of vertical travel. Its small cross-section allows installation in palletising stations and ergonomic workstations with space constraints.

Does this column need an external controller?

No, the LC3E0008DK ELEVATE includes an integrated controller for direct Modbus TCP/IP command and diagnostics. Plug-and-play integration means no external controller hardware is needed for operation or diagnostics.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockCobot-Ready

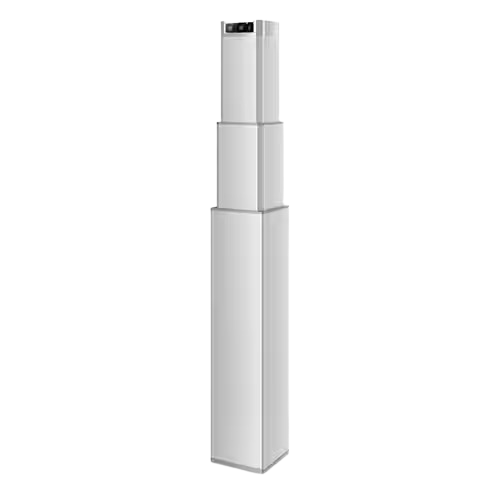

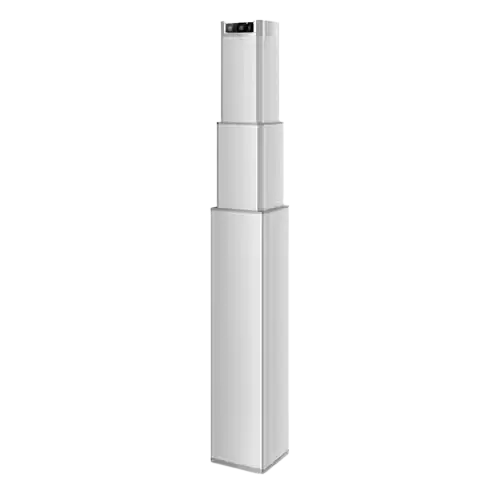

Linak LC3E0008DK ELEVATE Lifting Column, 900 mm, Universal Robots

Name: Linak LC3E0008DK ELEVATE Lifting Column, 900 mm, Universal Robots
Brand: Linak
SKU: 3433
Price: 8695 USD
Availability: InStock

Linak

$8,695.00

900 mm three-stage electric lifting column with integrated Modbus TCP/IP controller for Universal Robots cobots. Load-independent speed up to 100 mm/sec, 163 mm x 163 mm footprint, and plug-and-play mounting compatibility for palletizing, conveyor lift, and height-adjustable workstations.

The Linak LC3E0008DK ELEVATE is a three-stage electric lifting column designed for height extension and vertical automation with collaborative robots, especially Universal Robots, in industrial environments.

Features:

Integrated controller for direct Modbus TCP/IP control and diagnostics
900 mm vertical travel for increased cobot reach
Compact footprint: 163 mm x 163 mm cross-section
Mounts to Universal Robots and other cobot models using versatile interface plates

Applications:

Palletising stations requiring high vertical travel
Height-adjustable conveyor and packaging systems for varied robot elevations
Ergonomic workstations supporting collaborative robot integration
Automated work cells benefitting from column lift versatility

Specifications:

Model: LC3E0008DK ELEVATE
Vertical stroke: 900 mm
Cross-section: 163 mm x 163 mm
Mounting interface: Universal Robots compatible, supports other cobot configurations

Comparative Details:

ELEVATE variant includes onboard integrated controller, software drivers, and cobot-specific accessories
Distinguishes itself from standard LC3 IC industrial variants by offering plug-and-play integration for collaborative robot applications

Integration Instructions:

Connect the lifting column to Universal Robots or other cobots using the supplied mounting plates
Establish communication with the integrated controller via Modbus TCP/IP; robot-specific drivers facilitate software integration
No external controller hardware required for operation or diagnostics

Q&A:

What is a cobot lifting column? An electric lifting column enables collaborative robots to perform height-adjustable tasks such as palletising and pick-and-place.
Is the Linak LC3E0008DK compatible with Universal Robots? Yes, the ELEVATE variant is designed for direct integration with Universal Robots and other cobot brands.
What are the dimensions? The column features a 900 mm vertical stroke and a 163 mm x 163 mm footprint.

Weight29 kg

Stroke Length900 mm

Gripper Dimensions163 mm x 163 mm mm

Payload: 70 kg
Reach: 900 mm
Mounting Interface: 163 mm x 163 mm
Controller: Integrated
Communication Interfaces: Industrial

Extends cobot reach with 900 mm vertical travel
Compact 163 mm x 163 mm footprint fits tight workspaces
Integrated controller enables direct Modbus TCP/IP command and diagnostics
Universal Robots compatible, supports multiple cobot brands via driver software
Delivers 100 mm/sec load-independent speed for fast palletising cycles
Handles 100 kg load with low deflection and 1,400 Nm dynamic bending moment
Plug-and-play integration, no external controller hardware needed

: A column lift is an electric lifting device that extends vertical reach and enables height-adjustable automation. The Linak LC3E0008DK ELEVATE is a three-stage electric lifting column that adds 900 mm of vertical travel to collaborative robots for tasks like palletising and pick-and-place work.
: Yes, the LC3E0008DK ELEVATE is designed specifically for Universal Robots and also supports other cobot brands via driver software. The column mounts using supplied interface plates and communicates directly through Modbus TCP/IP without requiring external controller hardware.
: The LC3E0008DK handles a 100 kg load with low deflection and delivers a 1,400 Nm dynamic bending moment. It maintains 100 mm/sec load-independent speed regardless of the weight being lifted.
: The LC3E0008DK has a 163 mm x 163 mm footprint, making it compact enough to fit into confined work areas while still providing 900 mm of vertical travel. Its small cross-section allows installation in palletising stations and ergonomic workstations with space constraints.
: No, the LC3E0008DK ELEVATE includes an integrated controller for direct Modbus TCP/IP command and diagnostics. Plug-and-play integration means no external controller hardware is needed for operation or diagnostics.

Electric lifting column versus fixed-height cobot mounting:

The Linak LC3E0008DK ELEVATE extends collaborative robots with 900 mm of vertical travel, enabling dynamic height adjustment in tight workspaces. Unlike bolting a cobot to a fixed frame, this lifting column brings the end-effector to multiple work heights on the same cell, with no external controller hardware needed.

For palletising stations with stacked layers at different heights, the 900 mm stroke reaches full pallet depth without repositioning the robot base.
In compact cells with 163 mm x 163 mm footprint, the column fits alongside conveyor and tooling where a wider pedestal mount cannot.
For load-independent cycles on high-throughput lines, 100 mm/sec speed delivers fast up-and-down moves while handling 100 kg payloads with minimal deflection.
On multi-robot or shared workstations, plug-and-play Modbus TCP/IP integration means the cobot controller sends lift commands directly, no separate PLC required.
