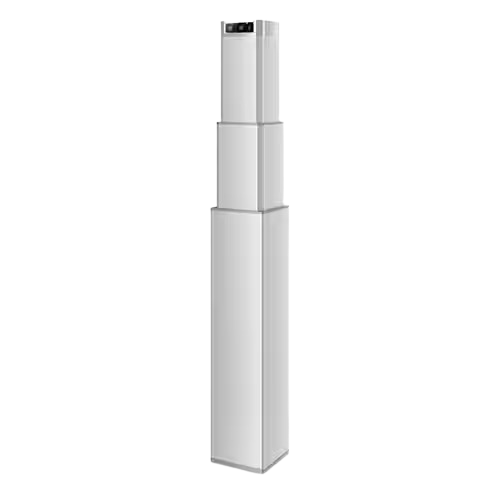

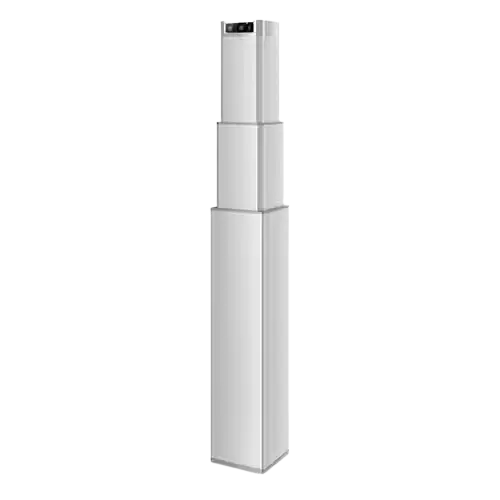

Linak LC3E0007DK ELEVATE lifting column, 900 mm, 3-stage

Lifting Column for Cobot Automation:

Linak LC3E0007DK ELEVATE is a three-stage electric lifting column engineered for vertical motion in collaborative robot applications, especially for Universal Robots and cobot palletising systems.

• Stroke length: 900 mm
• Maximum load: 100 kg
• Speed: up to 100 mm/sec
• Mounting interface: 163 x 163 mm profile, versatile plates

Applications and Benefits:

This lifting column suits height-adjustable conveyor systems, ergonomic workstations, and automated palletisers where precise programmable vertical positioning is required. By extending cobot vertical reach, the Linak LC3E0007DK ELEVATE optimises automation workflows and flexibility, helping reduce setup time and improve ergonomic safety. Integrated controller architecture streamlines system design and maintenance with built-in diagnostics.

• Enhances z-axis linear motion in automated lines
• Reliably handles heavy loads with low deflection
• Plug-and-play compatibility for quick installation

Integration and Compatibility:

The integrated controller supports Modbus TCP/IP and cobot brand-specific drivers for seamless integration. ELEVATE interfaces are designed for collaborative robot platforms including Universal Robots. Accessories for Universal Robots or other models are available through the store’s Universal Robots compatible accessories section and linear motion product pages.

Comparative Attributes:

Compared to other electric lifting columns, the LC3E0007DK ELEVATE delivers a fast, load-independent speed and strong bending moment resistance. The three-stage design and 900 mm stroke provide greater adaptability than many basic column lift variants.

Materials and Specifications:

Industrial-grade materials withstand demanding environments, supporting up to 1,400 Nm dynamic bending moment with low deflection at maximum load. The 24 V controller can be paired with accessories such as the ELEVATE Power Supply Unit for enhanced safety functionality.

Frequently Asked Questions:

• Is the LC3E0007DK ELEVATE compatible with Universal Robots? Yes, this lifting column is specifically designed for Universal Robots and other collaborative robot brands.
• What is the maximum load capacity? The lifting column supports up to 100 kg.
• Can the column lift be integrated into existing automated lines? Yes, the electric column supports industrial communication interfaces for easy integration into automation systems.
• What are the main benefits for production efficiency? The system improves vertical reach, reduces setup time, and streamlines maintenance in palletising and ergonomic workstation applications.
