What is a workcell in robotics?

A workcell is a self-contained work station built around a robot, typically including the robot frame, fixtures, tooling, and control equipment arranged to perform tasks like machine tending, palletizing, pick-and-place, or welding. This frame provides the structural base and integrated lockable cabinet for controllers and power supplies needed in a complete workcell.

Can the item Robot Workstation Frame be adjusted for height?

Yes, the frame features stepless height-adjustable feet that level and stabilize the 1600x800 mm base, allowing you to accommodate different floor conditions and work heights.

How do I mount equipment to this robot frame?

The frame uses T-slot compatible hardware and a grooved item Groove Plate work surface that enable toolless mounting and repositioning of fixtures and equipment. It accepts major robot mounting plates directly and supports flexible equipment positioning on the 800 mm work surface.

What robots are compatible with this workstation frame?

The frame accepts mounting plates for ABB, KUKA, Universal Robots, Yaskawa, and other major robot brands. Item manufactures specific robot mounting plates to interface with this frame.

Does this frame have storage for electrical equipment?

The frame includes an integrated lockable base cabinet that safely stores control units and power supplies, with brush strip cable management that routes robot arm umbilicals cleanly above the cabinet doors. The cabinet also provides suspension provisions for controllers and battery backup systems.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockStructural Mount

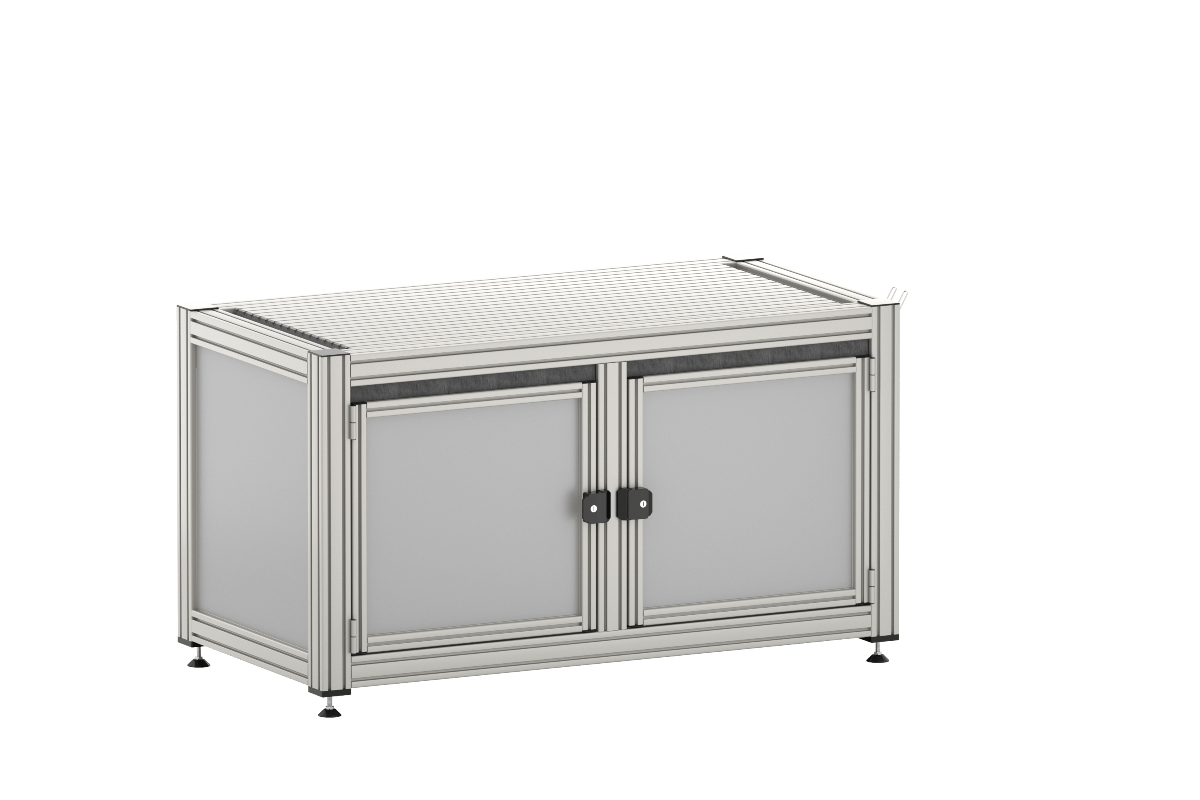

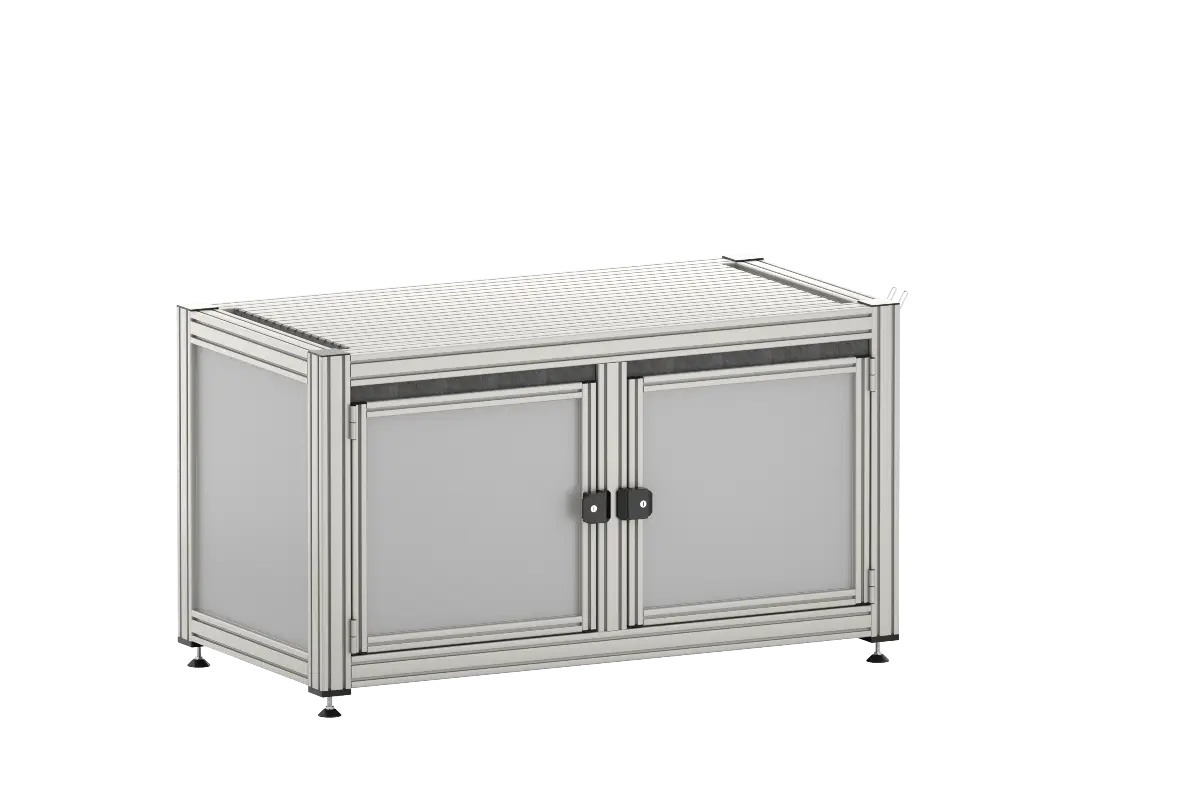

item Robot Workstation Frame, 1600x800 mm

Name: item Robot Workstation Frame, 1600x800 mm
Brand: item
SKU: 3368
Price: 10095 USD
Availability: InStock

item

$10,095.00

1600x800 mm robot workstation frame with item Groove Plate work surface for flexible robot and equipment mounting, lockable base cabinet for electrical components, height-adjustable feet, and integrated cable management. Supports collaborative and industrial robot installations in compact work cells.

The robot workstation frame is an industrial mounting solution for integrating robots into compact work cells in manufacturing, automation, and machine shop environments.

Robot Workstation Frame Specifications:

Frame dimensions: 1600x800 mm
Work surface length: 800 mm
Stepless height-adjustable feet for leveling
Grooved item Groove Plate work surface for flexible robot and equipment positioning

Features and Compatibility:

Integrated lockable base cabinet provides enclosed storage for control units and power supplies
Brush strip cable management above cabinet doors maintains clean routing for robot arm umbilicals
T-slot compatible hardware supports toolless mounting and repositioning of fixtures
Suspension provisions for controllers and battery backup systems inside the cabinet
Compatible with robot mounting plates for ABB, KUKA, Universal Robots, Yaskawa, and other major robot brands

Applications and Benefits:

Designed for modular robot work cell framing, collaborative robot workstation setups, and industrial robot work cell frame integration
Ideal for machine tending, palletising, pick-and-place, and welding workstations
Supports custom robot frame work construction for integrators needing standardized framing and flexible electrical enclosure

Related Products and Expansion:

Mounting plates: Item manufactures robot mounting plates to interface with this robot workstation frame
Cable management systems: Compatible cable management accessories available for enhanced installation

The item Robot Workstation Frame, 1600x800 mm, suits automation projects requiring a modular robot mounting frame with integrated electrical enclosure, adaptable work surface, and secure cable routing in a compact industrial robot work cell.

Weight109 kg

Stroke Length800 mm

Gripper Dimensions1600x800 mm

Dimensions: 1600 mm x 800 mm
Adjustable Height: Steplessly height-adjustable feet
Mounting Surface: Item Groove Plate
Cable Management: Brush strips integrated
Storage Cabinet: Integrated lockable base cabinet
Mounting Compatibility: Various robot brands

Compact robot integration frame, 1600x800 mm base footprint
Grooved item Groove Plate work surface enables flexible equipment positioning
Stepless height-adjustable feet level and stabilize the frame
Lockable base cabinet stores control units and power supplies safely
Brush strip cable management routes robot arm umbilicals cleanly above doors
T-slot compatible hardware supports toolless mounting and repositioning
Accepts major robot mounting plates, ABB, KUKA, Universal Robots, Yaskawa
Brush strips are integrated into the work surface for cable management.
Compatible with various robot brands.

: The item Robot Workstation Frame, 1600x800 mm, is an industrial mounting solution that integrates robots into compact work cells for manufacturing, automation, and machine shop environments. It provides a modular base with mounting plates compatible with ABB, KUKA, Universal Robots, Yaskawa, and other major robot brands.
: A workcell is a self-contained work station built around a robot, typically including the robot frame, fixtures, tooling, and control equipment arranged to perform tasks like machine tending, palletizing, pick-and-place, or welding. This frame provides the structural base and integrated lockable cabinet for controllers and power supplies needed in a complete workcell.
: Yes, the frame features stepless height-adjustable feet that level and stabilize the 1600x800 mm base, allowing you to accommodate different floor conditions and work heights.
: The frame uses T-slot compatible hardware and a grooved item Groove Plate work surface that enable toolless mounting and repositioning of fixtures and equipment. It accepts major robot mounting plates directly and supports flexible equipment positioning on the 800 mm work surface.
: The frame accepts mounting plates for ABB, KUKA, Universal Robots, Yaskawa, and other major robot brands. Item manufactures specific robot mounting plates to interface with this frame.
: The frame includes an integrated lockable base cabinet that safely stores control units and power supplies, with brush strip cable management that routes robot arm umbilicals cleanly above the cabinet doors. The cabinet also provides suspension provisions for controllers and battery backup systems.

Modular Frame vs. Custom Welded Structures:

This frame replaces custom-built welded mounting bases with a standardized, reconfigurable solution. Choose it when you need fast setup, flexible repositioning, and integrated cable and control storage without fabrication lead time.

For tight production cells under 2 m2, the 1600x800 mm footprint fits standard floor space while the grooved work surface lets you reposition robots and fixtures without rebuild.
When control units and power supplies must stay clean and organized, the lockable base cabinet keeps them enclosed and suspended, protecting equipment from shop debris.
For integrators supporting multiple robot brands, ABB, KUKA, Universal Robots, and Yaskawa mounting plate compatibility eliminates custom adapter design per project.
On machine-tending or palletising lines where cable routing affects safety and aesthetics, the brush strip management above cabinet doors keeps umbilicals off the floor and out of operator reach.
If your work cell layout changes seasonally or between product runs, T-slot hardware and stepless height-adjustable feet allow tool-free reconfiguration and floor leveling in minutes.
