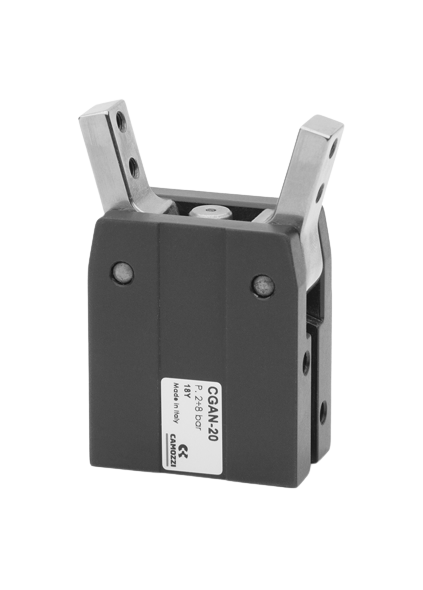

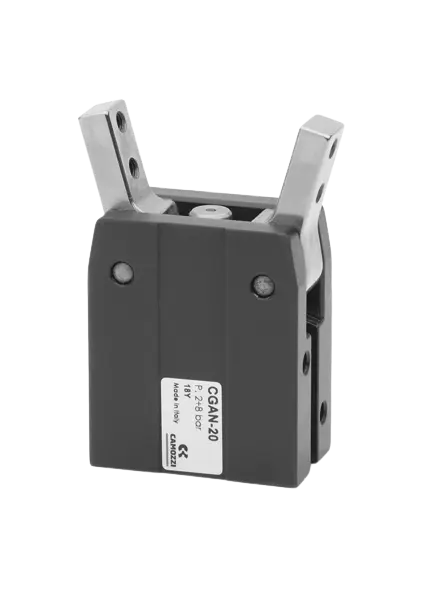

Camozzi CGAN-20-EX Pneumatic Gripper, 30° Angular

Product Overview:

Camozzi CGAN-20-EX Pneumatic Angular Gripper is a compact end effector designed for industrial automation systems requiring precise object handling in tight spaces.

Model Specifications:

• Angular Range: -10° to 30°
• Maximum Gripping Force: 97 N
• Repeatability: 0.05 mm
• Unit Weight: 0.213 kg

Key Features:

• Three-side mounting for adaptable installation using standard or optional adapter plates
• Integrated for compact tooling where space constraints are critical
• Maintains secure handling performance and positioning accuracy
• Operates efficiently in ambient temperatures up to 60°C

Material and Pneumatic Details:

Camozzi CGAN-20-EX utilizes pneumatic actuation, ideal for environments where pneumatic air grippers are preferred. Consult Camozzi for details on body material, seal type, port size, and maximum pressure rating.

Mounting and Integration:

This gripper mounts on three sides, supporting flexible integration with assembly lines, packaging machinery, and food and beverage equipment. Optional adapters allow for further customization to suit varied tooling setups. Mounting hole sizes and adapter specifications are available upon request from Camozzi.

Applications:

• Suitable for pick and place, pick and hold, precise transport, and small part handling
• Performs reliably in production environments demanding throughput and accurate placement

Comparison Factors:

The CGAN-20-EX from Camozzi CGAN series distinguishes itself from conventional 2-finger and parallel pneumatic grippers by its 30° angular operation, which enables compact installation in restricted spaces. For broader gripping ranges or increased force, Camozzi and other brands offer alternative models.
