What is the gripping force of SCHUNK 305199

The SCHUNK 305199 delivers 225 N of gripping force with 0.1 mm repeatability, making it reliable for handling small components in assembly applications. The compact angular design fits into space-restricted cells while maintaining consistent grip performance.

How much does this pneumatic gripper weigh

The SCHUNK 305199 weighs just 0.04 kg, significantly lighter than standard 2-finger grippers. This minimal weight cuts robot payload demand and boosts cycle speed in automated systems.

What temperature can this gripper operate in

The SCHUNK 305199 operates reliably in demanding environments up to 90 degrees Celsius. This thermal stability makes it suitable for assembly lines where process quality depends on consistent performance across temperature ranges.

Is the SCHUNK 305199 easy to install on a robot

Yes, the SCHUNK 305199 requires minimal integration effort and mounts flexibly into space-constrained cells with straightforward installation. Its compact angular design and light weight make it simple to retrofit into existing or new automation lines.

What parts can this gripper handle

The SCHUNK 305199 is designed for small component handling with a recommended workpiece weight of 0.2 kg. It handles delicate parts and molded components precisely using its pneumatic angular jaw motion.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In Stock800N Grip

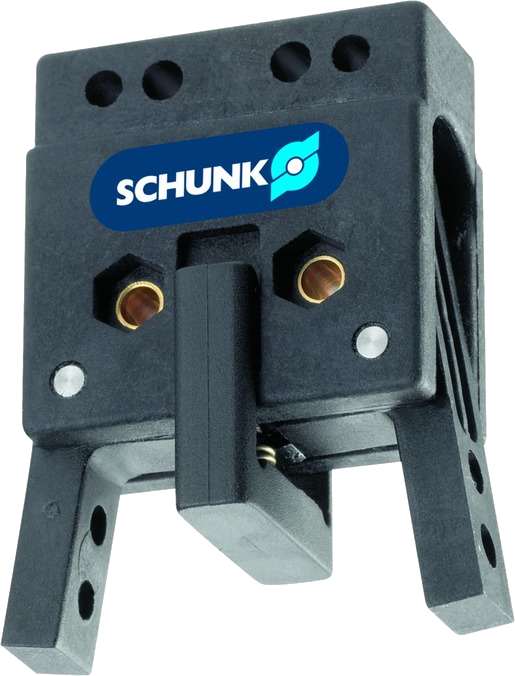

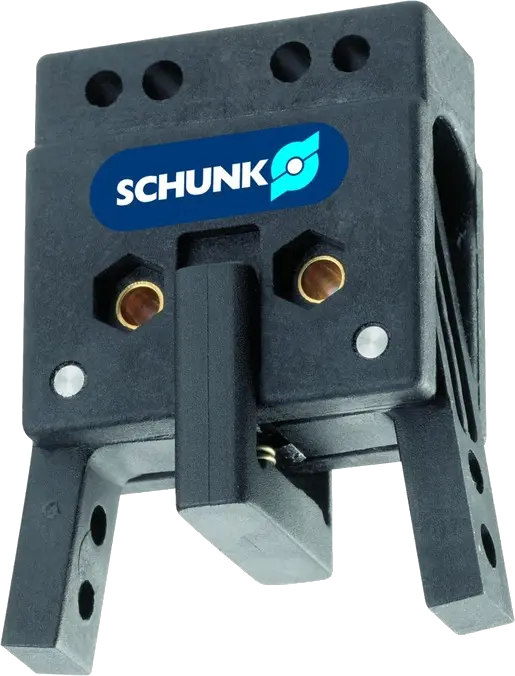

SCHUNK Pneumatic Gripper, 2-finger Angular, 225 N, 0.2 kg

Name: SCHUNK Pneumatic Gripper, 2-finger Angular, 225 N, 0.2 kg
Brand: SCHUNK
SKU: 3129
Price: 199.95 USD
Availability: InStock

SCHUNK GmbH & Co. KG

$199.95

SCHUNK pneumatic 2-finger angular gripper (part 305199) for precision handling of small components. Delivers 225 N gripping force with 0.1 mm repeatability, handles parts up to 0.2 kg, weighs 0.04 kg, and operates to 90°C. Ideal for compact assembly, molded component handling, and pick-and-place applications.

SCHUNK Pneumatic Gripper, 2-finger Angular, 225 N, 0.2 kg

SCHUNK 305199 pneumatic angular gripper is a compact two-finger gripper designed for small component handling in industrial automation, assembly, and pick-and-place operations requiring reliable cycle time and lightweight tools.

Gripping force: 225 N
Repeatability: 0.1 mm
Recommended workpiece weight: 0.2 kg
Part number: 305199

Features and Benefits:

Lightweight, compact gripper suitable for mounting in space-constrained cells, weighing just 0.04 kg, significantly lighter than standard 2-finger grippers, which aids fast system response and reduced robotic payload burden.
Pneumatic actuation and angular jaw motion provide precise performance for delicate or rapid assembly, molded part handling, and tasks where repeatability is critical.
Compatible with SCHUNK series automation systems and flexible mounting for ease of integration in new or retrofit lines.
Operates in challenging environments up to 90°C and supports process quality where thermal stability is needed.

Industrial Application Suitability:

SCHUNK 305199 compact pneumatic angular gripper is optimal for machine tending, high-speed pick-and-place, and small-parts assembly, especially in setups prioritized for weight-saving and precision. For alternative gripping technologies or applications requiring parallel motion, browse our parallel grippers or see more small component handling solutions for comparison.

Weight0.04 kg

Max Gripping force225 N

Recommended workpiece weight: 0.2 kg
Max. ambient temperature: 90 ℃
Repeatability: 0.1 mm
Payload: 0.2 kg
Gripping Force: 225 N
Operating temperature: up to 90°C
Mounting Interface: Flexible

Grips small components precisely and fast, compact angular design for tight spaces
Mounts flexibly into space-restricted cells, minimal integration effort required
Delivers 225 N gripping force with 0.1 mm repeatability for reliable assembly
Weighs just 0.04 kg, cuts robot payload and boosts cycle speed significantly
Handles delicate parts and molded components with pneumatic angular jaw precision
Operates reliably up to 90 degrees Celsius in demanding environments

: Pneumatic grippers like the SCHUNK 305199 are used for precise and fast handling of small components in industrial automation, assembly, and pick-and-place operations. They grip delicate parts and molded components with repeatable accuracy suitable for high-speed production lines.
: The SCHUNK 305199 delivers 225 N of gripping force with 0.1 mm repeatability, making it reliable for handling small components in assembly applications. The compact angular design fits into space-restricted cells while maintaining consistent grip performance.
: The SCHUNK 305199 weighs just 0.04 kg, significantly lighter than standard 2-finger grippers. This minimal weight cuts robot payload demand and boosts cycle speed in automated systems.
: The SCHUNK 305199 operates reliably in demanding environments up to 90 degrees Celsius. This thermal stability makes it suitable for assembly lines where process quality depends on consistent performance across temperature ranges.
: Yes, the SCHUNK 305199 requires minimal integration effort and mounts flexibly into space-constrained cells with straightforward installation. Its compact angular design and light weight make it simple to retrofit into existing or new automation lines.
: The SCHUNK 305199 is designed for small component handling with a recommended workpiece weight of 0.2 kg. It handles delicate parts and molded components precisely using its pneumatic angular jaw motion.

Pneumatic Angular Gripper vs Parallel or Vacuum Grippers:

Choose this SCHUNK angular gripper when you need compact, lightweight precision for small parts in space-restricted robot cells. It competes with parallel pneumatic grippers and vacuum systems, but excels where angular jaw motion and minimal payload impact matter most.

For parts under 0.2 kg in tight mounting spaces, the 0.04 kg weight frees robot payload for faster cycle times and heavier end-of-arm tools.
When repeatability under 0.1 mm is required for assembly or inspection of delicate molded components, the pneumatic angular design handles them without deformation.
In high-speed pick-and-place lines where integration speed matters, flexible mounting and minimal air-line setup reduce downtime compared to vacuum or electric alternatives.
For environments up to 90 degrees Celsius, pneumatic actuation remains stable and reliable where thermal drift affects electric or vacuum systems.
