Can the ALTRATEC LAT Flex be mounted in different orientations?

The ALTRATEC LAT Flex mounts upright, suspended, or rotated 90 degrees to fit your production layout. This flexible mounting allows integration into various automation architectures without redesign.

What is the maximum payload capacity of the LAT Flex circulating conveyor?

The ALTRATEC LAT Flex handles a total payload of 225 kg across the circulating system, with individual workpiece carrier segments weighing up to 5 kg each. This capacity supports multi-track layouts for large components in high-volume manufacturing.

How accurate is the positioning on the ALTRATEC LAT Flex model?

The LAT Flex achieves precise positioning accuracy of plus or minus 0.3 mm in X/Y axes and plus or minus 0.5 mm in Z axis using digital I/O-controlled electromagnetic stoppers. This precision suits assembly lines and packaging stations requiring repeatable placement.

Does the LAT Flex require compressed air?

No, the ALTRATEC LAT Flex uses a 90-watt electric motor powered by 230 V or 400 V, eliminating compressed air dependency entirely. This design aligns with electric conveyor system standards and reduces infrastructure costs.

Is the ALTRATEC LAT Flex safe to operate without guards?

The open 40 mm enclosure-free design makes the LAT Flex worker-safe and removes the need for protective enclosures. This reduces installation complexity while maintaining safe operation in production environments.

How long can the system span and what speed does it run?

The ALTRATEC LAT Flex spans up to 25 meters at a conveyor speed of 8 m/min, providing reliable throughput for automotive, electronics, and plastics production. The system connects to existing automation via digital I/O control and arrives assembly-ready.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockEnclosure-Free

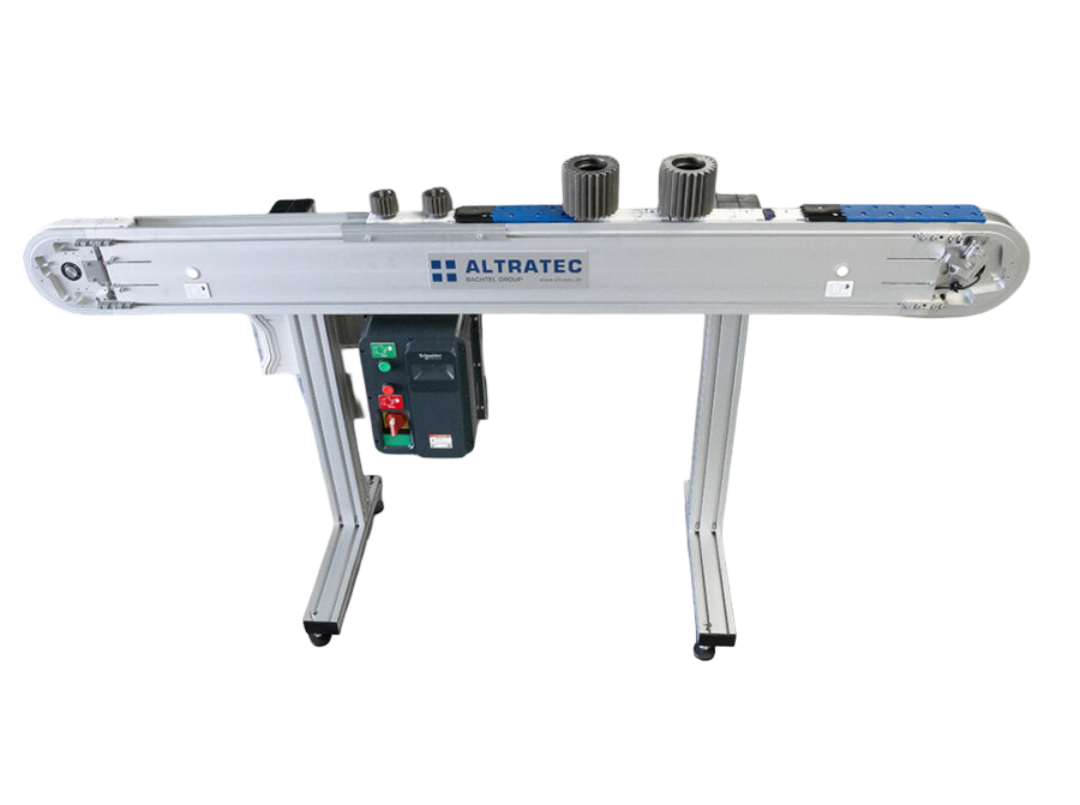

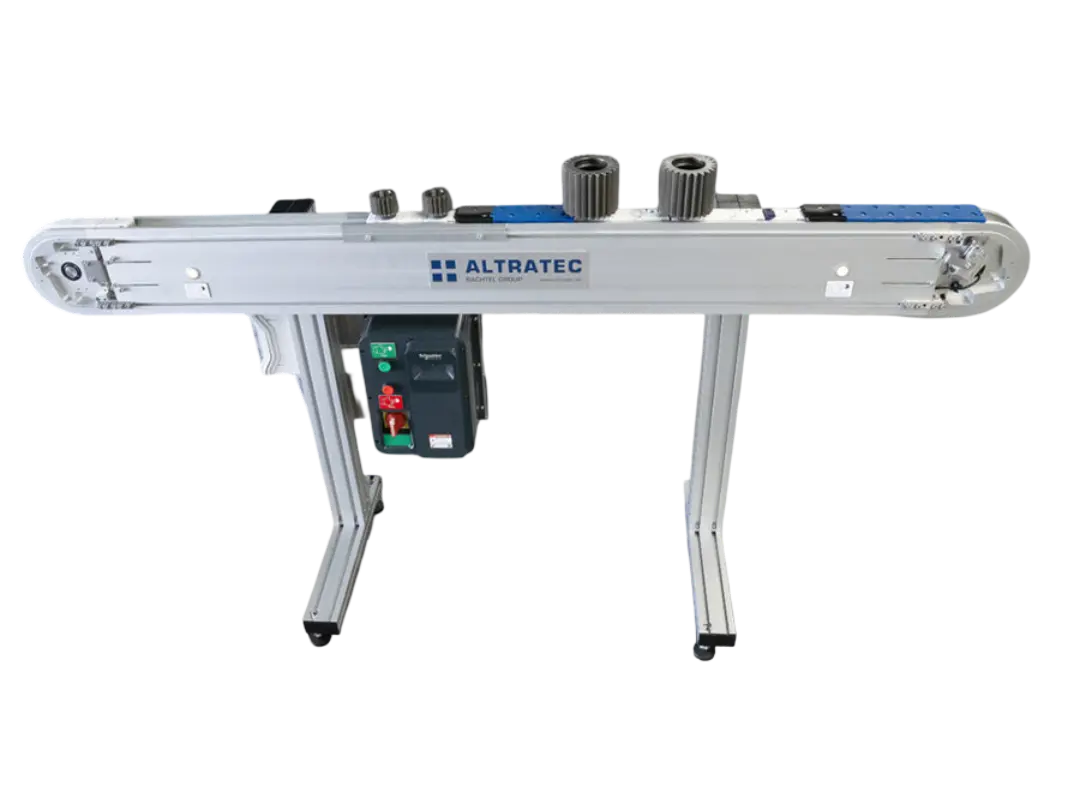

ALTRATEC LAT Flex Circulating Conveyor, 8 m/min, Enclosure-free

Name: ALTRATEC LAT Flex Circulating Conveyor, 8 m/min, Enclosure-free
Brand: ALTRATEC
SKU: 3592
Price: 12500 USD
Availability: InStock

ALTRATEC Automation GmbH

$12,500.00

Modular circulating conveyor for workpiece carrier transport at 8 m/min, 40 mm wide, up to 25 m long. Handles 5 kg per segment with ±0.3 mm positioning accuracy. 90 W electric motor (230/400 V), no pneumatics or enclosure needed. Mounts upright, suspended, or rotated for assembly, packaging, and material flow in automotive, electronics, and plastics production.

ALTRATEC LAT Flex Circulating Conveyor is an electric automation conveyor system built for manufacturing and material handling in production settings.

Key Features:

Conveyor speed: 8 m/min
System length: Up to 25 meters
Total payload capacity: 225 kg
Workpiece carrier segment weight: 5 kg max
System weight: 66 kg
Mounting options: upright, suspended, 90-degree rotated
Powered by a 90-watt electric motor, 230 V or 400 V

Design and Operation:

The ALTRATEC LAT Flex model delivers modular circulating conveyor performance for assembly lines, packaging stations, and automated material flow solutions. The 40 mm wide enclosure-free build offers safe operation and efficient integration with existing automation architectures. Digital I/O-controlled electromagnetic stoppers provide precise positioning accuracy of ±0.3 mm in X/Y and ±0.5 mm in Z axes.

Applications in Manufacturing:

Suitable for automotive, electronics, and plastics production, the LAT Flex enables conveyor solutions for transporting workpiece carriers, supporting multi-track layouts for large components like bumpers or instrument panels. No compressed air requirements enable compatibility with electric conveyor system standards.

When to Choose LAT Flex:

Choose the ALTRATEC LAT Flex when a modular conveyor system company solution is needed for flexible mounting, worker-safe operation without protective enclosures, and reliable throughput in high-volume manufacturing environments. Designed for automation conveyor systems seeking efficient electric conveyor options.

Weight0.66 kg

Payload225 kg

Jaw Width: 40 mm
Workpiece Carrier Capacity: 5 kg per segment
Speed: 8 m/min
Positioning Accuracy: ±0.3 mm X/Y, ±0.5 mm Z
Power Supply: 230 V or 400 V
Power Consumption: 90 W
Enclosure: Enclosure-free
Total System Weight: 66 kg
Mounting: Upright
Suspended
90-degree rotated

Spans up to 25 m at 8 m/min, moving 5 kg per segment
Handles 225 kg total payload across circulating system
90-watt electric motor eliminates compressed air dependency, 230 V or 400 V
Positions precisely to ±0.3 mm X/Y and ±0.5 mm Z with electromagnetic stoppers
Open 40 mm design removes need for protective enclosures, worker-safe
Mounts upright, suspended, or 90-degree rotated for flexible integration
Plugs into existing automation via digital I/O control, assembly-ready

: The ALTRATEC LAT Flex mounts upright, suspended, or rotated 90 degrees to fit your production layout. This flexible mounting allows integration into various automation architectures without redesign.
: The ALTRATEC LAT Flex handles a total payload of 225 kg across the circulating system, with individual workpiece carrier segments weighing up to 5 kg each. This capacity supports multi-track layouts for large components in high-volume manufacturing.
: The LAT Flex achieves precise positioning accuracy of plus or minus 0.3 mm in X/Y axes and plus or minus 0.5 mm in Z axis using digital I/O-controlled electromagnetic stoppers. This precision suits assembly lines and packaging stations requiring repeatable placement.
: No, the ALTRATEC LAT Flex uses a 90-watt electric motor powered by 230 V or 400 V, eliminating compressed air dependency entirely. This design aligns with electric conveyor system standards and reduces infrastructure costs.
: The open 40 mm enclosure-free design makes the LAT Flex worker-safe and removes the need for protective enclosures. This reduces installation complexity while maintaining safe operation in production environments.
: The ALTRATEC LAT Flex spans up to 25 meters at a conveyor speed of 8 m/min, providing reliable throughput for automotive, electronics, and plastics production. The system connects to existing automation via digital I/O control and arrives assembly-ready.

Electric circulating conveyor versus pneumatic or belt-only systems:

The ALTRATEC LAT Flex is a modular electric circulating conveyor built for production lines where you need precise part positioning and flexible mounting without compressed air infrastructure. Choose it over fixed belt or pneumatic systems when layout adaptability and worker safety matter.

For production cells under 25 m in length, the system handles up to 225 kg total payload at 8 m/min, eliminating the need for separate air compressors and reducing energy consumption.
On open assembly lines with workers nearby, the 40 mm enclosure-free design removes the need for protective guarding, improving accessibility and safety compliance.
When parts require stops mid-line, electromagnetic stoppers achieve ±0.3 mm X/Y and ±0.5 mm Z precision, supporting automated pick-and-place or assembly sequencing tasks.
For automotive bumpers, instrument panels, or other large components on multi-track layouts, flexible upright, suspended, or 90-degree rotated mounting adapts to tight shop floors without redesign.
In electronics or plastics production, the 230 V or 400 V electric motor plugs directly into existing automation control via digital I/O, reducing integration time.
