What is the 7th axis on the RBTX Basic 7th Axis Linear Motion System?

The 7th axis is a linear motion system that moves the UR20 or UR30 robot along a 2,000 mm track, extending the robot's work coverage beyond a fixed mounting point. This adds horizontal linear motion to the robot's six rotational axes, allowing it to reach multiple work zones and stations.

Can I mount a UR20 or UR30 directly to the RBTX Basic 7th Axis?

Yes, the RBTX Basic 7th Axis is designed to mount UR20 or UR30 robot arms directly with an industrial mounting interface included. No adapter plates or special brackets are needed for these models.

What is the travel length and speed of this linear axis?

The RBTX Basic 7th Axis offers 2,000 mm of travel length with linear motion speeds up to 600 mm/s, allowing fast coverage across extended work zones.

Is the RBTX Basic 7th Axis rated for dusty industrial environments?

Yes, it carries an IP40 protection rating, which protects against industrial dust and debris larger than 1 mm and is suitable for standard automation cells and typical industrial settings.

What applications benefit from adding a 7th axis to Universal Robots?

A 7th axis is useful for palletizing, machine tending, long welding runs, and material handling where the robot needs to move between multiple stations or work zones that exceed a fixed-base robot's reach.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockExtended Reach

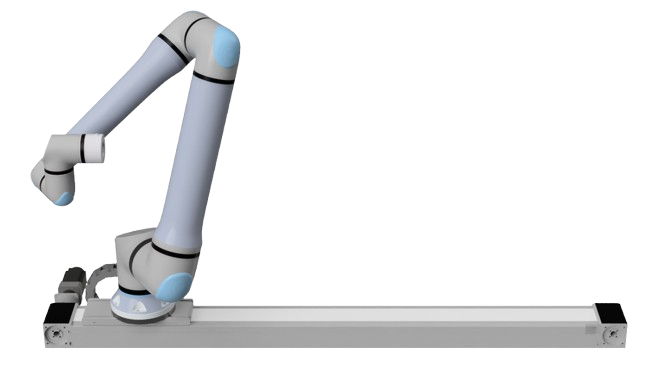

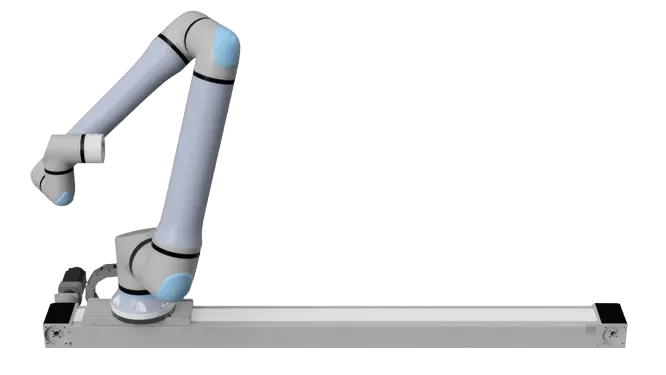

RBTX Basic 7th Axis Linear Motion System, Universal Robots 20-30

Name: RBTX Basic 7th Axis Linear Motion System, Universal Robots 20-30
Brand: Universal Robots
SKU: 3420
Price: 21100 USD
Availability: InStock

RBTX

$21,100.00

Seventh-axis linear motion system for Universal Robots 20-30 arms. 2,000 mm rail extends working envelope at up to 600 mm/s for machine tending, welding, and palletizing across multiple stations. IP40 rated for industrial environments.

What is the RBTX Basic 7th Axis Linear Motion System, Universal Robots 20-30:

RBTX Basic 7th Axis Linear Motion System, Universal Robots 20-30 is an industrial linear axis solution designed for Universal Robots UR20 and UR30 collaborative robots, offering extended reach and flexible motion for automated applications.

Headline Specifications:

Travel length: 2,000 mm linear axis
Motion speed: up to 600 mm/s
Protection: IP40 rated for typical industrial settings
Mounts UR20 or UR30 robot arms

Frequently Asked Questions:

What does a 7th axis linear motion system add to Universal Robots? Integrating a seventh-axis linear motion system expands the coverage area beyond a fixed-base setup, allowing the robot to move along the axis and tend machines, handle palletizing, or perform long welding or material runs efficiently.
How does this linear axis compare to a fixed-base robot? With a 2,000 mm travel, the axis linear system allows UR20 or UR30 robots to reach multiple stations and zones, overcoming the limited reach of a fixed-base configuration.
When should I specify a 7th axis for Universal Robots? Choose a Universal Robots seventh axis solution when cycle times, work zone layout, or coordinated motion needs justify using linear motion systems for automation flexibility.
What environments suit the RBTX Basic 7th Axis Linear Motion System? The IP40 rating supports industrial usage, protecting against solids larger than 1 mm, making it suitable for standard automation cells.

Comparisons and Alternatives:

Compared to alternative linear motion systems and fixed-base Universal Robots arms, the RBTX Basic 7th Axis offers greater reach and movement across multiple work zones. Buyers seeking higher payload or speed can review related linear axis solutions or compare with other motion systems in stock.

Availability and Purchase Information:

Buy RBTX Basic 7th Axis Linear Motion System, Universal Robots 20-30 online
Check price and in-stock status for instant order
Compatible with UR20 and UR30, industrial mounting interface included

Stroke Length000 mm / 2

Max. tracking speed600

System of protectionIP40

Reach: 2000 mm
Max speed: 600 mm/s
IP Rating: IP40
Compatibility: Universal Robots 20-30 series

Covers ground fast, 600 mm/s linear motion speed
Extends reach across work zones, 2,000 mm travel length
Mounts UR20 or UR30 robot arms directly
Withstands industrial dust and debris, IP40 rated protection

: The 7th axis is a linear motion system that moves the UR20 or UR30 robot along a 2,000 mm track, extending the robot's work coverage beyond a fixed mounting point. This adds horizontal linear motion to the robot's six rotational axes, allowing it to reach multiple work zones and stations.
: Yes, the RBTX Basic 7th Axis is designed to mount UR20 or UR30 robot arms directly with an industrial mounting interface included. No adapter plates or special brackets are needed for these models.
: The RBTX Basic 7th Axis offers 2,000 mm of travel length with linear motion speeds up to 600 mm/s, allowing fast coverage across extended work zones.
: Yes, it carries an IP40 protection rating, which protects against industrial dust and debris larger than 1 mm and is suitable for standard automation cells and typical industrial settings.
: A 7th axis is useful for palletizing, machine tending, long welding runs, and material handling where the robot needs to move between multiple stations or work zones that exceed a fixed-base robot's reach.

Linear axis on rails versus fixed-base robot arm:

The RBTX Basic 7th Axis adds a 2,000 mm travel rail to UR20 or UR30 robots, letting them move across multiple work stations and zones instead of staying in one fixed spot. Choose this when your workflow spans a long production line or requires the robot to tend multiple machines in sequence.

For palletizing or long assembly lines, the 2,000 mm travel eliminates the need for multiple fixed robots or manual repositioning between stations.
On shared production cells with machines 2+ metres apart, the integrated axis moves the robot quickly (600 mm/s) between tasks without stopping the entire cell.
In welding or material-handling tasks that run the length of a table or conveyor, one mounted UR20 or UR30 covers ground faster than a worker or repositioning the arm manually.
IP40 protection handles typical factory dust and debris, so it fits standard automation environments without extra guarding or climate control.
