In Stock
3-axis delta robot | 3 DOF | 360mm | 5kg
igus®
$14,692.50

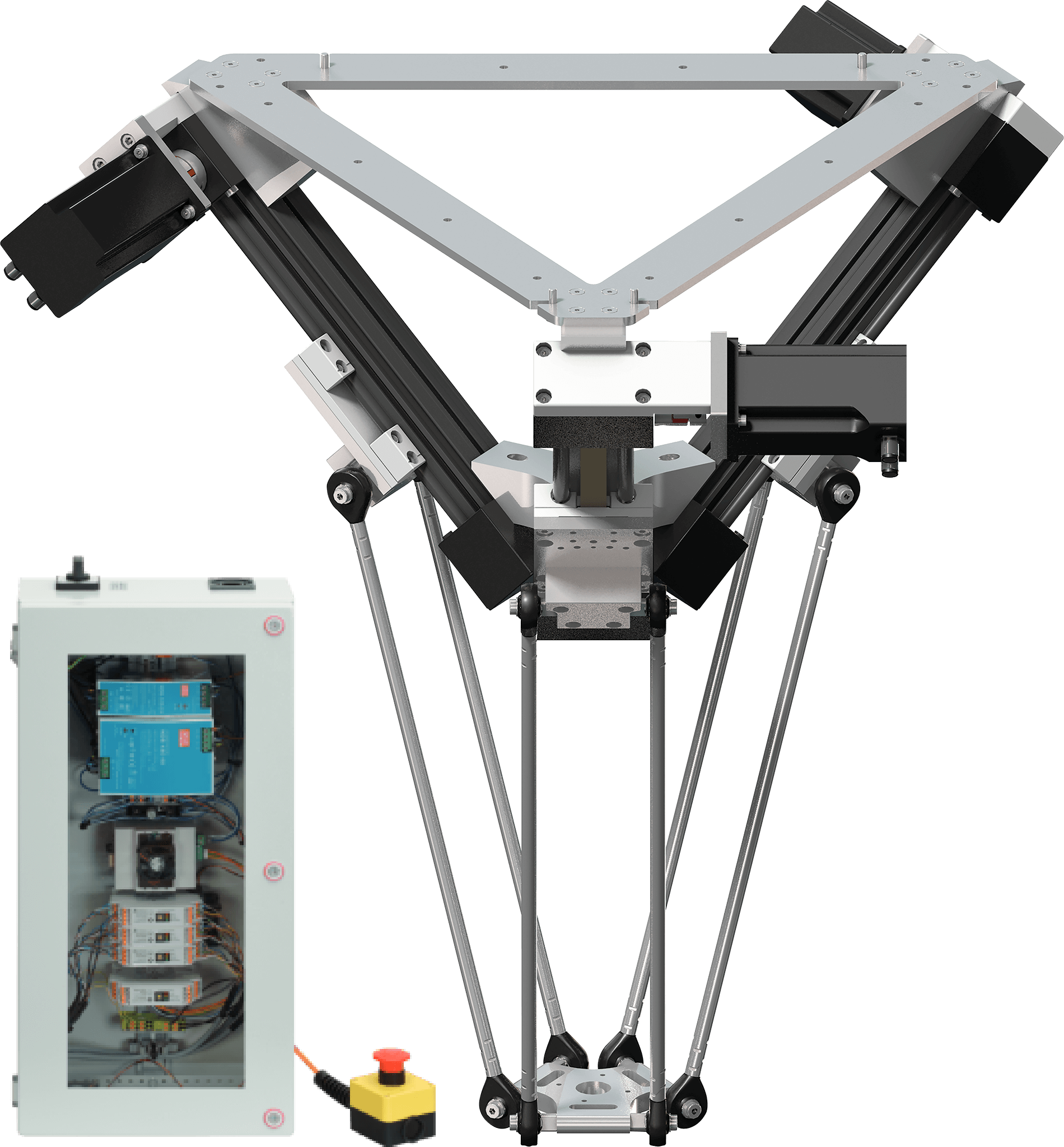

High-Speed Delta Robot for Precise Pick & Place Tasks The drylin® Delta Robot DLE-DR-0001 offers ±0.5 mm repeatability and up to 60 picks/min within a 360 mm workspace.
Product Description
The drylin® Delta Robot DLE-DR-0001 offers ±0.5 mm repeatability and up to 60 picks/min within a 360 mm workspace.
With 5 kg payload, 3 m/s speed, and 60 m/s² acceleration, it's built for fast and accurate operations.
Controlled via the Dryve D1 motor controller – supporting Modbus TCP, CANopen, and digital/analog I/Os.
Integration is seamless and requires no software installation.
Optional accessories like initiator kits and calibration pins simplify setup.
Recommended for pick & place, sorting, packaging, and lab automation.
Perfect for industrial users, research labs, and SMEs seeking efficient, low-maintenance automation.
The Delta robots from igus® are available as 2-axis or 3-axis variants.
They are suitable for pick and place, conveyor belt picking and stacking tasks in three-dimensional space.
In conjunction with a gripper or suction cup and a vision system, bin picking tasks can be implemented very quickly.
You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen.
On the PC the robot can be programmed via a graphical user interface.
With the handheld you can control the robot with a joystick and start programs via the touch screen.
In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld.
With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.
With 5 kg payload, 3 m/s speed, and 60 m/s² acceleration, it's built for fast and accurate operations.
Controlled via the Dryve D1 motor controller – supporting Modbus TCP, CANopen, and digital/analog I/Os.
Integration is seamless and requires no software installation.
Optional accessories like initiator kits and calibration pins simplify setup.
Recommended for pick & place, sorting, packaging, and lab automation.
Perfect for industrial users, research labs, and SMEs seeking efficient, low-maintenance automation.
The Delta robots from igus® are available as 2-axis or 3-axis variants.
They are suitable for pick and place, conveyor belt picking and stacking tasks in three-dimensional space.
In conjunction with a gripper or suction cup and a vision system, bin picking tasks can be implemented very quickly.
You can control the robot either from your Windows 10 PC or from the optional handheld with touch screen.
On the PC the robot can be programmed via a graphical user interface.
With the handheld you can control the robot with a joystick and start programs via the touch screen.
In addition, you can also connect a gamepad to your Windows PC for control as an alternative to the handheld.
With this handheld, the robot runs autonomously without the computer after programming via the Windows PC.
Weight
5 kg
Dimensions
N/A
Part Number
DLE-DR-0002-0004-00-0
RBTX SKU
RBTX-IGUS-0037
Working Space Diameter
360 mm
DOF
3
Max Payload
5 kg
Max Speed
3
Repeatability
0.5 mm
Protection Class
-
Weight
15 kg
