What is the repeatability of the IPR MGS Series gripper?

The IPR MGS Series achieves 0.02 mm repeatability with roller-guided jaw movement, making it suitable for precision handling of small components. This high accuracy enables reliable micro-assembly and fixturing tasks.

How much weight can the IPR MGS Series gripper handle?

The IPR MGS Series can handle workpieces up to 0.19 kg and grips with a maximum force of 37.5 N. The gripper itself weighs only 0.058 kg, keeping overall robot payload impact minimal.

What are the dimensions of the IPR MGS Series gripper?

The IPR MGS Series has a compact footprint of 32 x 17.9 x 27 mm with a maximum finger length of 32 mm, allowing installation in confined assembly cells and tight-space manipulation environments.

How fast does the IPR MGS Series gripper cycle?

The IPR MGS Series cycles in 0.017 seconds for both open and close movements, delivering pneumatic speed for high-volume production environments.

What operating conditions does the IPR MGS Series gripper require?

The IPR MGS Series operates in ambient temperatures from 5 to 80°C and requires a pneumatic pressure range of 3 to 8 bar. Each jaw provides a 3 mm stroke for gripping small parts.

Not sure it fits your cell? Book 20 minutes with an engineer who has specified this part before.

Book a call

Ordered the wrong size or interface? Here is exactly how sending it back works.

In StockPneumatic Precision

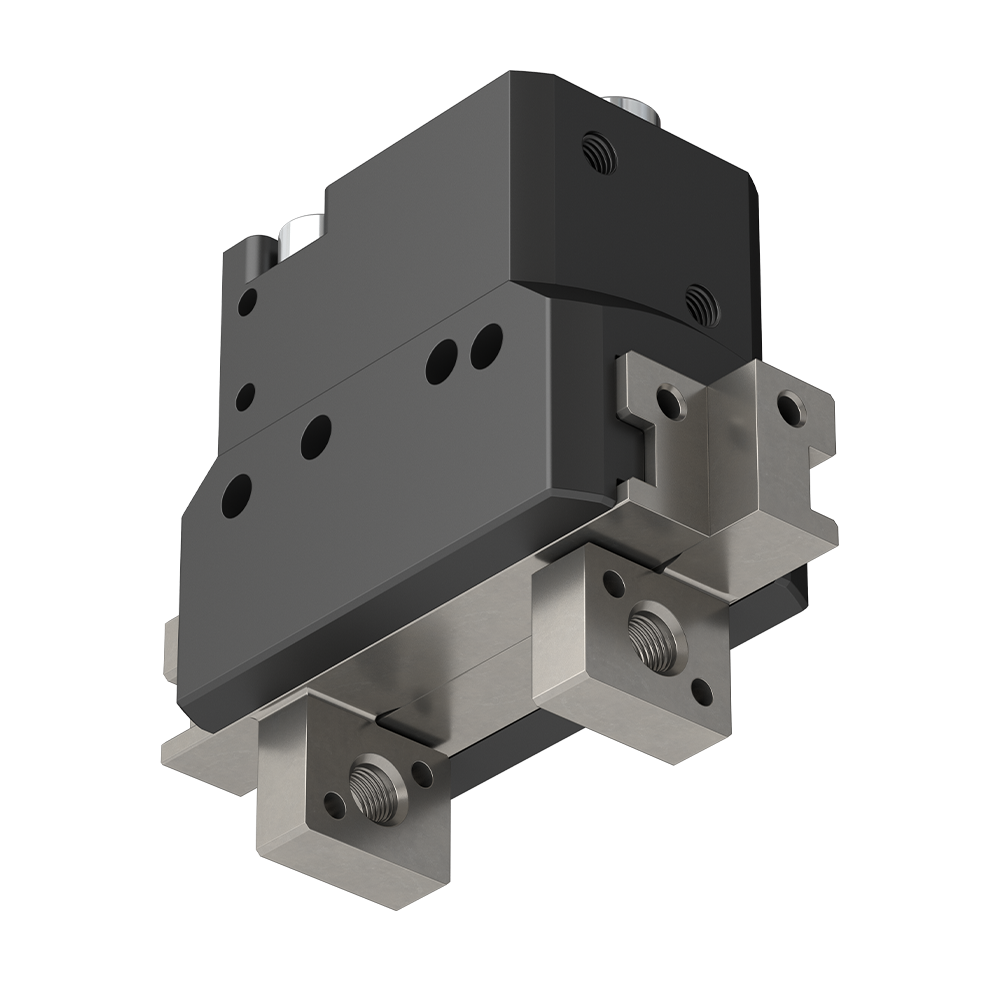

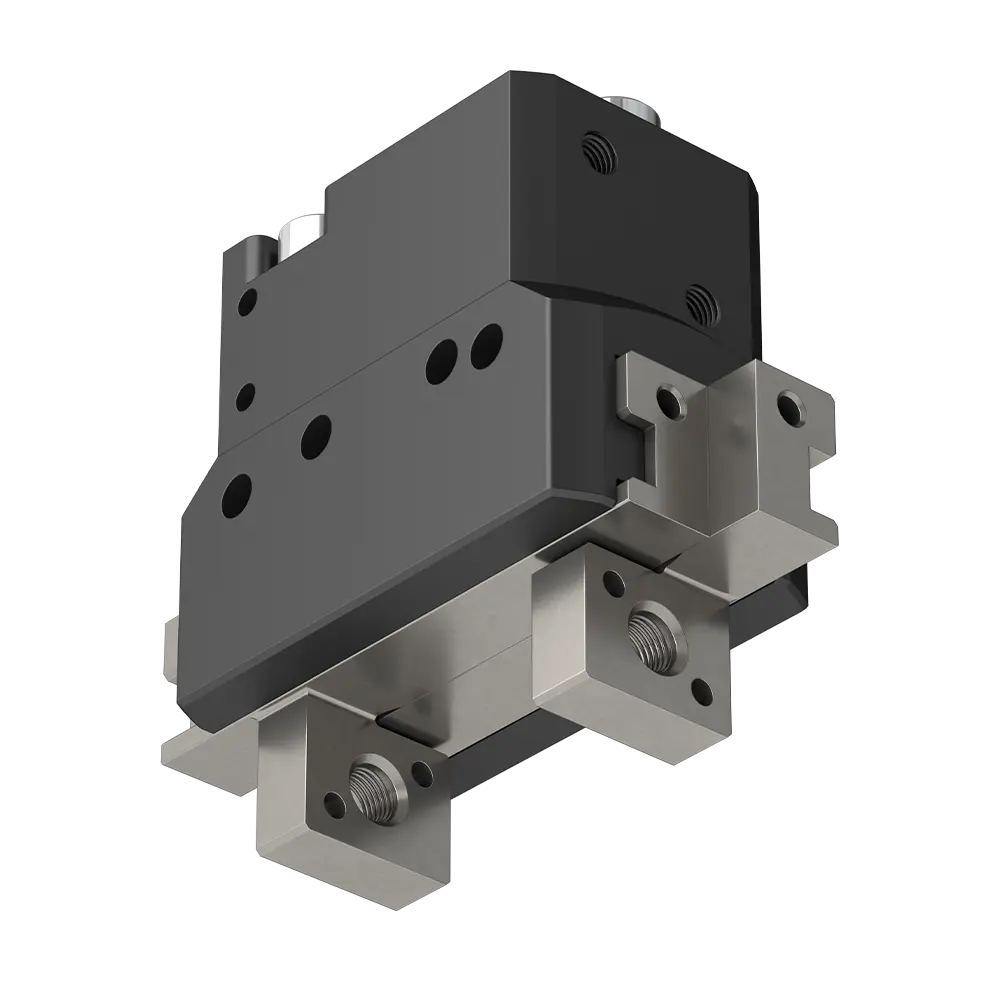

IPR MGS Series 2-Jaw Pneumatic Parallel Gripper

Name: IPR MGS Series 2-Jaw Pneumatic Parallel Gripper
Brand: IPR
SKU: 3354
Price: 599 USD
Availability: InStock

IPR – Intelligente Peripherien für Roboter GmbH

$599.00

Compact pneumatic 2-jaw parallel gripper with 37.5 N gripping force and 0.02 mm repeatability, built for small-part handling in space-constrained automation. Weighs just 58 g, delivers 3 mm jaw stroke per side, and operates at 6 bar nominal pressure with cycle times of 17 ms open/close. Ideal for electronics assembly, precision fixturing, and micro-handling where low mass and high accuracy matter.

IPR MGS Series 2-Jaw Pneumatic Parallel Gripper Overview:

The IPR MGS Series 2-jaw pneumatic parallel gripper is a compact end effector developed for precise handling of small and lightweight components in automation cells and micro-assembly stations.

Key Features:

Jaw Stroke: 3 mm per jaw
Maximum Gripping Force: 37.5 N
Recommended Workpiece Weight: up to 0.19 kg
Unit Weight: 0.058 kg
Max Ambient Temperature: 80°C
Repeatability: 0.02 mm with roller-guided jaw movement

Pneumatic Parallel Gripper Applications:

Electronics assembly
Precision fixturing
Laboratory automation
Fine mechanical manipulation

The MGS Series pneumatic parallel gripper integrates smoothly with end effectors and automation cells where space is limited and a low mass is required. Pneumatic actuation provides quick cycle times in high-volume production.

Advantages Compared to Other Grippers:

Compared to larger grippers, the MGS Series two jaw gripper enables installation in confined spaces and boosts process reliability on small parts. Its high repeat accuracy and robust roller-guided mechanism make it ideal for micro-handling tasks versus traditional fixtures.

Mounting and Integration:

Suitable for mounting in automation cells and compatible with precision automation equipment. Compact dimensions allow versatile installation in tight environments typical of small-parts assembly.

Next Steps:

Request a quote or view specifications to evaluate if the IPR MGS Series pneumatic parallel jaw gripper meets your automation requirements.

Weight0.058 kg

Stroke per jaw3 mm

Max Gripping force: 37.5 N
Recommended workpiece weight: 0.19 kg
Propulsion Method: Pneumatic
Max. ambient temperature: 80 ℃
Repeatability: 0.02 mm
Payload: 0.19 kg
Gripping Force: 37.5 N
Jaw Stroke: 3 mm
Operating temperature: 80°C

Handles small parts with 0.02 mm repeatability, roller-guided jaw movement
Grips with 37.5 N force, 3 mm stroke per jaw
Handles up to 0.19 kg workpieces, weighs just 0.058 kg
Cycles in 0.017 s open and close, pneumatic speed for high volume
Operates 5 to 80°C, 3 to 8 bar pressure range
Compact 32 x 17.9 x 27 mm footprint fits confined assembly cells
32 mm maximum finger length enables tight-space manipulation

: The IPR MGS Series achieves 0.02 mm repeatability with roller-guided jaw movement, making it suitable for precision handling of small components. This high accuracy enables reliable micro-assembly and fixturing tasks.
: The IPR MGS Series can handle workpieces up to 0.19 kg and grips with a maximum force of 37.5 N. The gripper itself weighs only 0.058 kg, keeping overall robot payload impact minimal.
: The IPR MGS Series has a compact footprint of 32 x 17.9 x 27 mm with a maximum finger length of 32 mm, allowing installation in confined assembly cells and tight-space manipulation environments.
: The IPR MGS Series cycles in 0.017 seconds for both open and close movements, delivering pneumatic speed for high-volume production environments.
: The IPR MGS Series operates in ambient temperatures from 5 to 80°C and requires a pneumatic pressure range of 3 to 8 bar. Each jaw provides a 3 mm stroke for gripping small parts.

Pneumatic parallel gripper for micro-assembly vs. larger or manual alternatives:

The IPR MGS Series is built for high-precision small-part handling in confined spaces, where standard larger grippers or manual fixturing cannot fit or deliver repeatability. Choose this gripper when tight geometry and lightweight workpieces demand both speed and accuracy.

For delicate electronics components under 0.19 kg in packed assembly cells, the 0.058 kg unit and 32 mm compact footprint free space for sensors and other tooling while maintaining 0.02 mm repeatability.
On high-volume production lines requiring sub-second cycle times, pneumatic actuation delivers 0.017 s open and close without electrical complexity.
For precision fixturing tasks where traditional clamps or manual gripping cause part damage or inconsistency, the roller-guided jaw mechanism and 37.5 N grip force hold small components securely across a 3 to 8 bar pressure range.
In laboratory and micro-assembly environments operating at variable temperatures, the 5 to 80°C operating range and proven pneumatic design support reliable, repeatable placement of components as small as a few millimeters.
