In Stock
2-Finger | Pneumatic | 4mm Stroke
ZIMMER GROUP GmbH
$495.90
Compact pneumatic 2‑jaw gripper for precise, robust and versatile small‑part handling.
Product Description

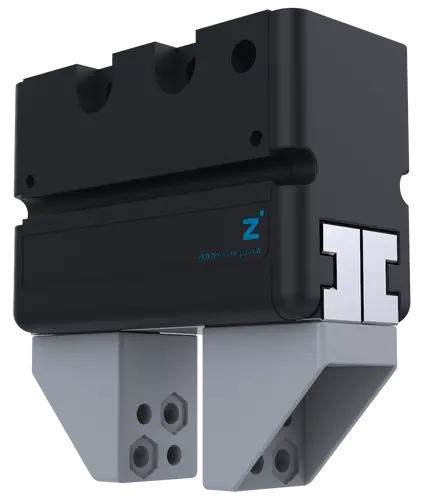

The GPP1104CO-00-A from Zimmer's GPP1000 series is a durable pneumatic parallel gripper designed for reliable handling of small components under demanding industrial conditions.
With its compact housing and strong guiding system, it delivers consistent gripping performance even in high-duty cycles.
Its large stroke in a small installation space allows flexible handling of varying part geometries, while the stable jaw mechanics ensure precise movement and repeatability.
The gripper supports easy installation thanks to multiple mounting interfaces and standardized sensor slots for simple position monitoring.
Its robust construction, optimized sealing and long service life make it suitable for continuous operation in automated environments.
The modular design enables fast adaptation through interchangeable fingers and optional accessories, allowing seamless integration into existing machine concepts.
Ideal for pick-and-place, assembly automation, loading/unloading processes and compact robotic applications.
With its compact housing and strong guiding system, it delivers consistent gripping performance even in high-duty cycles.
Its large stroke in a small installation space allows flexible handling of varying part geometries, while the stable jaw mechanics ensure precise movement and repeatability.
The gripper supports easy installation thanks to multiple mounting interfaces and standardized sensor slots for simple position monitoring.
Its robust construction, optimized sealing and long service life make it suitable for continuous operation in automated environments.
The modular design enables fast adaptation through interchangeable fingers and optional accessories, allowing seamless integration into existing machine concepts.
Ideal for pick-and-place, assembly automation, loading/unloading processes and compact robotic applications.
Weight
0 kg
Dimensions
N/A
Part Number
GPP1104CO-00-A
RBTX SKU
RBTX-ZIM-0013
Stroke per jaw
4 mm
Weight
0.17 kg
Max Gripping force
100 N
Recommended workpiece weight
0.55 kg
Propulsion Method
Pneumatic
Max. ambient temperature
60 ℃
Compact pneumatic 2‑jaw gripper for precise, robust and versatile small‑part handling.
Ideal for pick‑and‑place, assembly automation, loading/unloading processes and compact robotic applications.
