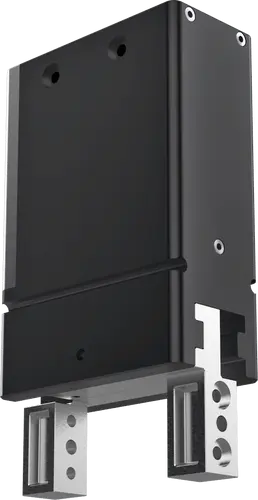

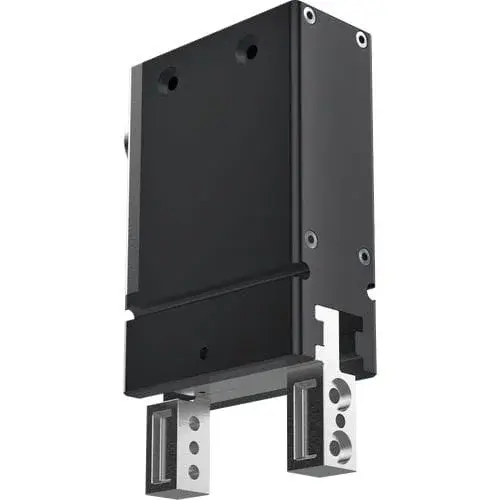

The ZIMMER GROUP GEP2013IO-00-B is a two-finger electric parallel gripper engineered for applications where installation space is limited but stroke and precision are critical.
This unit delivers 13 mm of stroke per jaw with a maximum gripping force of 360 N, while weighing just 0.55 kg.
Repeatability is specified at 0.02 mm, supporting accurate positioning in assembly and handling tasks.
The gripper uses a brushless DC motor with helical worm gear and self-locking mechanism, providing secure part retention even during power interruption.
Cross-roller guided jaws enable low-friction, precise movement.
Gripping force is adjustable, allowing the unit to handle both delicate and varied components safely.
The recommended maximum workpiece weight is 2.1 kg.
Integration is supported through standard digital I/O control, with magnetic-field sensors providing position feedback.
Removable centering sleeves facilitate rapid finger alignment during setup or changeover.
The gripper can be mounted from multiple sides to accommodate different machine layouts.
It is rated IP40 and certified for cleanroom use, with a maximum ambient temperature of 60 °C.
This gripper suits flexible part handling, small assembly operations, and automation environments where electric actuation, high stroke, and compact dimensions are required.
